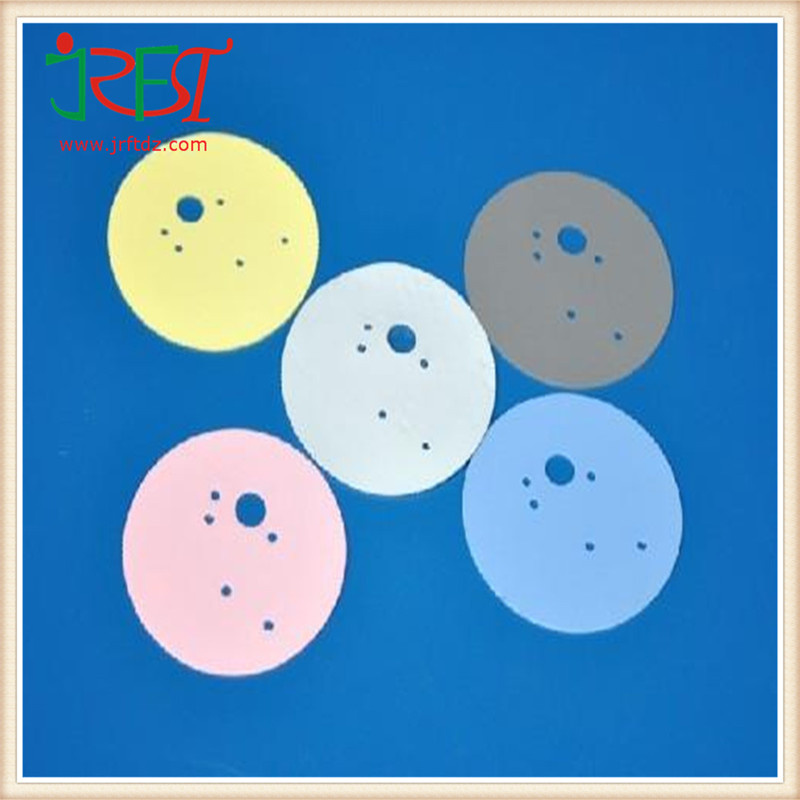

Soft Silicone Thermal Interface Material Gap Filler Pad for LED

Prod Model:	PM150
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Hardness:	20+-5(Shore a)
Size:	Customize
Thickness:	0.5mm
Thickness Tolerance:	0.08+-0.01 Mm
Thermal Conductivity:	1.2W/M-K
Specific Gravity:	2.05
Flame Rating:	U.L94
Type:	Insulation Sheet
Chemistry:	Organic Insulation
Material:	Silicone
Application:	Electronic / LED / Laptop
Thermal Rating:	-50+200
Maximum Voltage:	4.5kv
Color:	Blue / Grey / Pink /Yellow
Brand:	Jrft

Product Description

Soft silicone thermal interface material Gap Filler Pad for LED

Specifications

1. High thermal conductivity
2. low thermal resistance
3. Stable performance
4. Low hardness
5. Easy to use

Applications:
1. LED lighting, lighting equipment
2. Household appliances, LCD display
3. Semiconductor and the radiating fin between
4. Communication product, intelligent mobile phone, tablet computer
5. Desktop computer, notebook and other portable computer
6. Large power supply etc.
Product Details :

Thermal Gap Filler Pad has excellent thermal conductivity and electrical insulation performance, in addition , it can meet the requirements of heat conducting and insulating radiating occasions with higher. At the same time, this product has the self adhesive, simple and convenient application. It's using silica gel itself the soft and elastic characteristics , place in the power heating device and heat dissipating structure parts, make the heat generated by the power module , effectively transmit to radiating parts, cooling system.


Test Item	Product	Test  Method
Model NO.	PM150	--
Thickness	0.3~10mm	ASTM D 347
Color	Blue / Grey	Visual
Continuous Use Temperature	-50~200 °C	TAG + DMA
Dielectric Breakdown Votage	4.5KV  ↑	ASTM D 149
Hardness	20±5	ASTM D 2240
Thermal Conductivity	1.2 w/m.k	ASTM  D 5470

Performance and characteristics:
1.High thermal conductivity, heat transfer coefficient 2.6W/m-k
2.Stable performance , low thermal resistance, effectively improve  the heat transfer rate
3.Low hardness, its viscosity high, easy to use adhesive
4.By UL and V-O certification standards

Product specification:
Product standard size 310mm*310mm, 200mm*400mm according to customer needs cutting type The basic thickness 0.25mm*5.0mm, special size and thickness can be customized The product itself is slightly viscous, if need to strengthen the adhesive can be according to customer' requirement. Product color is mass production , if need special color can be adjusted according to the actual situation .
