| Prod Model: |
PV1-F |
| Cross-Sectional: |
2X1.5/2.5/4.0/6.0/10.0/16.0mm2 |
| Color: |
Red/Black |
| Approvals: |
TUV 2pfg1169 |
| Fire-Resistant Performance: |
IEC60332-1 |
| Rated Voltage: |
600/1000V AC |
| Cable Flexibility: |
Flexible |
| Free Sample: |
Available |
| Jacket Color: |
Prior Black or as Per Customer's Requirement |
| Conformity Standard: |
RoHS |
| Item Name: |
Solar Battery Panel System Cable |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Photovoltaic Station/Construction |
| Insulation Material: |
XLPE |
| Certification: |
TUV, PSE, SAA |
| Conductor Material: |
Tinned Copper |
| Sheath Material: |
XLPE |
| Material Shape: |
Round/Flat Cable |
| Range Of Application: |
Lsoh, Flame Retardant, Cold-Resistant |
| Brand: |
Jiukai/OEM |
Product Description

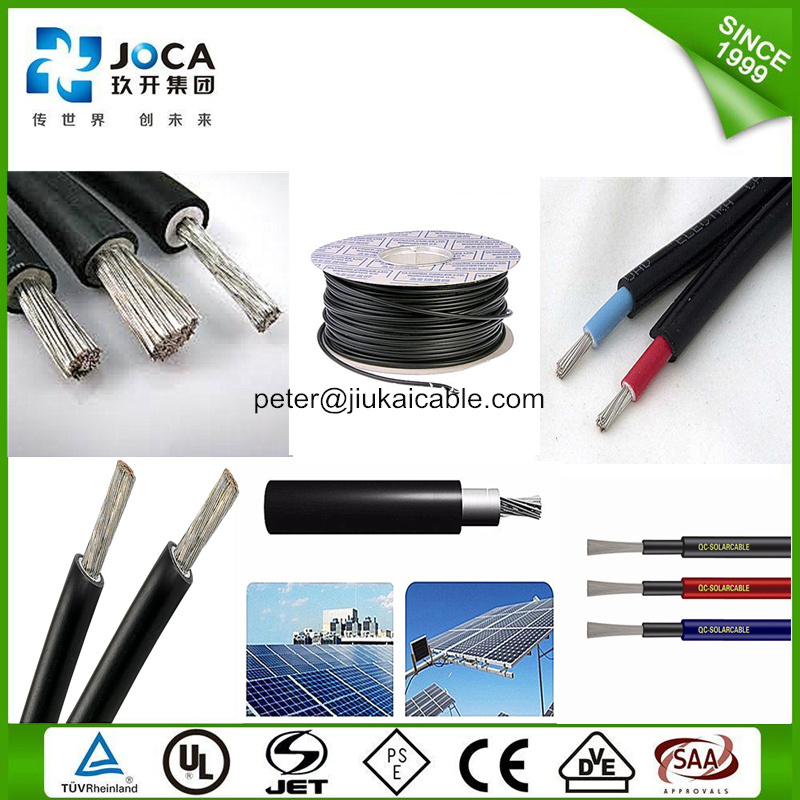

Solar Battery Panel System Cable TUV PV1-F 4mm 6mm PV Cable
Application:Double insulation,electron-beam cross linked cables for photovotaic power station.

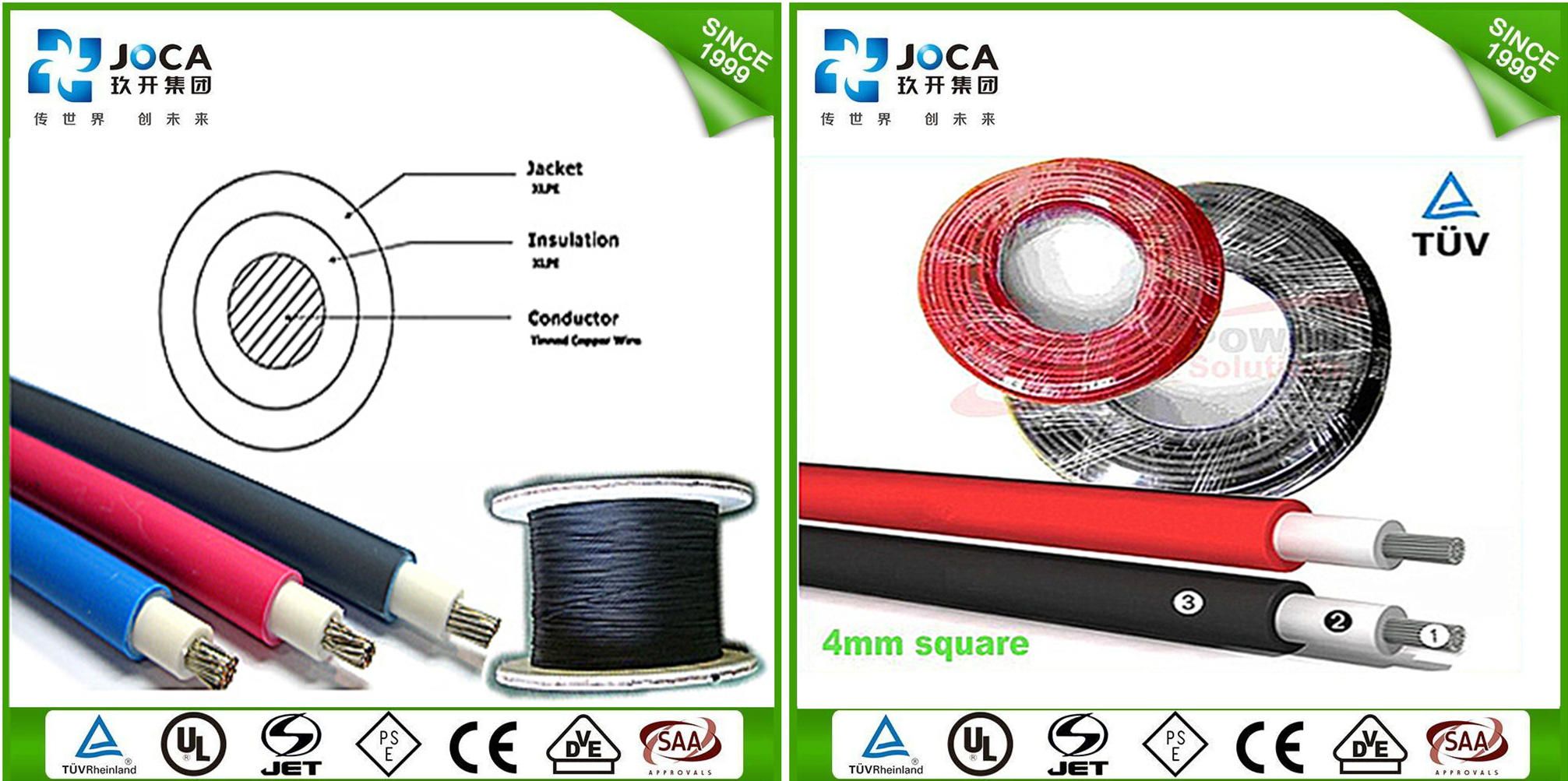

Construction:Tinned copper,according toVDE0295/IEC60228,Class5
Technical Specification:
1.Nominal Voltage:U0/U=600/1000V AC, 1000/1800V DC.
2.Test Voltage:6500V,50Hz,5Min.
3.Temperature Rating:45oC upto+125oC, -40oF upto+257oF
4.Ambient temperature:25years(TUV) -40oC upto+90oC, -40oF upto+194oF
5 Max.Short circuit temperature:280oC, +536oF
6. Bending Radius:Fixed installation>4X Occasionally moved>5X
Material Properties/Standards:
1.Fire-resistant performance:IEC60332-1
2.Smoke emission:IEC61034;EN50268-2, Low fire load:DIN51900
3.Approvals:TUV2PfG 1169/08.2007 PV1-F
4.Application Standards:UNE211 23;UNE20.460-5-52, UTE C 32-502
Dimensions&Parameters for Single Core Solar PV Cable| Construction | Conductor construction. | Conductor | Outer | Resistance Max. | Current Carring Capacity |
| nxmm2 | n/m | mm | mm | Ω/Km | A |
| 1X1.5 | 30/0.25 | 1.58 | 4.90 | 13.30 | 30 |
| 1x2.5 | 50/0.25 | 2.02 | 5.45 | 7.98 | 41 |
| 1x4 | 56/0.3 | 2.30 | 6.10 | 4.75 | 55 |
| 1x6 | 84/0.3 | 3.42 | 7.20 | 3.39 | 70 |
| 1x10.0 | 142/0.3 | 4.56 | 9.00 | 1.95 | 98 |
| 1x16.0 | 228/0.3 | 5.60 | 10.20 | 1.24 | 132 |
| 1x25.0 | 361/0.3 | 6.95 | 12.00 | 0.795 | 176 |
| 1x35.0 | 525/0.3 | 8.74 | 13.80 | 0.565 | 218 |
| 1x50.0 | 720/0.3 | 9.20 | 14.80 | 0.393 | 280 |
| 1x70.0 | 988/0.3 | 11.00 | 16.90 | 0.277 | 350 |
| 1x95.0 | 1349/0.3 | 12.50 | 18.70 | 0.21 | 410 |
| 1x120.0 | 1691/0.3 | 14.20 | 20.70 | 0.164 | 480 |
Dimensions&Parameters for Twin Core Solar PV Cable| Construction | Conductor Construction | Insulation Thickness | Sheath Thickness | Outer | Resistance Max. | Current Carring Capacity | Approx Weight |
| nxmm2 | n/m | mm | mm | mm | Ω/Km | A | Kg/Km |
| 2x1.5 | 30/0.25 | 0.7 | 0.8 | 8.3±0.2 | 13.3 | 30 | 72 |
| 2x2.5 | 50/0.25 | 0.7 | 0.8 | 9.2±0.2 | 7.98 | 41 | 94 |
| 2x4.0 | 56/0.3 | 0.7 | 0.8 | 12.0±0.2 | 4.75 | 55 | 142 |
| 2x6.0 | 84/0.3 | 0.8 | 0.9 | 13.5±0.2 | 3.39 | 70 | 200 |
| 2x10.0 | 142/0.3 | 0.9 | 1.1 | 17.6±0.2 | 1.95 | 98 | 290 |
| 2x16.0 | 228/0.3 | 1.1 | 1.1 | 19.8±0.2 | 1.24 | 132 | 430 |
Advantages of Solar PV Cable1.Electron-beam cross-linked compounds
2.UV,ozone and hydrolysis resistant
3.High temperature resistant,the materials does not melt or flow
4.Good cold Flexibility
5.Very long service life>25years at 90oC
6.Compatible to all popular connectors
