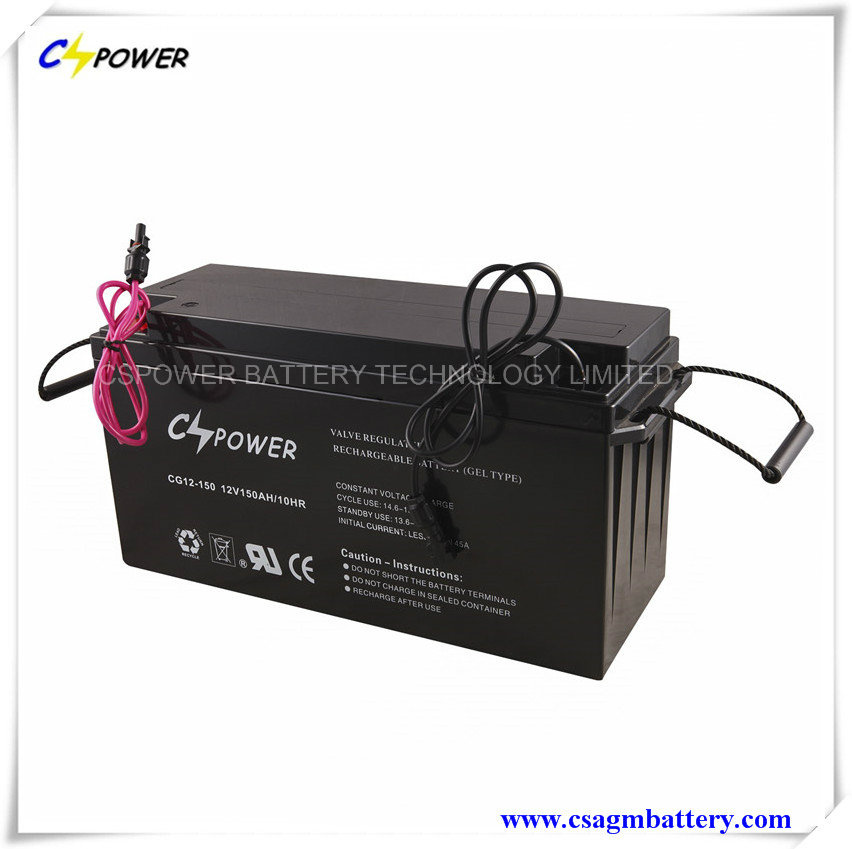

Solar Deep Cycle Gel Battery 12V150ah with Mc4 Connector

Prod Model:	Gel Battery CG12-150
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Voltage:	Gel Battery 12V
Capacity:	150ah Gel Battery with Mc4 Connector
Size:	L*W*H*Th=484*171*239*241mm
Weight:	42.5kg Gel Battery with Solar Mc4 Terminal
Expected Cycle Time:	15-20years Deep Cycle Gel Battery
Warranty:	3 Years Solar Battery with Mc4 Terminal Connector
Maximum Capacity:	300ah Solar Gel Battery
Delivery Time:	10-15 Days
Brand:	Cspower/OEM
Export Markets:	Global
Type:	Lead-Acid Batteries
Usage:	Boat
Nominal Voltage:	12V
Discharge Rate:	Low Discharge Rate
Rechargeable:	Chargeable
Shape:	Gel Battery

Product Description

Solar Deep Cycle Gel Battery 12V150Ah with MC4 connector

Characteristics
Model: Gel Battery with MC4 connector Terminal CG12-150,
Warranty: 3years Gel Battery/ Deep Cycle Battery,
With solar MC4 connector
sealed free maintenance
Solar accumulator Gel battery
for solar&wind power, street lighting system
Life span: 15-20years Gel Battery,
Minimum Order: 10 Units
FOB Port: Guangzhou/Shenzhen/Hongkong
Lead Time: 10 - 15 days
Payment Terms: T/T, Western Union
Product Certificate: CE, ISO, IEC

For solar MC4 connector Terminal
Most solar panels come with approximately 3 ft of Positive ('+') and Negative ('-') wire.
One end of each wire is connected to the junction box of the panel. In most solar panels, the other
end of each wire is terminated with an MC4 connector.

The Positive ('+') wire has a Female MC4 Connector and the Negative ('-') wire has a Male MC4  Connector. To extend the length of the wires of these solar panels for connection to a charge controller,
combiner box or grid-connected inverter, an extension wire is required with corresponding Male and
Female MC4 Connectors.
Sealed/Maintenance-Free

The valve regulated spill proof construction allows trouble-free safe operation in any position. There is no need to add electrolyte, as gases generated during the charge phase are recombined in a unique "oxygen cycle".

Long Shelf Life

A low self-discharge rate, up to approximately 3% per month, may allow storage of fully charged batteries for up to a year, depending on storage temperatures, before charging becomes critical.

Deep Discharge Recovery

Special separators, advanced plate composition and a carefully balanced electrolyte system ensure that the battery has the ability to recover from excessively deep discharge.

Low Pressure Valve Regulators

All batteries feature a series of low pressure one-way relief valves. These valves safely release any excessive accumulation of gas inside the battery and then reseal.

High Discharge Rate

Low internal resistance allows discharge currents of up to ten times the rated capacity of the battery. Relatively small batteries may thus be specified in applications requiring high peak currents.

Wide Operating Temperature Range

Batteries may be discharged over a temperature range of -40°C to +60°C (-40°F to + 140°F) and charged at temperatures ranging from -20°C to +50°C (-4°F to +122°F).

Rugged Construction

The high impact resistant battery case is made of nonconductive ABS plastic. The case materials impart great resistance to shock, vibration, chemicals and heat. Flame Retardant (FR) battery cases and lids are available where the end application dictates.

Long Service Life

Have a design life of up to five years in standby applications. In cyclical applications up to 1,000 charge/discharge cycles can be expected depending on average depth of discharge.

Gel Battery with Solar MC4 Terminal Main Application

UPS, solar systems, Streeting Light, control systems, power systems, wind energy systems, telecommunication/communication systems & etc.



Model NO.	Nominal Voltage (V)	Rated Capacity(AH) 10hrs/25ºC	Approx. Weight		Dimensions(mm)								Terminal Type
			kg	lbs	Length		Width		Height		Total Height
					mm	inch	mm	inch	mm	inch	mm	inch
CG12-33	12	33	10.4	22.9	196	7.70	131	5.16	155	6.10	170	6.69	T9/T16
CG12-38	12	38	12.2	26.84	197	7.73	166	6.54	174	6.85	181	7.13	T12
CG12-50	12	50	16.2	35.6	230	9.06	138	5.43	211	8.30	229	9.01	T9/T16
CG12-55	12	55	16.2	35.6	230	9.06	138	5.43	211	8.30	229	9.01	T9/T16
CG12-65	12	65	20,5	45.1	350	13.8	166	6.54	179	7.05	179	7.05	T9
CG12-70	12	70	22.0	48.4	260	10.2	169	6.65	211	8.30	215	8.46	T16
CG12-80	12	80	23.4	51.5	260	10.2	169	6.65	211	8.3	229	9.02	T14
CG12-85	12	85	29	64.10	307	12.08	169	6.65	211	8.3	234	9.21	T16A/T8
CG12-100	12	100	30	66	331	13.0	173	6.81	213	8.39	233	9.17	T10
CG12-120	12	120	36.5	80.3	407	16.0	174	6.85	209	8.23	233	9.17	T11
CG12-134	12	134	41	90.2	341	13.43	173	6.81	283	11.14	283	11.14	T9/T20
CG12-150	12	150	42.5	93.5	484	19.1	171	6.73	241	9.49	241	9.49	T11
CG12-180	12	180	56.5	124	530	20.9	209	8.23	214	8.43	240	9.45	T9
CG12-200	12	200	60	132	522	20.57	240	9.45	216	8.50	240	9.45	T11
CG12-230	12	230	64	140.8	522	20.6	240	9.45	216	8.50	240	9.45	T9
CG12-250	12	250	68	150	520	20.5	268	10.55	220	8.66	243	9.57	T11
CG2-100	2	100	6.4	14.11	171	6.73	72	2.83	206	8.11	227	8.94	T16
CG2-150	2	150	9.0	19.8	172	6.77	102	4.02	207	8.15	227	8.94	T6
CG2-200	2	200	14	30.9	172	6.77	111	4.37	329	13.0	356	14.0	T20
CG2-300	2	300	20.5	45.2	171	6.70	151	5.94	330	13.0	366	14.4	T20
CG2-400	2	400	27.5	60.6	210	8.27	176	6.93	329	13.0	366	14.4	T20
CG2-500	2	500	33.5	73.9	241	9.5	172	6.8	331	13.0	366	14.4	T20
CG2-600	2	600	41	90.4	301	11.9	175	6.89	331	13.0	366	14.4	T20
CG2-800	2	800	55	121.3	411	16.1	175	6.89	330	13	356	14	T20
CG2-1000	2	1000	66.5	146.6	475	18.7	175	6.89	330	12.99	356	14.02	T20
CG2-1500	2	1500	103.5	228.2	401	15.8	351	13.8	342	13.5	369	14.5	T20
CG2-2000	2	2000	136	299.8	491	19.3	351	13.8	343	13.5	369	14.5	T20
CG2-3000	2	3000	195	429	710	28.0	352	13.9	342	13.5	369	14.5	T20
