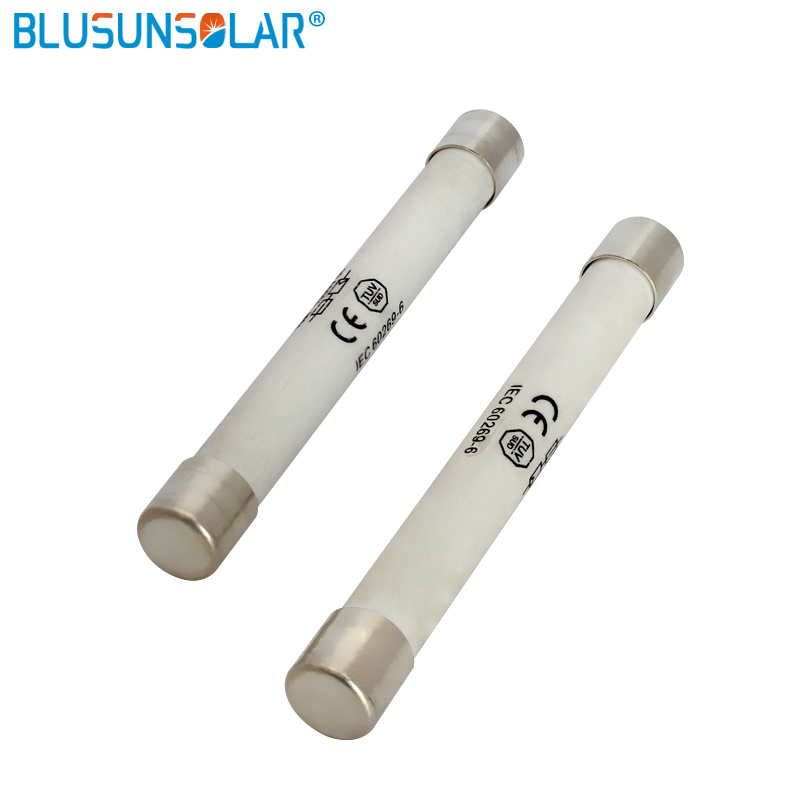

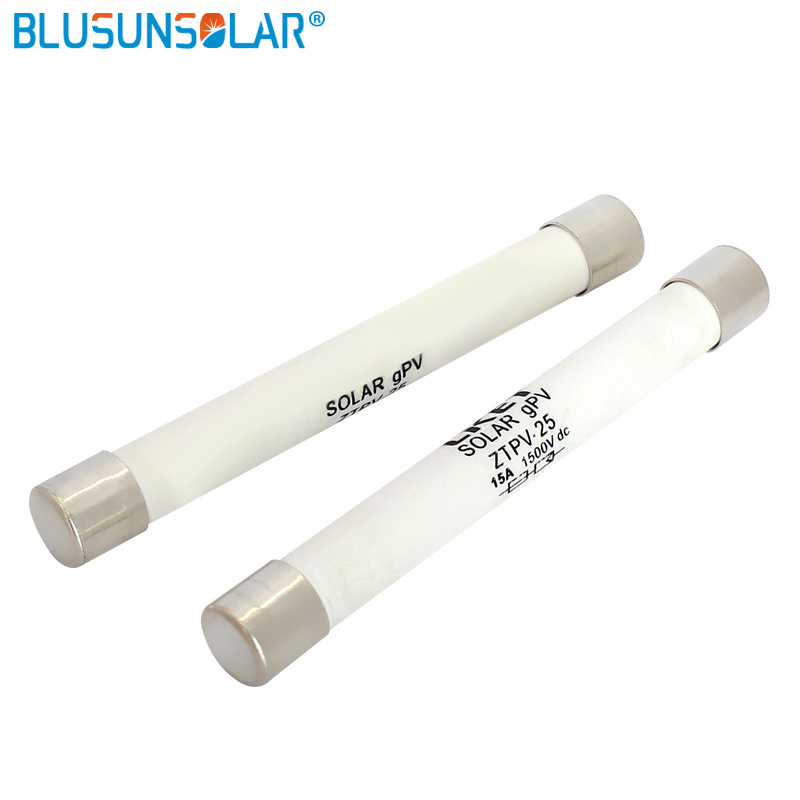

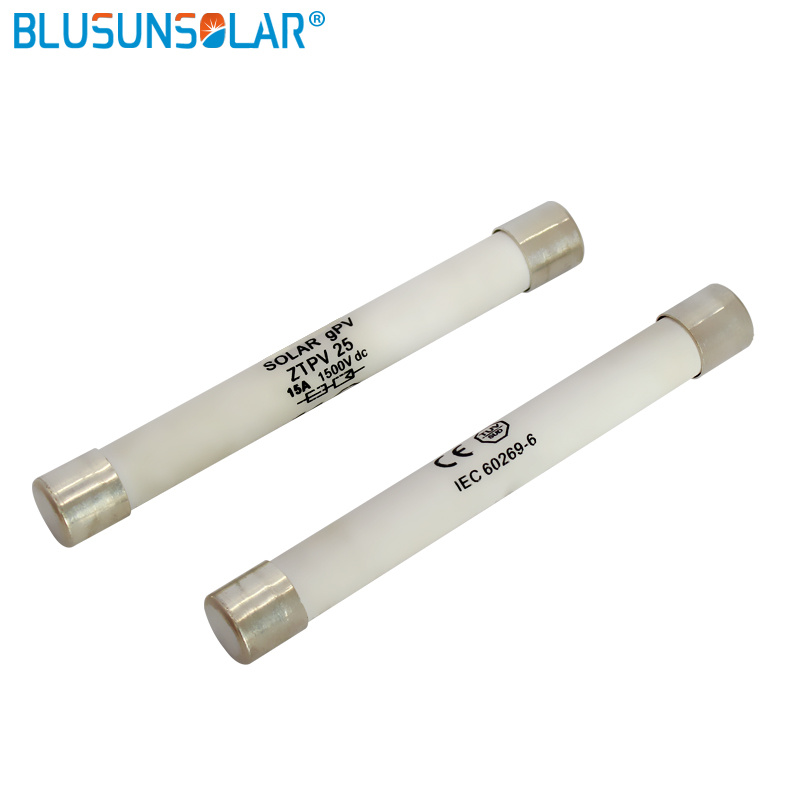

Solar Fuse 15A 1500VDC 10*85 PV Fuse for Solar PV System

Product Description

50 pcs/lot DC Solar Fuse 15A 1500VDC PV Fuse Link Wire Fusible 10x85mm Safety Protection

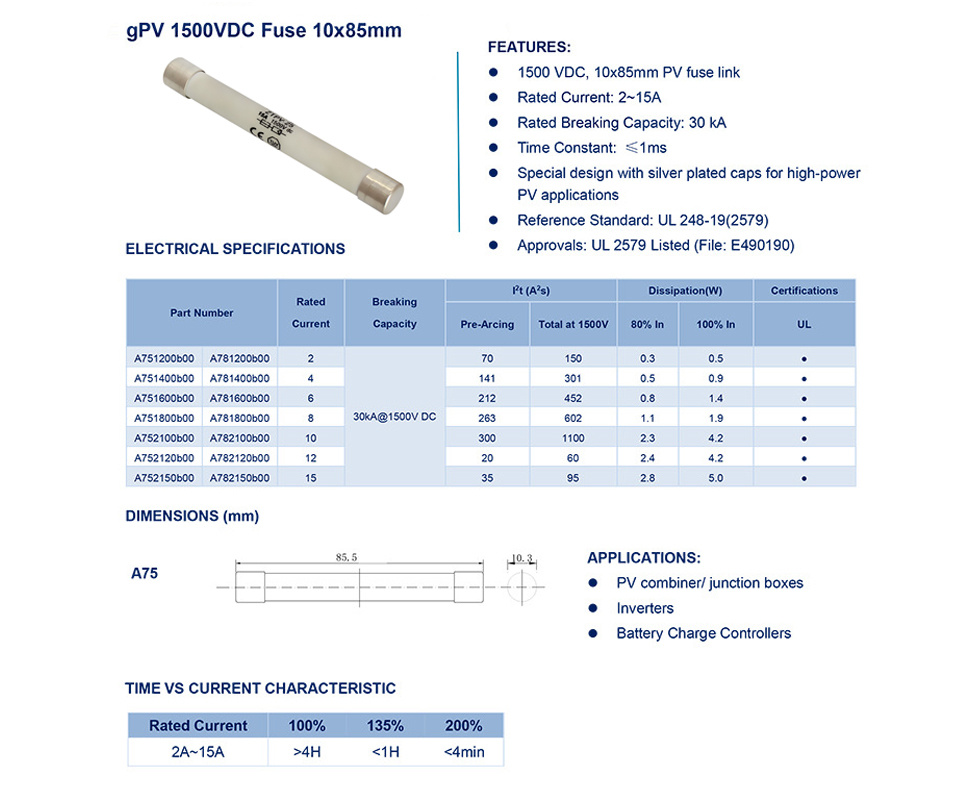

Specifications:
** 1500 VDC, 10x85mm PV fuse link
Approvals: UL 2579 Listed (File: E490190)
Reference Standard: UL248-19(2579)
Rated current (fuse): 2-15A
Rated Breaking Capacity: 30KA
Rated voltage: DC1500 V
Fuse size: 10x85mm
Time Constant: ≤1ms
Special design with sliver plated caps for high-power PV applications
