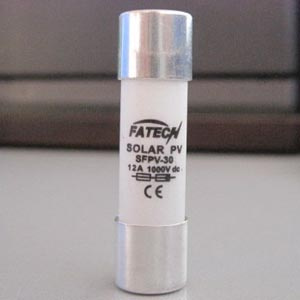

Solar Fuse Link 1000vdc (1A~32A)

Name: Solar Fuse Link 1000vdc (1A~32A)
Brand: all-electronics-online.com
SKU: 694997965
Availability: InStock
Rating: 5 (127 reviews)

Price:	Negotiable
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

Markets:	South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Function:	Overcurrent Protection
Certification:	CE
Type:	Fuse

Product Description

The range of 10*38mm solar fuse links is specifically designed for protection of photovoltaic (Solar Panel) strings. These solar fuse links are capable of interrupting low over-currents associated with faulted photovoltaic string arrays.

Class of Operation: GR-(PV)

Standard: Manufactured in accordance with IEC60269-6.

Technical Parameters:
Rated Voltage: 1000V DC
Rated Current: 1A~32A
Breaking Capacity:
1-6A: 40kAdc
8-15A: 33kAdc
20A: 10kAdc
Min Interrupting: 1.3× In
Time constant (L/R): Under 1ms

Dimension: 10*38mm

Rated Current (A)	Energy Integral A 2 S/I 2 T		Power Consumption (w)
Rated Current (A)	Pre-Arcing	Total @1000Vdc	Power Consumption (w)
1	0.15	0.5	1.0
2	1.2	3.5	1.0
3	4	11	1.3
4	10	25	1.3
5	20	50	1.6
6	30	90	1.8
8	3	30	2.1
10	7	70	2.3
12	12	120	2.7
15	22	220	2.9
20	35	360	3.1

FATECH ELECTRONIC Co., Ltd., is located in Guangdong Provincial New Light Production Base, China, which is a professional manufacturer on R&D and producing on lightning and surge protection devices. Our company gathered all kinds of high-skillled personnels, including authority technical experts and professionals, and excellent technicians with more than 10 years experience.

1. Our main products:

-Surge arresters for protection of photovoltaic system,

-Surge protection devices for protection of power supply systems,

-SPD surge protectors for protection of signal system,

-Lighting rod & lightning counters,

-Test devices.

Wide range of lighting & surge protection products assured you a one stop shopping location for all your need and professional technical support.

2. Our global partners:

We are now exporting more than 100 countries and areas, mainly in Europe, Asia, Latin-America, and Middle East. Our global partner including Ericsson, Sri Lanka Telecom, Telefonica-Movie and so on.

3. Our in-house test lab.:

We established an independent testing laboratory, including reliability testing laboratory, environmental aging testing laboratory, release testing laboratory, which can be performed tests below:

-Impulse current generator (8/20 μ S/160kA and 10/350μ S/25kA)

-Thermal stability tester

-Salt Spray Chamber

-Multi-function Varistor Tester

-On-line Aging Tester

-Dielectric Voltage Withstand Tester

-1.2/50 Voltage Impulse Generator

-Environment Stimulating Tester

-Lightning Surge Counter Tester

We are looking forward to cooperate with more customers worldwide, and warmly welcome your visit and audit our factory.
