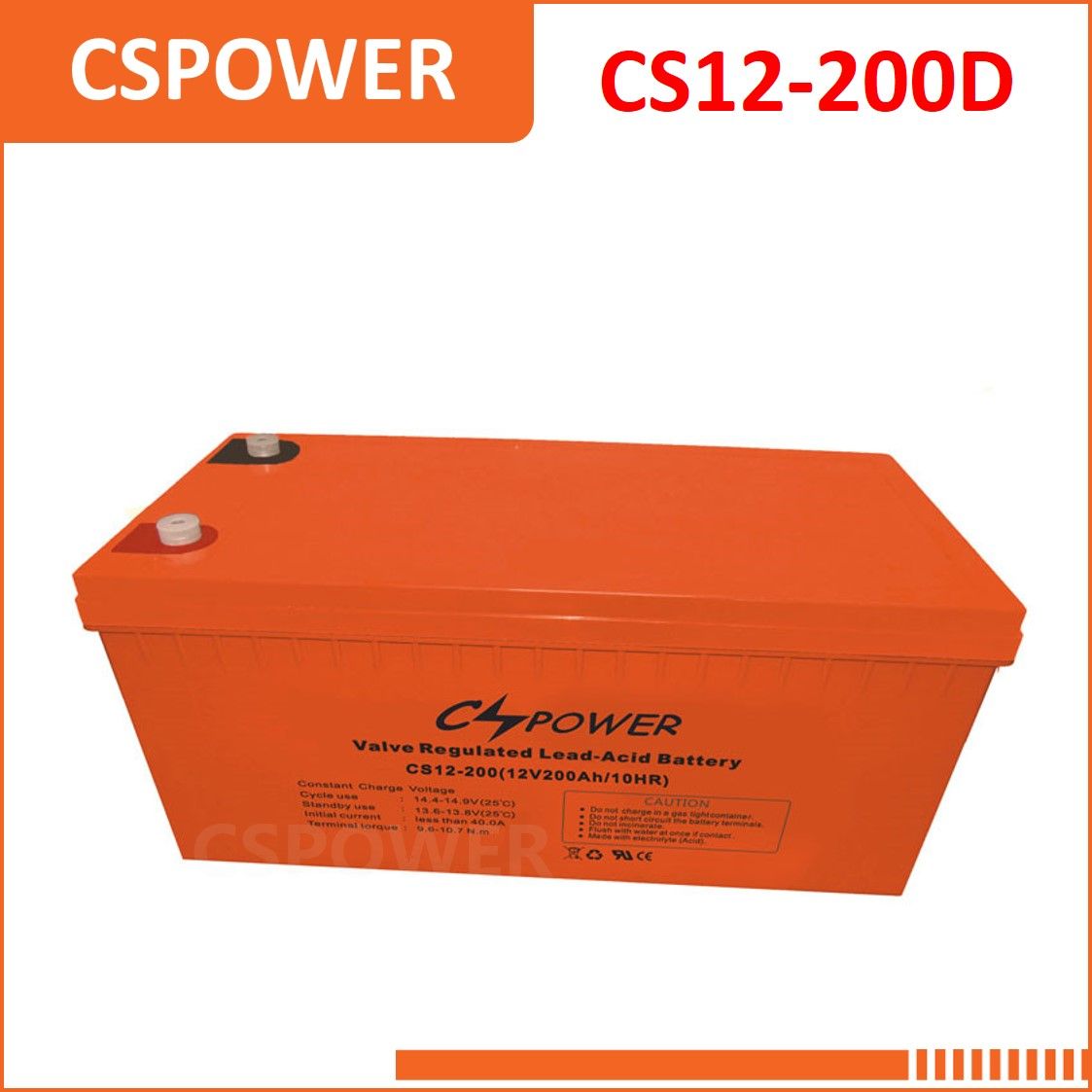

Solar Panel AGM Battery 12V200ah with 3 Years Warranty CS12-200

Prod Model:	CS12-200
Model:	Lead Acid Battery 12V
Size:	522*240*218mm
Color:	Black
Capacity:	200ah
Warranty:	3 Years
Delivery Time:	10-15 Days
Certification:	Ce, IEC, ISO
Brand:	Cspower/OEM
Weight:	56kg
Lifespan:	10-12 Years
Type:	Lead-Acid Batteries
Usage:	Wind and Solar System
Nominal Voltage:	12V
Discharge Rate:	Low Discharge Rate
Rechargeable:	Chargeable
Shape:	AGM 12V200ah Battery

Product Description

Product Description

Solar panel AGM battery 12v200ah with 3 years warranty


Battery Characteristics

 (1). Excellent safety performance: No electrolyte leakage, battery swelling and cracking under normal use.

(2). Good discharging performance: With smooth discharging voltage and mild discharging platform.

(3). Good shock-proof performance: The fully charged and completely fixed battery, with 4mm amplitude and 16.7HZ frequency do have a normal open circuit voltage without leakage, batteries swelling or cracking problem after one-hour vibration.

(4). Good impact-proof performance: The fully charged battery is proved to maintian normal open circuit voltage and be without leakage or batteries swelling or cracking after droping three times from 20cm height naturally to a 1 cm-thick hardwood board.

(5). Good resistance to overdischarge: In temperature of 25 degrees Celsius, the fully charged battery discharges with fixed resistance which is equivalent to the one required by 1 CA discharge of the battery for three weeks, and it can restore capacity over 75%.

(6). Good resistance to overcharge: The fully charged battery is proved to maintian normal open circuit voltage and be without leakage or batteries swelling or cracking in temperature of 25 degrees Celsius after chargeing at 0.1 CA for 48 hours, and the capacity maintian over 95%.

(7). Good resistance to high current: The fully charged battery is proved to be without conductive part melted or any appearance deformation after discharging at 2 CA for 5 minutes or 10 CA for 5 seconds.


Solar panel AGM battery 12v200ah with 3 years warranty

Advantage:

1. The battery is full of power when it's out of factory, no need to use liquid charge;
2. No memory, no need to discharge battery use, suitable for circuit design;
3. By high partition, adsorption and strong;
4. There is no flowing liquid (poor liquid), does not leak acid and free Upside down,
5. Comply with environmental requirements, ease of use,
6. The use of lead-calcium alloys, battery self-discharge is very low,
7. Easy storage, less maintenance;
8. Using ABS plastic shell and valve technology for safe use.
9. We possess our own lead grid production technology and production line, which effective help you with quality and cost control.
10. As a 10 years history factory
11. As a UL, CE, ISO9001, ISO14001 company, we believe that our battery quality can definitely satisfy you.

The solar battery is widely applied for solar power new energy, UPS, telecommunication, banking, medical industry, fire fighting, public safety system and etc.


Solar panel AGM battery 12v200ah with 3 years warranty


OUR BATTERY MATERIAL ADVANTAGES:

1) Container/Cover: Made of UL94HB and UL 94-0ABS Plastic, fire resistance and water proof.

2) 99.997% pure new lead NEVER use recycle lead.
3) Negative Plates: Use the special PbCa alloy grids, optimize the recombination efficiency and less gassing.
4) High quality AGM separator: Absord acid electrolyte, the best retainer mat for VRLA batteries.
5) Positive plates: PbCa grids minimize corrosion and prolong life.
6) Terminal post: Copper or lead material with maximum conductivity, enhance the high current rapidly.
7) Vent Valve: Allows the release of the excess gas automatically for safety.

8) Three steps of Seal procedures: Ensure battery completely sealed with safety, never leakage and volatile acid, longer life.

9) Silicone GEL electrolyte: Import from Germany Degussy famous brand silicone.


Solar panel AGM battery 12v200ah with 3 years warranty




Payment Terms: T/T
Minimum Order: 10 Units
FOB Port: Guangzhou/Shenzhen
Lead Time: 10-15 days
Product Certificate: CE, ISO, UL



Model NO.	Nominal Voltage (V)	Rated Capacity(AH) 10hrs/25	Approx. Weight		Dimensions(mm)								Terminal Type
			kg	lbs	Length		Width		Height		Total Height
					mm	inch	mm	inch	mm	inch	mm	inch
CS12-7D	12	7	2.2	4.84	151	5.94	65	2.56	94	3.70	100	3.94	T2
CS12-12D	12	12	3.65	8.03	151	5.94	98	3.86	94	3.70	100	3.94	T2
CS12-18D	12	18	5.5	12.1	181	7.13	77	3.03	167	6.57	167	6.57	T3
CS12-20D	12	20	5.8	12.76	181	7.13	77	3.03	167	6.57	167	6.57	T3
CS12-22D	12	22	6.5	14.3	181	7.13	77	3.03	167	6.57	167	6.57	T3/T12
CS12-24D	12	24	8.1	17.82	166	6.54	126	4.96	174	6.5	181	7.13	T32
CS12-28D	12	28	8.9	19.58	175	6.89	166	6.54	125	4.92	125	4.92	T4
CS12-33D	12	33	10.2	22.44	196	7.7	131	5.16	155	6.10	180	7.09	T16
CS12-35D	12	35	10.4	22.88	197	7.76	130	5.12	163	6.42	180	7.09	T6/T16
CS12-40D	12	40	13.5	29.7	197	7.73	166	6.54	174	6.85	181	7.13	T12
CS12-45D	12	45	14.5	31.9	197	7.73	166	6.54	174	6.85	181	7.13	T5
CS12-55D	12	55	16.2	35.64	230	9.06	138	5.43	211	8.30	229	9.01	T9/16
CS12-65D	12	65	20.5	45.10	350	13.8	166	6.54	179	7.05	179	7.05	T9
CS12-70D	12	70	23.4	51.5	260	10.2	169	6.65	211	8.3	215	8.46	T14
CS12-80D	12	80	23.4	51.5	260	10.2	169	6.65	211	8.30	229	8.46	T14
CS12-90D	12	90	27	59.40	307	12.1	169	6.65	211	8.30	215	8.46	T16
CS12-100D	12	100	31.1	68.42	331	13.03	173	6.81	213	8.39	233	9.17	T10
CS12-120D	12	120	36.5	80.3	407	16	174	6.85	209	8.23	233	9.17	T11
CS12-134D	12	134	41	90.20	341	13.43	173	6.81	283	11.14	287	11.3	T9/T20
CS12-150D	12	150	45	99.00	484	19.1	171	6.73	241	9.49	241	9.49	T11
CS12-180D	12	180	56.5	124.3	522	20.6	240	9.45	216	8.5	240	9.45	T9
CS12-200D	12	200	60	132	522	20.6	240	9.45	216	8.50	240	9.45	T11
CS12-230D	12	230	64	140.8	520	20.5	268	10.55	220	8.66	240	9.45	T9
CS12-250D	12	250	69	151.8	520	20.5	268	10.55	220	8.66	243	9.57	T11
CS6-100D	6	100	17	37.4	195	7.67	170	6.69	206	8.11	211	8.31	T16
CS6-105D	6	105	18.5	40.70	280	11.02	128	5.03	203	7.99	203	7.99	T16
CS6-120D	6	120	19	41.80	195	7.67	170	6.69	206	8.11	211	8.31	T16
CS6-150D	6	150	27	59.40	260	10.2	180	7.09	247	9.22	252	9.92	T16
CS6-180D	6	180	28	63.80	260	10.2	180	7.09	247	9.72	252	9.92	T16
CS6-200D	6	200	29	61.60	306	12.04	169	6.63	223	8.77	228	8.97	T16
CS6-225D	6	225	34.5	75.90	243	9.57	188	7.4	275	10.83	275	10.83	T16
CL2-300	2	300	18.8	41.4	171	6.7	151	5.9	330	13.0	366	14.4	T20
CL2-350	2	350	24.5	53.90	211	8.31	176	6.92	331	13	356	14	T20
CL2-400	2	400	26.7	58.7	210	8.27	176	6.93	329	13.0	366	14.4	T20
CL2-500	2	500	31	68.20	242	9.5	172	6.8	331	13.0	366	14.4	T20
CL2-600	2	600	38	83.80	301	11.9	175	6.89	331	13.0	366	14.4	T20
CL2-800	2	800	53	116.60	410	16.1	175	6.89	330	13.3	365	14.4	T20
CL2-1000	2	1000	63	138.60	475	18.7	175	6.89	330	12.99	356	14.02	T20
CL2-1500	2	1500	101	223	401	15.8	351	13.8	342	13.5	369	14.5	T20
CL2-2000	2	2000	132	290.	491	19.3	351	13.8	343	13.5	369	14.5	T20
CL2-3000	2	3000	195	430	710	28.0	352	13.9	342	13.5	369	14.5	20
