| Prod Model: |
PL16 8000w |
| Input Voltage Range: |
185VAC-275VAC |
| Frequency Range: |
40Hz-65Hz |
| Rated Output Power: |
8000W |
| Power Factor: |
0.9~1.0 |
| Nominal Output Voltage: |
230VAC+/-10% |
| DC Voltage: |
48V/72V |
| Nominal Charge Current: |
35A/50A |
| Dimension(L*W*H): |
538*255*630mm |
| Net Weight: |
66.1kg |
| Warrenty: |
12 Months |

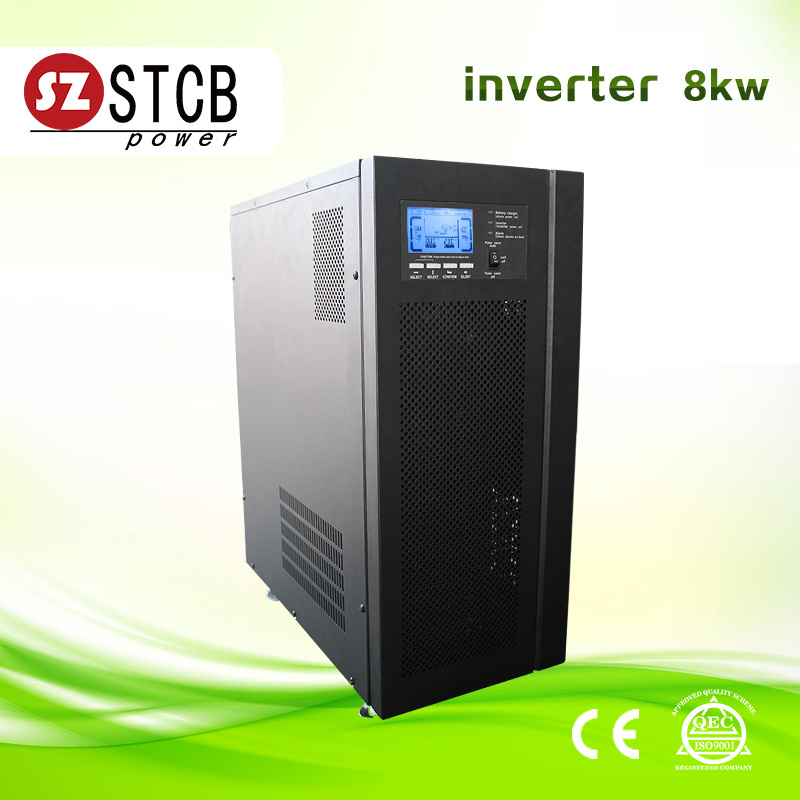

Product Description

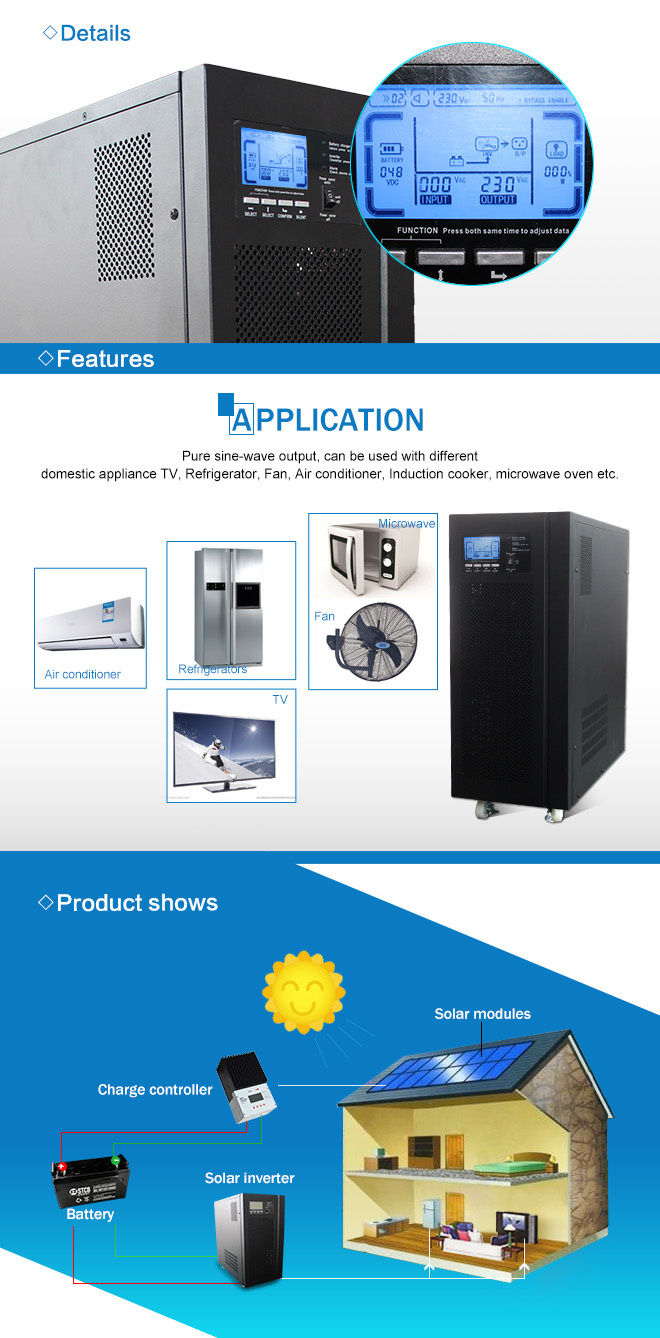

solar power inverter 8000w for home solar systemMain Features:
1. LCD digital display show voltage, load and battery information in real time.
2. Peak power is 3 times of rated power.
3. Work with inductive load such as air conditioner, motor door and so on.
4. Pure sine wave output, available for sensitive load.
5. 5 stages progressive charging
6. Fast and powerful charger with 35A and 50A
7. Built in charge controller 40A/60A (PV16 Optional)
8. generator compatible
9. High power factor 0.9, low power consumption.
10. Automatically transfer between battery and line modes.
11. Microprocessor control guarantees high reliability.
12. Remote control function.
13. Protection against: Over load, over temperature, over charging, low battery
Specification:
MODEL | PL16-8KW | PL16-10KW | PL16-12KW |
| Line Mode Specifications: |
| Input Voltage | Input Voltage Waveform | Sinusoidal (utility or generator) |
| Nominal Input Voltage | 230Vac |
| Input voltage range | 185VAC-275VAC |
Input
Frequency | Nominal Input Frequency | 50Hz/ 60Hz (Auto detection) |
| Frequency Range | 40hz-65hz |
Main
Functions | Output Voltage Waveform | As same as Input Waveform |
Over-Load Protection
(SMPS load) | Fuse |
Output Short
Circuit Protection | Fuse |
| Transfer Switch Rating | 63A/80A/100A |
Max Bypass
Overload Current | 100A |
| Battery Invert Mode Specifications: |
| output | Output Voltage Waveform | Sine wave |
| Rated Output Power (KW) | 8kw/10kw/12kw |
| Power Factor | 0.9~1.0 |
| Nominal Output Voltage (V) | 230Vac ±10% rms |
| Nominal Output Frequency | 60Hz ± 0.3Hz |
| 50Hz ± 0.3Hz |
| DC Voltage | Nominal DC Input Voltage | 48V/72V |
| DC Voltage range | 40-62Vdc for 48VDC/ 70-93Vdc for 72VDC |
| Low Battery Alarm | 42.0Vdc ± 1.2Vdc for 48V battery |
| 63.0Vdc ± 1.8Vdc for 72V battery |
| DC input Range | 40.0Vdc-60Vdc for 48V battery |
| 64Vdc -96Vdc for 72V battery |
| Charger | Nominal Charge Current | 35A/50A(5 stages adjustable charging current) |
| Over Charge Protection | Bat. ≥62Vdc / 93Vdc, beeps 0.5s every 1s & fault after 60s |
| Efficiency | Efficiency (Battery Mode) | ≥85% |
| Efficiency (Line Mode) | >98% |
| Transfer Time | Ac to Dc | 20ms (Max) |
| Dc to Ac | 15ms (Max) |
System
parameter | Over-Load Protection | 110% and Fault after 60s off the output,
Load>150%, beeps 0.5s every 1s, and Fault after 20s. |
| Short Circuit Protection | Current limit (Fault after 10s) |
| Surge rating (10s) | 1:3 (VA) |
| Power saver | Load<25W (Enabled on" P/S auto"?setting of Remote control) |
| Protections | Low battery, over charging, over load , over temp. |
| Indicators | LED+LCD Display |
General
Specifications | Temperature Range | 0ºCto 40ºC |
| Storage temperature | -15ºC~60ºC |
| Operation humidity | 5% to 95%(non-condensing) |
| Audible Noise | 60dB max |
| Cooling | Forced air, variable speed fan |
| Dimension(L*W*H) | 538*255*630mm |
| Net weight(Kg) | 8KW | 10KW | 12KW |
| 60kg | 65.5kg | 71kg |
Products and Factory:
Our Services:
1. We can be customized according to customer needs and find a good sample logistics, please provide the exact address, company name, phone us.
2. 1% pcb board is provided
3. if by container , you can let us know your own shipping agent or use our cooperated agent
4. 1year warrenty , if it is our quality problem , we will provide the parts for free .
Q1 : What is you advantages?
A1:
a).We are professional ups manufacturer for more than ten years and we have these staffs with rich
production and R&D
b) Excellent workers and skilled engineers
c).Our aims are to provide every customer high quality, reasonable price and excellent
service.
d)we can guarantee to send the goods on time. And also accept any transportation ways that
you require
Q2 : How do you control the production quality?
A2:
a) For materials, we have IQC departments and the IQC testing follow MIL-STD-105E standard
b) in production have 4 times function testing
c) all of our products with 100% burn-in testing
d) 100% QC testing before delivery
Q3 : Do you accept OEM/ODM?
A3 : ODM&OEM are warmly welcomed !!!
Q4 : what's your payment?
A4:
a) We can accept payment terms of T/T, Western Union, PayPal.
Samples and trial order accept PayPal ,T/T & Western Union. normal order accept T/T &Western Union
b) 30% ADVANCE DEPOSIT after buyer's confirmed payment, the balance should be paid before shipping when goods are ready.
SHENZHEN SMARTKEY POWER Co., Ltd / SHENZHEN SANTAK CASTLE POWER SUPPLY Co., Ltd. is a professional engaged in an uninterruptible power supply (UPS), small uninterruptible power supply, solar inverter, solar home system, valve control maintenance free lead-acid battery, voltage regulator design, products such as the production, sales and service company 16 years ago, and has a good reputation in the local market. Professional R & D team and professional export team. The United States and Germany, battery, UPS power supply technology and reserves of high quality and efficiency to adapt to market research and management team and the development of industry demand, universities and scientific research institutions established extensive and close relations of cooperation, research and development to ensure the sustainable development of enterprises and high-tech products.
DC UPS is a backup protection power for network communication equipment. It can be widely applied to various low-power DC devices, such as routers, modems, IP cameras, closed-circuit television monitoring and POE switches, so as to ensure network communication in the case of blackout continuity, and also to charge mobile phones and tablet computers.
UPS has 16 years of experience in UPS production and sales, and has many rich experience in UPS pre-sale service after many years of operation and development in many parts of China and Europe, such as North and South America, South Asia, Middle East, Africa and many other fields. 16 years of industry struggle to build our technical team, at any time to provide customers with high quality power solutions and solutions.
The use of clean energy, such as inverting solar energy, is the trend of future energy development, and plays an important role in energy conservation and environmental protection. We have entered the solar home industry to produce high frequency and high frequency solar inverters to meet the needs of customers in different regions.
The annual sales volume in 2016 is about $4 million 500 thousand.
Shenk is still developing, is still in progress, not only is the company with the boss, and we have been in the staff. Along the way, people have experienced a lot of Shenk, forward, also has the growing stagnation; Family, also have a family of regret to leave; Have to climb the joy, also occasionally fall pain.
In this bumpy road, is the achievement of our dream journey shenk!
