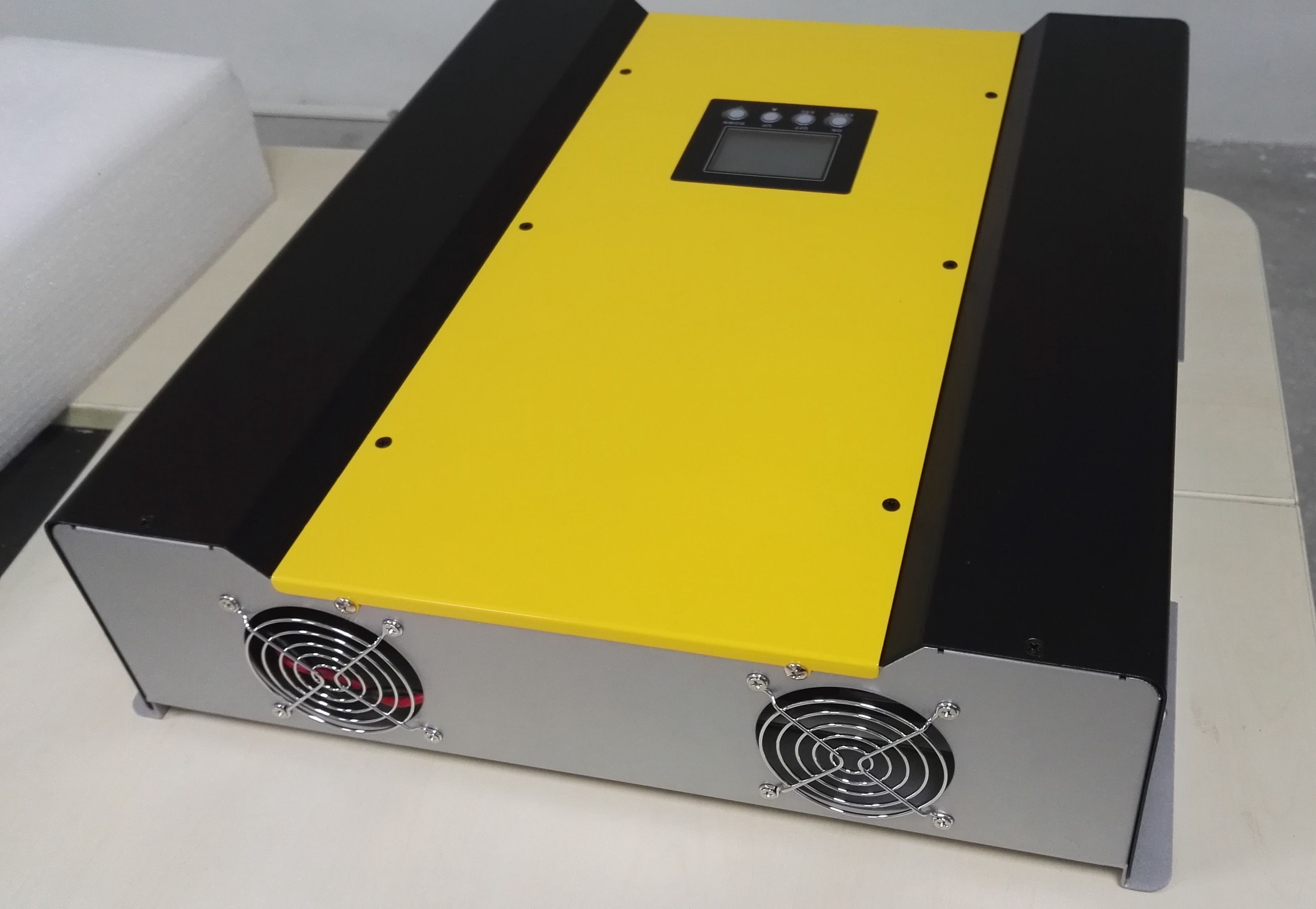

Solar Power Inverter for Home

Prod Model:	LYST-5000W
Certificate:	Ce
Input Voltage:	230V AC
Work Time (H):	100000hours
Output Current:	Load

Product Description

LYST-3000W   3000VA/2400W off grid on grid hybrid solar inverter system

Specifications
Solar Inverter System :Model: LYST-3000W
1.Green Energy
2.Energy-saving products
3.Off grid
4.Certificate:CE,RoHS,TUV, ISO9001


Models	1kVA (LYSI-1000-24)	2kVA ( LYSI-2000-24 Plus)	3kVA (LYSI-3000-24 Plus)	4kVA (LYSI-4000-48-PAR-A)	5kVA (LYSI-5000-48-PAR-A)
Rated Power	1000VA/800W	2000VA/1600W	3000VA/2400W	4000VA/3200W	5000VA/4000W
INPUT
Voltage	230VAC
Selectable Voltage Range	170-280VAC(For UPS);90-280VAC(For Home Appliances)
Frequency Range	50Hz/60Hz (Auto sensing)
OUTPUT
AC Voltage Regulation	230VAC ±5%
( Batt. Mode)
Peak Efficiency	90%-93%
Transfer Time	10ms typical(For UPS);20ms typical(For Home Appliances)
Waveform	Pure Sine Wave
BATTERY
Battery Voltage	24 VDC		48 VDC
Floating Charge Voltage	27 VDC		54 VDC
Overcharge Protection	31 VDC		62 VDC
Maxmium Current	10/20A	20/30A
SOLAR CHARGER(MPPT/PWM )
Rated Power	600W	1500W		3000W
Efficiency	98%max.
Max. PV Array Open  Circuit Voltage	75 VDC	145 VDC
PV Array MPPT  Voltage Range	30~66 VDC	60~115 VDC
Maxmium Charge Current	25A	60A
Standby Power Consumption	2w
GENERAL SPECIFICATIONS
Demension(D*W*H)	128*272*355mm	140*295*479mm		140*295*540mm
Net Weight	7.4kg	11.5kg		13.5kg
Operating Temperature Range	0ºC-55ºC
Safety Certification	CE
Storage Temperature	-15ºC~60ºC

Technical Parameters:
Power:3000VA/2400W
Input Voltage:230V AC
Output:110V/220V/230V,50Hz/60Hz(Voltage can changed on the inverter)
Battery Voltage:12V DC
DC Output:110-240V
Qutantity of carton: 1pcs
Product size:   140*295*479mm

Depending on different power situations, this hybrid inverter is designed to generate
continuous power from PV solar modules (solar panels), battery, and the utility. When MPP
input voltage of PV modules is within acceptable range (see specification for the details), this
inverter is able to generate power to feed the grid (utility) and charge battery. This inverter is
only compatible with PV module types of single crystalline and poly crystalline. Do not connect
any PV array types other than these two types of PV modules to the inverter. See Figure 1 for
a simple diagram of a typical solar system with this hybrid inverter.

Note: When PV input voltage is lower than 250V for 3KW and 3KW plus and 150V for 2KW,
the power of PV input will de-rate.

Product Overview:

1) PV connectors
2) Grid connectors
3) Battery connectors
4) AC output connectors (Load connection)
5) RS-232 communication port
6) USB communication port
7) Intelligent slot
8) Grounding
9) LCD display panel (Please check section 10 for detailed LCD operation)
10) Operation buttons


Advantages:

1.Safety and easy installation,Plug and play systems;

2.Good quality panel to ensure the high efficiency and long life needs;

3.Solar Automatic lighting controller :with adjustable run times, over-current protection;

4.Solar Batteries: Maintenance free, long life batteries

5.Lighting Source: LED lamp /Lantern (Fixed/Movable)

6.Flexible designs per client requests;


Using of scope:

It is very good for indoor use where there is shortage of electricity and for outdoor activities such as picnicking, fishing and camping. It is an ideal tool for Motor Mechanics, Farm House and small shop owners such as Hairdressers, Barbers, Cobblers, Tailors and Kiosk keepers.
