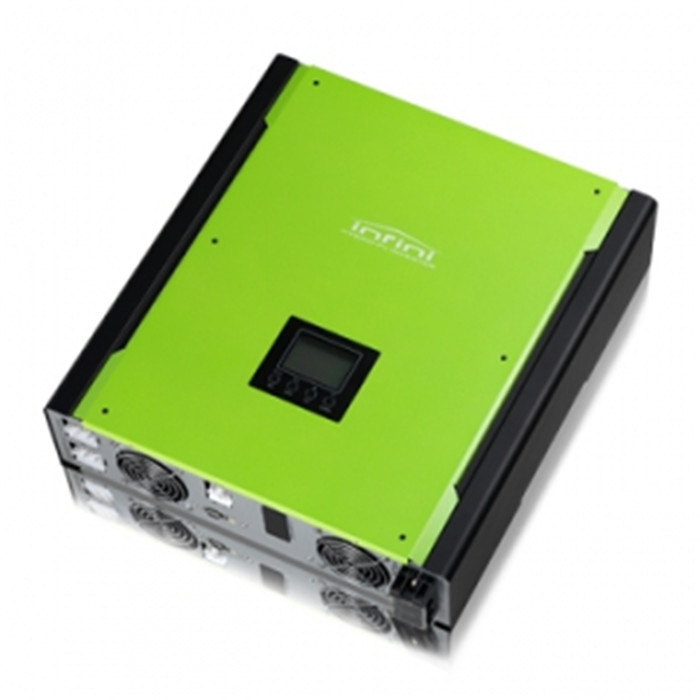

Solar Power off on Grid Inverter

Name: Solar Power off on Grid Inverter
Brand: all-electronics-online.com
SKU: 800981145
Availability: InStock
Rating: 4.6 (73 reviews)

Price:	US $ 100-250/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	LYST-1000W
Certificate:	Ce
Input Voltage:	230V AC
Work Time (H):	100000hours
Output Current:	Load

Product Description

LYST-1000W   1000VA/800W off grid solar system

Specifications
Solar Inverter System :Model: LYST-1000W
1.Green Energy
2.Energy-saving products
3.Off grid
4.Certificate:CE,RoHS,TUV, ISO9001
Technical Parameters:
Power:1000VA/800W
Input Voltage:230V AC
Output:110V/220V/230V,50Hz/60Hz(Voltage can changed on the inverter)
Battery Voltage:12V DC
DC Output:110-240V
Qutantity of carton: 1pcs
Product size:   128*272*355mm

Models	1kVA (LYSI-1000-24)	2kVA ( LYSI-2000-24 Plus)	3kVA (LYSI-3000-24 Plus)	4kVA (LYSI-4000-48-PAR-A)	5kVA (LYSI-5000-48-PAR-A)
Rated Power	1000VA/800W	2000VA/1600W	3000VA/2400W	4000VA/3200W	5000VA/4000W
INPUT
Voltage	230VAC
Selectable Voltage Range	170-280VAC(For UPS);90-280VAC(For Home Appliances)
Frequency Range	50Hz/60Hz (Auto sensing)
OUTPUT
AC Voltage Regulation	230VAC ±5%
( Batt. Mode)
Peak Efficiency	90%-93%
Transfer Time	10ms typical(For UPS);20ms typical(For Home Appliances)
Waveform	Pure Sine Wave
BATTERY
Battery Voltage	24 VDC		48 VDC
Floating Charge Voltage	27 VDC		54 VDC
Overcharge Protection	31 VDC		62 VDC
Maxmium Current	10/20A	20/30A
SOLAR CHARGER(MPPT/PWM )
Rated Power	600W	1500W		3000W
Efficiency	98%max.
Max. PV Array Open Circuit Voltage	75 VDC	145 VDC
PV Array MPPT Voltage Range	30~66 VDC	60~115 VDC
Maxmium Charge Current	25A	60A
Standby Power Consumption	2w
GENERAL SPECIFICATIONS
Demension(DWH)	128272355mm	140295479mm		140295540mm
Net Weight	7.4kg	11.5kg		13.5kg
Operating Temperature Range	0ºC-55ºC
Safety Certification	CE
Storage Temperature	-15ºC~60ºC

Advantages:
1.Safety and easy installation,Plug and play systems;
2.Good quality panel to ensure the high efficiency and long life needs;
3.Solar Automatic lighting controller :with adjustable run times, over-current protection;
4.Solar Batteries: Maintenance free, long life batteries
5.Lighting Source: LED lamp /Lantern (Fixed/Movable)
6.Flexible designs per client requests;
Using of scope:
It is very good for indoor use where there is shortage of electricity and for outdoor activities such as picnicking, fishing and camping. It is an ideal tool for Motor Mechanics, Farm House and small shop owners such as Hairdressers, Barbers, Cobblers, Tailors and Kiosk keepers.

Contacts:

Please feel free to contact me!

Our company is a fast growing company, which is mainly engaged in developing and producing all in one solar street light and other solar products, most of them exported to the Europe, Africa and Middle East and enjoying high reputation among our existing customers due to reliable quality, competitive prices and prompt delivery!

We owns a very strong R/D team, most of engineers hold master or bachelor degrees and have much experience in hardware &software, their expertise enable us to provide our customer professional and full technical support.

Quality assured because each procedure is compliance with ISO9001: 2000 Standard. "Quality is the life of corporation, customers are the wealth of corporation"is our great mission. We commit to total quality! Pursuing innovations of industry and times, we strive to achieve value of corporation, technologies and talents while developing.

Our company also has strong capability on sourcing, manufacturing, processing & developing, so we warmly welcome any kind of OEM partner for long-term and friendly cooperation! We aims not only to expand the business scale but also to provide the best customized products and services to our customers.

Our company will, as before, offer you high quality products, favorable price and perfect follow-up service to develop mutually beneficial business partnership with you in the future, your any inquiry is always welcomed!
