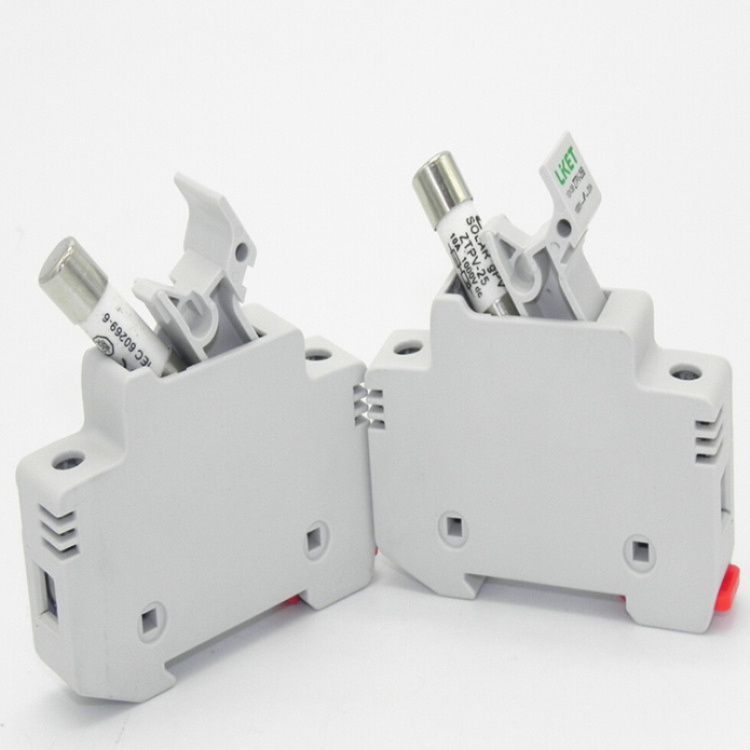

Solar PV Inline Fuse Holder for Power System Protection

Prod Model:	048
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Pole:	1
According To:	IEC 60269.6
Rated Voltage:	1000VDC
Rated Current:	2-20A
Rated Breaking Capacity:	33ka
Operating Class:	Gpv Foe Solar Protection
Connection:	2.5~20mm2
Working Temperature:	-30 Degree ~+70 Degree
Fuse Size:	38.5X10.3mm
Certificate:	CE, RoHS
Brand:	Leader

Product Description

Product features:

1.Agency ratings up to 1000vdc for use with solar pv fuse.
2.Rated for usd with 70~90 degree wire,fine standed wire,spade terminals and comb-busbara.Use any higher temperature rated wire with appropriate derating.
3.Desugned to UL4248-18.
4.Lead free and halogen free material.


Type	Solar pv system DC fuse holder
Pole	1
According to	IEC 60269.6
Rated voltage	1000V DC
Rated current	2-20A
Rated breaking capacity	33KA
Max power dissipation	3.5W
Connection	2.5~20mm2
Working temperature	-30°C~+70°C
Altitude	≤2000m
Relative humidity	+20 ºC≤ 95%,+40ºC≤50%
Rotection class/degree	IP20
Pollution degree	3
Resistance and damp hot	Class 2
Indication type	DIN rail
Installation class	III
Fuse size	38.5x10.3mm
Operating class	gPV foe Solar protection
Holder size	L:80mm, H:60mm, W:18mm
Weight	71g
Installation environment	No obvious shock and vibration
