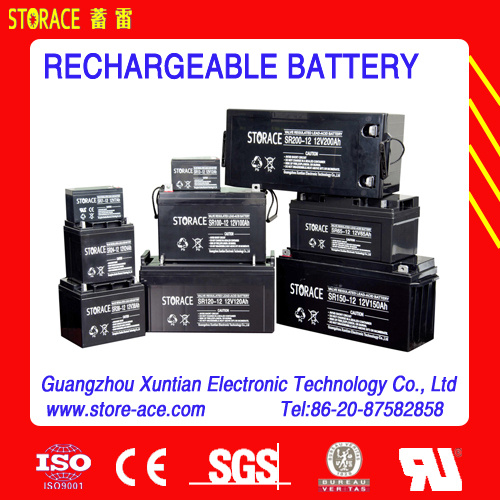

Solar Series Batteries Made in China
| Price: |
US $ 1-699/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
SRD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Black / Dark Gray |
| Cell: |
6 / 1 |
| Sealing: |
Glue Sealing |
| Plate: |
Flat Plate |
| Separator: |
AGM |
| Battery Case: |
ABS |
| Terminal Type: |
Copper / Lead |
| Safety: |
Explosion-Proof |
| Accessory: |
Screws |
| The Charging Current Rate: |
<0.3c |
| Type: |
Lead-Acid Batteries |
| Usage: |
Soalr |
| Nominal Voltage: |
12V |
| Discharge Rate: |
Low Discharge Rate |
| Rechargeable: |
Chargeable |
| Shape: |
Rectangle |
Product Description
Solar series batteries made in chinaSolar series Detailed Product Description
Storace solar series batteries with valve regulated lead acid use particular alloy and material technology design to ensure a excellent performance in various environments, especially high and low temp. Huamo solar series baattaeries is optimal for storage and conversion of photovoltaic energy and wind energy.Battery Structure
1. Container/Cover: Made of UL94HB and LU 94V-0 ABS Plastic
2. Negative Plates: Use the special PbCa alloy grids, optimize the recombination efficiency and less gassing.
3. Separator: Import high quality AGM separator.
4. Positive Plates: PbCa grids minimize corrosion and prolong life.
5. Terminal post: Cooper material with maximum conductivity, enhance the high current rapidly.
6. Vent Valve: Allows the release of excess gas automatically for safety.Application

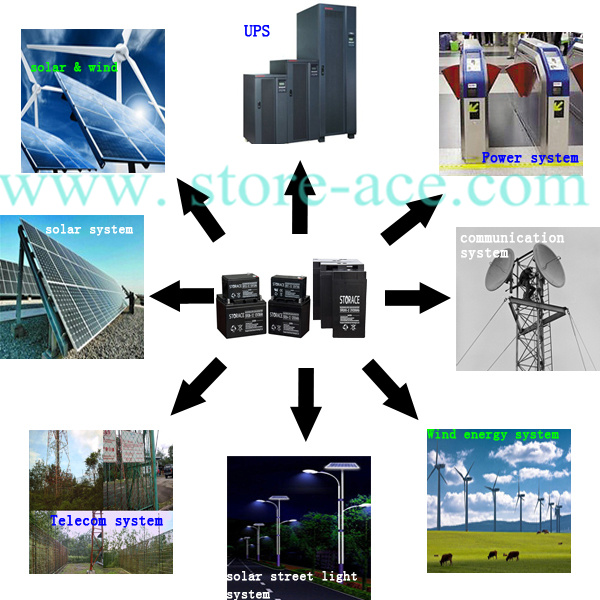

Solar street light system, solar power home system, Photovoltaic system, Alternative energy system, Electric Utility, Outdoor control equipment, Railroad Utility, control systems, power systems, wind energy systems, telecommunications/communication systems & UPS system & etc.
Characteristics
1. Long service life: Designed life is over five years.
2. Good deep charge cycle performance: Good performance in charging, over-discharging and deep-discharging.
3. Good resistance to corrosion and small internal resistance.
4. Widely working environment: The solar battery can be used at widely difference in temperature from subzero 40 degree centigrade to 60 degree centigrade.
Full series specification
Battery
Model |
Nominal voltage
(V) | (Ah)
Ratedcapacity (Ah)
20hrs/25ºC | Approx.
weight |
Dimension |
Terminal Type |
kg |
lbs |
Length |
Width |
Height | Total Height |
| mm | inch | mm | inch | mm | inch | mm | inch |
|
| SRD40-12 | 12 | 40 | 13.00 | 28.66 | 197 | 7.76 | 166 | 6.54 | 174 | 6.86 | 181 | 7.13 | T12 |
| SRD60-12 | 12 | 60 | 19.60 | 43.21 | 350 | 13.79 | 166 | 6.54 | 179 | 7.05 | 179 | 7.05 | T9 |
| SRD70-12 | 12 | 70 | 22.00 | 48.50 | 260 | 10.24 | 169 | 6.66 | 211 | 8.31 | 224 | 8.83 | T12 |
| SRD80-12 | 12 | 80 | 26.00 | 57.32 | 329 | 12.96 | 173 | 6.82 | 213 | 8.39 | 233 | 9.18 | T10 |
| SRD100-12 | 12 | 100 | 31.00 | 68.34 | 331 | 13.04 | 173 | 6.82 | 213 | 8.39 | 233 | 9.18 | T10 |
| SRD100-12 | 12 | 100 | 32.00 | 70.55 | 407 | 16.04 | 174 | 6.86 | 209 | 8.23 | 233 | 9.18 | T11 |
| SRD150-12 | 12 | 150 | 45.00 | 99.21 | 484 | 19.07 | 171 | 6.74 | 241 | 9.50 | 241 | 9.50 | T11 |
| SRD200-12 | 12 | 200 | 64.00 | 141.09 | 522 | 20.57 | 240 | 9.46 | 216 | 8.51 | 240 | 9.46 | T11 |
| SRD250-12 | 12 | 250 | 73.00 | 160.94 | 520 | 20.49 | 268 | 10.56 | 220 | 8.67 | 243 | 9.57 | T11 |
| SRD400-2 | 2 | 400 | 26.70 | 58.86 | 210 | 8.27 | 176 | 6.93 | 329 | 12.96 | 366 | 14.42 | T20 |
| SRD500-2 | 2 | 500 | 31.00 | 68.34 | 241 | 9.50 | 172 | 6.78 | 331 | 13.04 | 366 | 14.42 | T20 |
| SRD600-2 | 2 | 600 | 38.00 | 83.77 | 301 | 11.86 | 175 | 6.90 | 331 | 13.04 | 366 | 14.42 | T20 |
| SRD800-2 | 2 | 800 | 53.00 | 116.84 | 410 | 16.15 | 175 | 6.90 | 330 | 13.00 | 365 | 14.38 | T20 |
| SRD1000-2 | 2 | 1000 | 63.00 | 138.89 | 475 | 18.72 | 175 | 6.90 | 330 | 13.00 | 356 | 14.03 | T20 |
| SRD1500-2 | 2 | 1500 | 101.00 | 222.66 | 401 | 15.80 | 351 | 13.83 | 342 | 13.47 | 369 | 14.54 | T20 |
| SRD2000-2 | 2 | 2000 | 132.00 | 291.01 | 491 | 19.35 | 351 | 13.83 | 343 | 13.51 | 369 | 14.54 | T20 |
| SRD3000-2 | 2 | 3000 | 195.00 | 429.90 | 710 | 27.97 | 352 | 13.87 | 342 | 13.47 | 369 | 14.54 | T20 |
Guangzhou Xuntian Electronic Technology Co., Ltd.is located in beautiful flower city-----Guangzhou, Guangdong province, China. Our company is a high new technical company, and we focus on research and development of lead acid battery, deep cycle battery and Gel storage battery. Beside, we sale full range of different capacity 12 voltage, 6 voltage or 2 voltage battery.
Storage Battery is used mainly in UPS electric power; Telecommunication; Solar or wind power system; Aerospace and navigation; Bank and medical system; Rail transit; Military area and so on.
After years of development, we builded up a professional product reseach and develop term, and a mature engineering technology reseach centre. With such facility and domestic famous senior engineers of battery production as consultant, our technology is leading in battery production field.
Our reseached and developed storage battery earned a high reputation not only in China but also in all over the world. Our batteries sale to European market; American market; Southeast Asia market; Africa market and Middle East market, what is more, they all received high compliment from customer.
