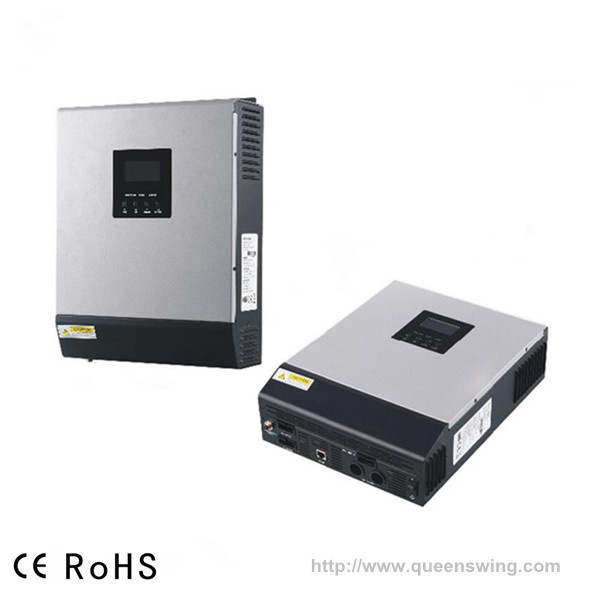

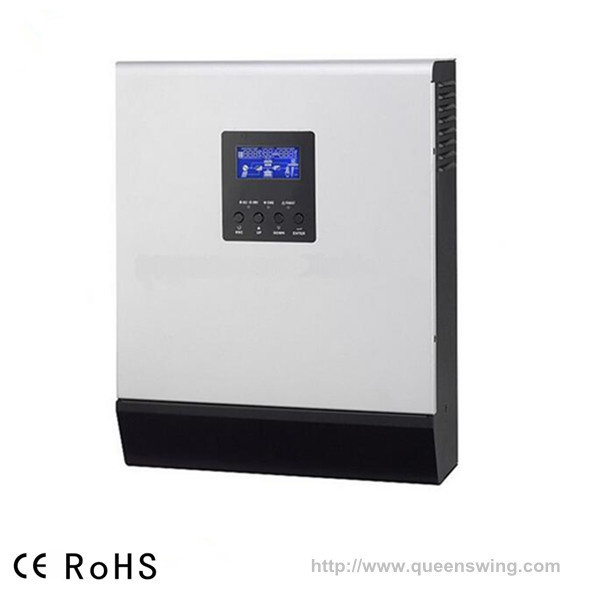

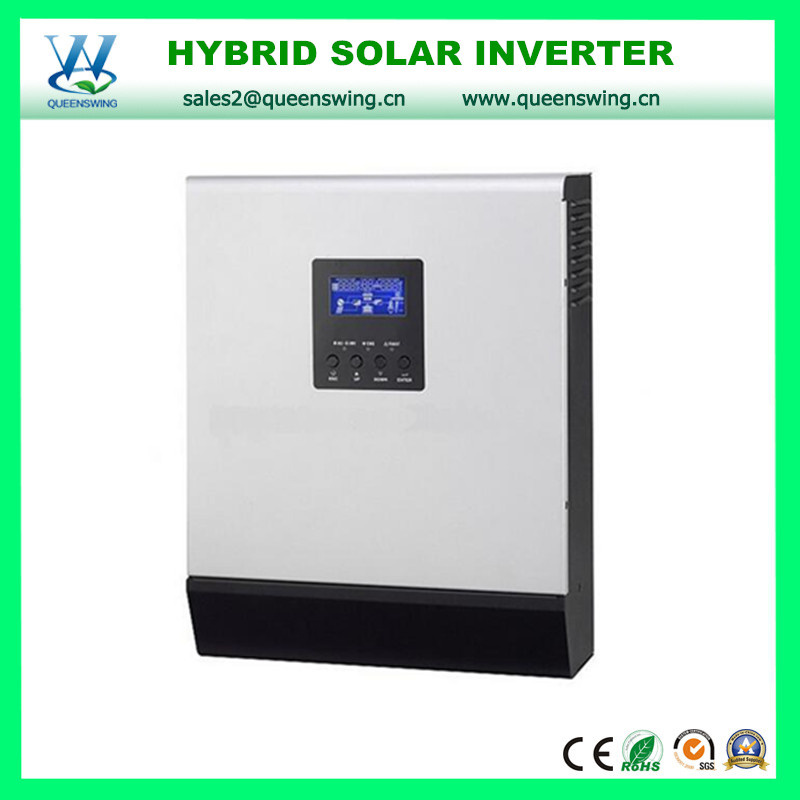

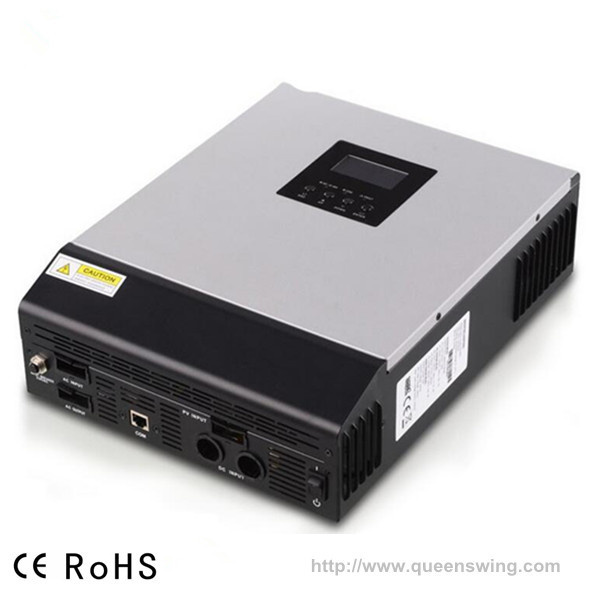

Solar System 24V 220V 2kVA 50A PWM Controller Pure Sine Wave Hybrid Solar Inverter (QW-2kVA2450)

Name: Solar System 24V 220V 2kVA 50A PWM Controller Pure Sine Wave Hybrid Solar Inverter (QW-2kVA2450)
Brand: all-electronics-online.com
SKU: 720244662
Availability: InStock
Rating: 4.5 (150 reviews)

Price:	US $ 168-183.85/Piece
Min Order:	10/Piece
Pay Type:	T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	QW-2KVA2450
Rated Power:	1000va/800W
Waveform:	Pure Sine Wave
Solar Controller:	50A PWM
DC Input:	24V
Selectable Voltage Range:	170-280 VAC (for Computers) 90-280 VAC
Transfer Time:	10 Ms / 20 Ms
AC:	230 VDC
Keyword:	Hybrid Solar Inverter
AC Charge Current:	30A
Standby Power Consumption:	2W

Product Description

Solar System 24V 220V 2kVA 50A PWM Controller Pure Sine Wave Hybrid Solar Inverter(QW-2KVA2450)

Product snapshot:
Model : 1-5KVA
Nominal Voltage : 220/230VAC
Nominal Frequency : 50/60HZ
Output Power Factor: 0.8

Key Features:
Pure sine wave inverter
Cold start function
Auto restart while AC is recovering
Overload and short circuit protection
Optional remote panel available
Selectable charging current based on applications
Configurable AC/Solar input priority via LCD setting
Compatible to mains voltage or generator power
Smart battery charger design for optimized battery performance

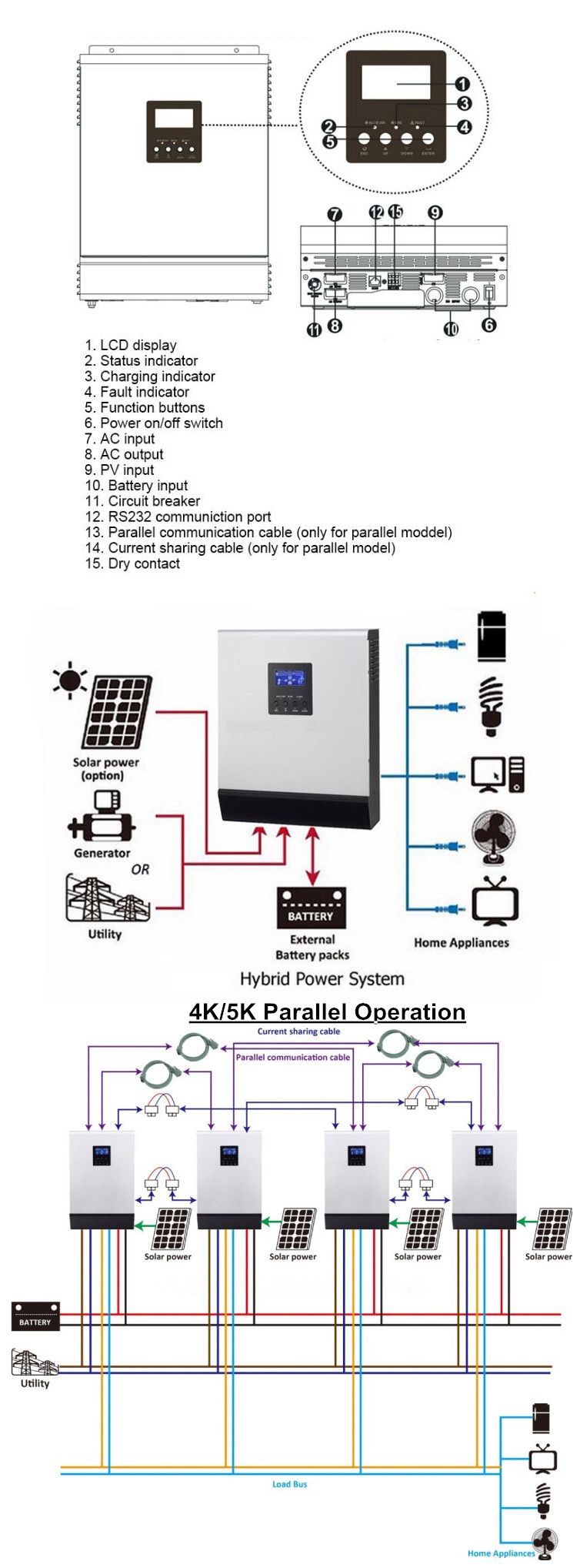

Parallel operation with up to 6 units only available for 4KVA/5KVA
Selectable input voltage range for home appliances and personal computers

Single phase output up to 24kw using 6 units

Technical Data

1-5KVA HYBRID SOLAR INVERTER BUILT IN PWM SOLAR CHARGE CONTROLLER
Model	1K-12V	2K-24V	3K-24V	4K-48V	5K-48V
Rated Power	1000VA/800W	2000VA/1600W	3000VA/2400W	4000VA/3200W	5000VA/4000W
INPUT
Voltage	230VAC
Selectable Voltage Range	170-280 VAC(For Personal Computers) 90-280 VAC(For Home Appliances)
Frequency Range	50 / 60Hz (optional)
OUTPUT
AC Voltage Regulation(Batt. Mode)	230 VAC ± 5%
Surge Power	2000VA	4000VA	6000VA	8000VA	10000VA
Efficiency(Peak)	93%
Transfer Time	10 ms (For Personal Computer) 20 ms (For Home Appliances)
Waveform	Pure Sine Wave
BATTERY & AC CHARGER
Battery Voltage	12 VDC	24 VDC	24 VDC	48 VDC	48 VDC
Floating Charge Voltage	13.5 VDC	27 VDC	27 VDC	54 VDC	54 VDC
Overcharge Protection	15 VDC	30 VDC	30 VDC	60 VDC	60 VDC
Maximum Charge Current	10A/20A	20A or 30A	20A or 30A	60A	60A
SOLAR CHARGER(OPTION)
Charging Current	50A
Maximum PV Array Open Circuit Voltage	40 VDC	60 VDC	60 VDC	105 VDC	105 VDC
Standby Power Consumption	1W	2W	2W	2W	2W
PHYSICAL
Dimension, D x W x H(mm)	420x350x180	420x350x180	420x350x180	540x400x210	540x400x210
Gross Weight(kg)	6.5	8.35	8.85	11.0	12.0
OPERATING ENVIRONMENT
Humidity	5% to 95% Relative Humidity(Non-condensing)
Operating Temperature	0ºC - 55°C
Storage Temperature	-15ºC - 60°C
Product specifications are subject to change without further notice
