| Prod Model: |
DC Solar Cable |
| Rated Voltage U0/U: |
1/1 Kv AC; 1.5/1.5 Kv DC |
| Maximum Voltage: |
1.2kv (AC), 1.8kv (DC) |
| Short Circuit Temperature: |
200 C/5 Sec |
| Application: |
Connecting Photovoltaic System Inside and Outside |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
DC Cable |
| Insulation Material: |
XLPE |
| Certification: |
SGS |
| Wire Core Material: |
Stranded Tinned Copper Conductor |
| Model: |
PV Cable |
| Brand: |
Hongda |
Product Description

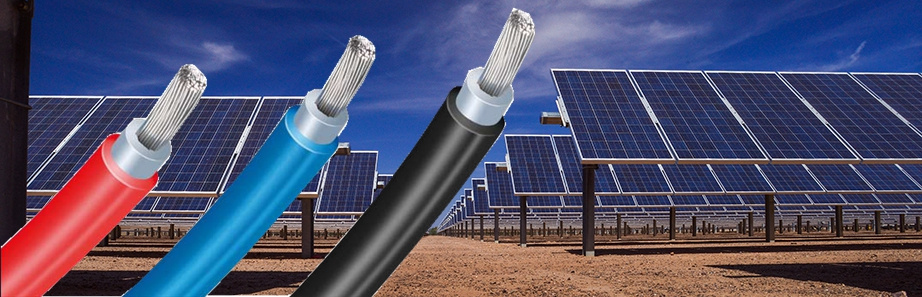

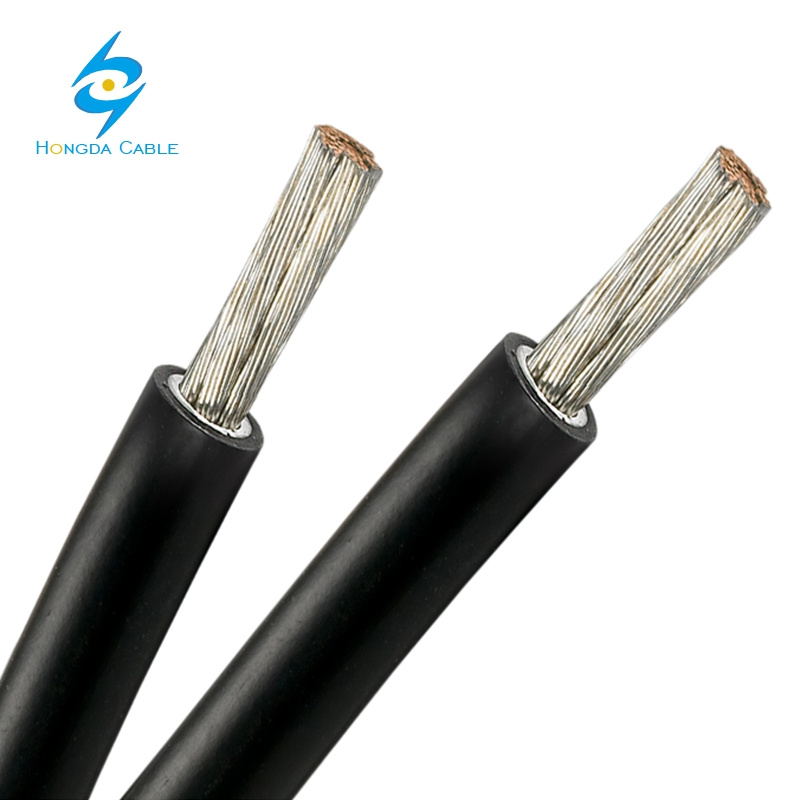

Solar System Photovoltaic Power Cable DC Solar Cable
Applications
These cables are designed for connecting photovoltaic system components inside and outside of buildings and equipment with high mechanical requirements and extreme weather conditions.
Standards
DIN EN 50618 (H1Z2Z2-K)

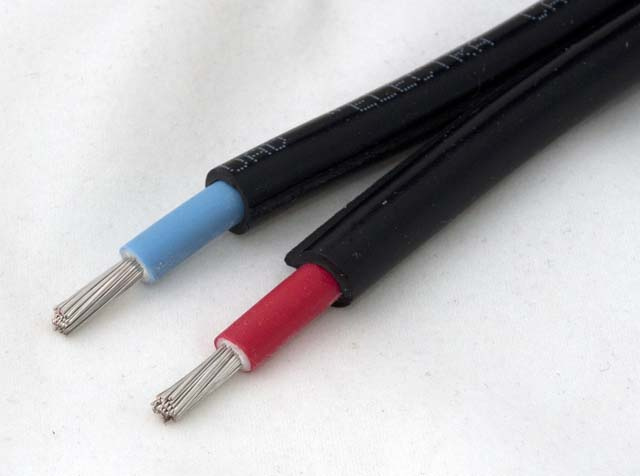

Construction
 |  |

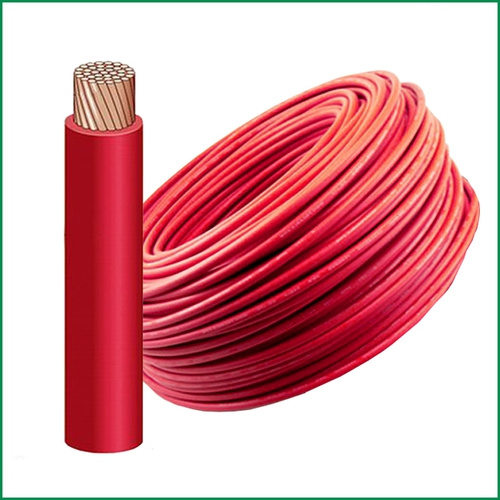

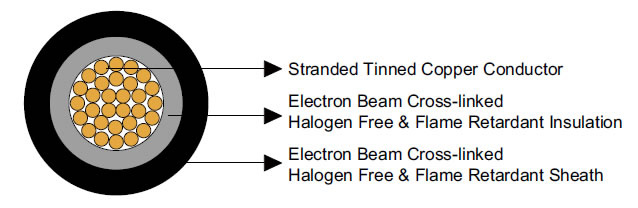

| Conductor | Stranded copper conductor per DIN VDE 0295 and IEC 60228 Class 5. |
| Insulation | Electron beam cross-linked, halogen free and flame retardant compound. |
| Sheath | Electron beam cross-linked, LSZH and flame retardant compound, Black. |
Electrical Properties
| Rated Voltage U0/U | 1/1 kV AC; 1.5/1.5 kV DC |
| Maximum Permitted DC Voltage | 1.8 kV DC (conductor/conductor, non earthed system, circuit not under load) |
| Insulation Resistance | 1000 MΩ-km |
| Spark Test | 6000 Vac (8400 Vdc) |
| Voltage Withstand | 6500 Vac for 5 minElectron |
Thermal Properties
| Maximum Voltage | 1.2KV (AC), 1.8KV (DC) |
| Ambient Temperature | -40ºC ~ +90ºC |
| Maximum Temperature At Conductor | 120ºC (20000h) according to IEC/EN 60216-1 |
| Short Circuit Temperature | 200ºC/5 sec |
| Thermal Endurance Test | According to EN 60216-2 (temperature index +120° C) |
| Damp-Heat Resistance | According to EN 50618, Table 2with 85% humidity(test acc. to EN 60068-2-78) |
Mechanical Properties
| Minimum Bending Radius | 4×OD (fixed), 5×OD (flexing) |
| Dynamic Penetration | According to Acc. to EN 50618, Annex D,Meets requirements of EN 50618. |
| Tensile Strength And Elongation Of Insulation And Jacket | 250ºC |
| Anticipated Period Of Use | 25 years |
| Ovality | ≤15% |
Chemical Properties
| Ozone Resistance | According to EN 60811-403(25ºC,24h,(250 to 300) × 10-4%) ;Method B: EN 50396(40ºC,72h,55%RH, (200 × 10-6%) |
| Weathering- UV Resistance (Resistance on sheath) | Tensile strength and elongation at break after 720h (360 Cycles) of exposure to UV lights (acc. to EN 50289-4-17, Method A According to HD 605/A1) |
| Ammoniac resistant |
| Very good resistance to oils and chemicals |
| High wear and robust, abrasion resistant |
Dimensions and Weight
| No. of Cores × Nominal Cross Section | No. of Stranding | Nominal Conductor Diameter | Nominal Insulation Thickness | Nominal Sheath Thickness | Nominal Overall Diamater | Nominal Weight |
|---|
| No. ×mm^2 | | mm | mm | mm | mm | kg/km |
|---|
| 1×1.5 | 30/0.25 | 1.58 | 0.70 | 0.80 | 5.4 | 40 |
| 1×2.5 | 50/0.25 | 2.04 | 0.70 | 0.80 | 5.9 | 50 |
| 1×4.0 | 56/0.30 | 2.59 | 0.70 | 0.80 | 6.6 | 70 |
| 1×6.0 | 84/0.30 | 3.17 | 0.70 | 0.80 | 7.4 | 80 |
| 1×10 | 78/0.40 | 4.07 | 0.70 | 0.80 | 8.8 | 130 |
| 1×16 | 128/0.40 | 5.22 | 0.70 | 0.90 | 10.1 | 200 |
| 1×25 | 199/0.40 | 6.51 | 0.90 | 1.00 | 12.5 | 290 |
| 1×35 | 279/0.40 | 7.71 | 0.90 | 1.10 | 14.0 | 400 |
| 1×50 | 396/0.40 | 9.00 | 1.00 | 1.20 | 16.3 | 550 |
| 1×70 | 360/0.50 | 10.8 | 1.10 | 1.20 | 18.7 | 750 |
| 1×95 | 475/0.50 | 12.6 | 1.10 | 1.30 | 20.8 | 970 |
| 1×120 | 608/0.50 | 14.2 | 1.20 | 1.30 | 22.8 | 1220 |
| 1×150 | 756/0.50 | 15.8 | 1.40 | 1.40 | 25.5 | 1510 |
| 1×185 | 925/0.50 | 17.4 | 1.60 | 1.60 | 28.5 | 1850 |
| 1×240 | 1221/0.50 | 20.4 | 1.70 | 1.70 | 32.1 | 2400 |
Other specification can produce depending on customer require.
Why Choose Us ?1. We have a large production base, and advanced production equipment
2. Have an competitive price and high quality
3. Excellent after-sale service
4. Free issue:packaging list,invoice
5. Powerful technology team
6. Strict quality assurance system and perfect testing means
7. Advanced process equipment
8. Delivery on time
9. Our cable sales to Middle East,Africa,Russia,Southeast Asia, etc.
10.We have a good reputation in the overseas
FAQQ: Are you trading company or manufacturer ?A: We are factory.
Q: How long is your delivery time?A: Generally it is 5-10 days if the goods are in stock. or it is 10-20 days if the goods are not in stock,
it is according to quantity.
Q: Do you provide samples ? is it free or extra ?A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?A: 30% T/T in advance,70% T/T balance before shipment
*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!
Any needs or question, please contact me Mobile:+86-15838290725 , we will be more pleasure to service you.
We are looking forward to your inquiry and nice cooperation.
Henan Hongda Cable Co., Ltd. Located in No. 3, Changping Road, ZhanDian District, Jiaozuo, Wuzhi. Our factroy established in March of 2004. Our owns registered capital of RMB Fifty-one million six hundred and eighty thousand. Our company covers an area of 100, 000 square meters, including 50, 000 square meters of building area, and has more than 120 staff members and professional workers accounting for one third. Our fixed assets of 90, 000, 000. We can provide more than 100 varieties, tens of thousands of specifications of wire and cable, with 10000 km annual production capacity.
Henan Hongda Cable Co. Ltd. Is the original Zhengzhou Hongda Cable Co. Ltd. Established enterprise expansion. The company is committed to system R&D, design, manufacturing, marketing and service of cable products, We mainly aim at managing cross-linking XLPE insulated power cables, PVC insulated power cables, plastic insulated control cables, insulated overhead cables, and stranded aluminum and ACSR. At present, the cables' biggest cross area is 800 square meters with a maximum electric power of 35KV. The company has more than 70 (sets) domestic and oversea-leading production and testing equipment.

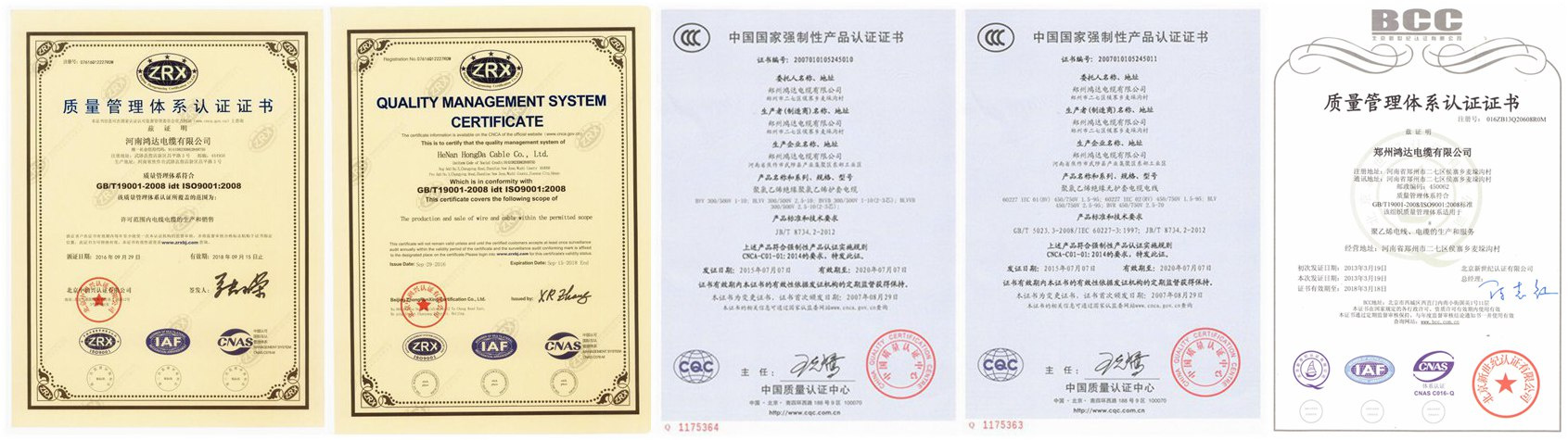

Our company's products have passed the ISO9001 Quality Management System Certification, the products also passed China Compulsory Certification (3C certification).
