| Prod Model: |
KXBG |
| Application: |
Wet Film, Dry File, Solder Mask |
| Light Source Style: |
Cold Light LED |
| Exposure Time: |
10-35 Seconds Adjustable |
| Effective Exposure Area: |
1240mm*680mm |
| Cooling System: |
Water Cooling and Efficient Air Cooling |
| Machine Size: |
2450*1840*1700mm |
| Machine Weight: |
1100kg |
| Optical Glass: |
Mylar Film and Glass |
| Base Board Thickness: |
0.075-3.2mm |
| Product Name: |
Competitive Price PCB UV Exposure Machine |
| Page: |
Double Faced |
| Automatic Grade: |
Automatic |
| Product Type: |
PCB |
| Feature Size: |
50um |
Product Description

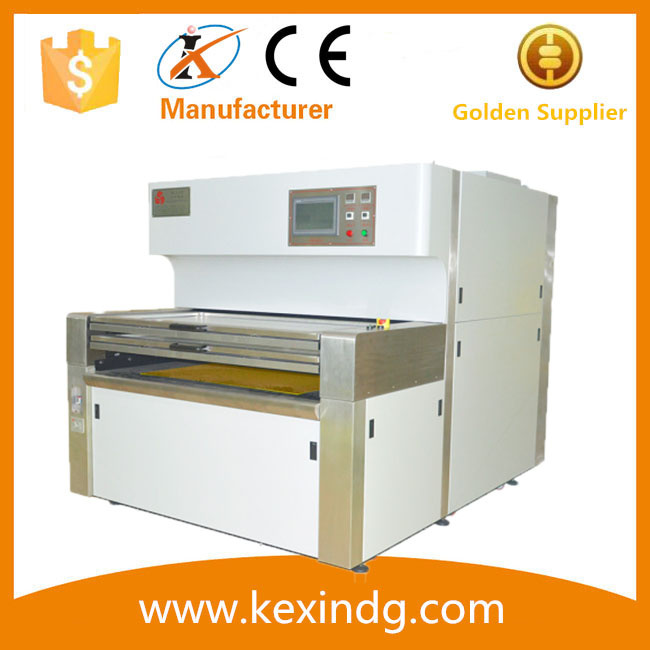

Popular Overseas Competitive Price PCB UV Exposure Machine | SPECIFICATIONS FOR HC-1268R2W |
Power | power | w | 8000 |
| voltage | V | 220 |
| frequency | HZ | 50 |
Main performance parameters | light source type | UV-LED | 2 |
| Effective exposure size | mm | 1240*680 |
| Machine size | mm | 2450*1840*1700 |
| | Machine weight | KG | 1100 |
| Substrate thickness | mm | 0.075-10 |
| Line resolution | um | 50/50 |
Configuration | Exposure mode | Double exposure |
| Time of exposure | 10-35S |
| Can exposure | Dry film /wet film / solder resist |
| | Exposure energy control | 0-100% adjustable / exposure time adjustable |
| cooling system | constant temperature water cooling |
| | optical glass | Mylar +glass |
| | vacuum degree | ≤ -90kap (adjustable) |
Main Features1) have photosensitive in double -face.design for single and double -face exposure
2) exposure control,LED light,cooling,vacuum , and electronic control system
3) using automatic instant light way ,LED light combination way with multiple sets of switching mode wet film, dry file, solder mask integration make the work piece reach the best exposure condition
4)light cooling use chiller indirect cooling way,take away the heat make by the LED light,exposure table use clean indoor air for cooling.
Pre-Sales Service
* Inquiry and consulting support.
* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery| Packaging |
| Size | 2500(L) * 1860 (W) * 1900(D) |
| Weight | 1200Kg |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
Company IntroductionDongguan Kexin Electron Co.,Ltd, was a top machine parts supplier in PCB drill/route industry, famous for its product quality and considerate aftersale service promise. We had been this line over 10 years.
We mainly supply PCB drilling routing machine parts, like Pluritec, posalux, schmoll, excellon, Jevco, Hitachi, Jager, precise and Taliang, Lih Song, Anderson and so on, as well as PCB drilling and milling machine.
Main products cover CNC drilling routing machine, cnc V-score machine, led exposure machine, screen printing machine, used giga spindle, HAL machine, cnc drilling machine, target drilling machine, film punching machine, bearing, shaft assy, collet, pressure foot assembly, tool pod, Ac servo motor, servo drive, ball screw, linear guide,routing brush, cylinder, tool cassette, DLR station, collet key, v-score blade.....
