Solder Pins Connector Ffa 1s - Plug 2 Way Circular Plug of Lemo

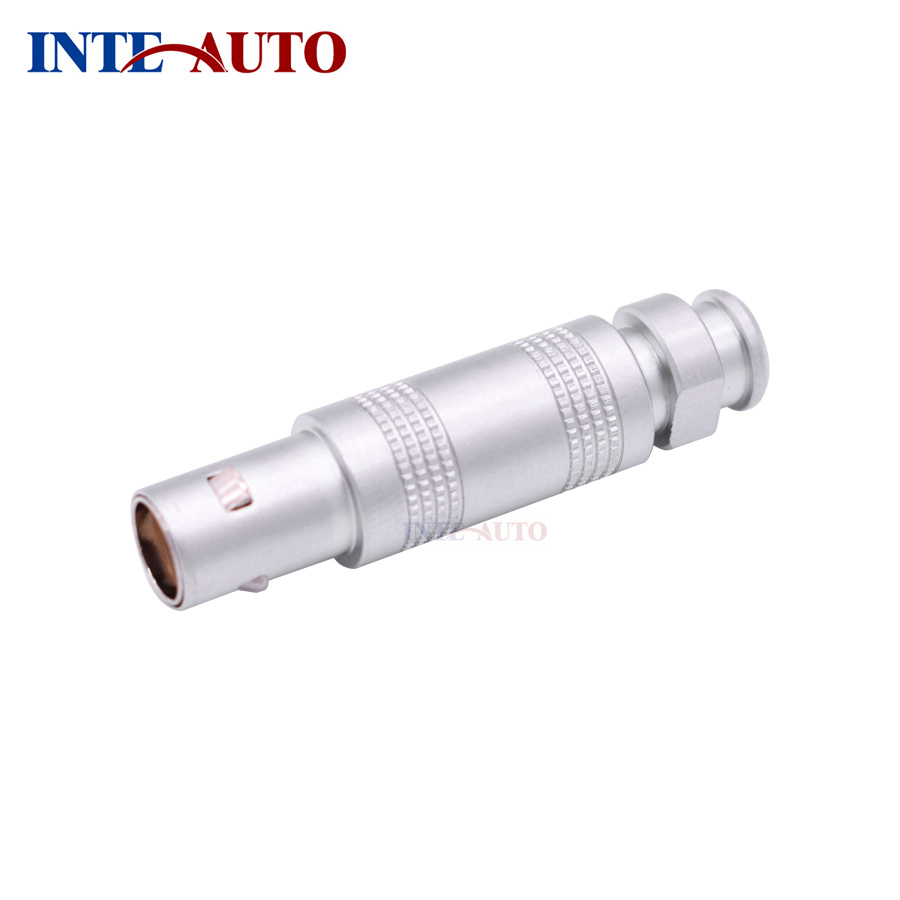

Name: Solder Pins Connector Ffa 1s - Plug 2 Way Circular Plug of Lemo
Brand: all-electronics-online.com
SKU: 731739582
Availability: InStock
Rating: 4.8 (90 reviews)

Price:	US $ 8-10/Piece
Min Order:	5/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	INT13-FFA. 1S. 302. CLAD40Z
IP Degree:	IP50
Insulator Material:	PTFE
Number Of Contacts:	2 Pole
Lead Time:	Inventory
Sample:	Free
Company:	Factory/Manufacturer
Contacts Type:	Solder
HS Code:	8547909000

Product Description

1S series 2 pins connector
Model(FFA). .Series(00…3S).Contacts. Straight Plug, cable collet, and nut for fitting a bend relief;

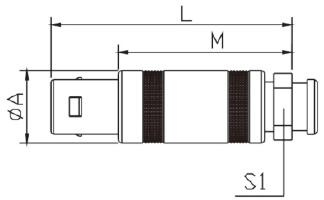

Reference		Dimension
Model	Series	L	A	M	S2
INTFFA	00S	26	6.4	18	6
INTFFA	0S	34.5	9	24.5	7
INTFFA	1S	42.5	12	31.5	9
INTFFA	2S	52	14.8	40	12
INTFFA	3S	61	17.8	46	14

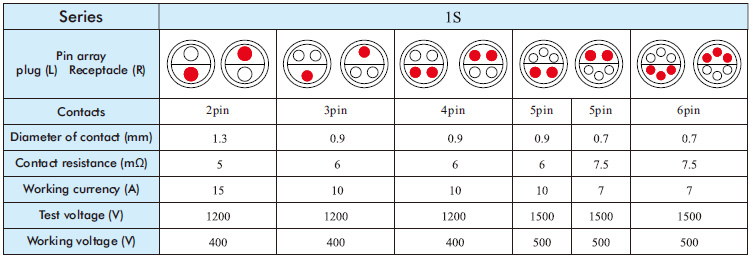

Insulator specs for S series:

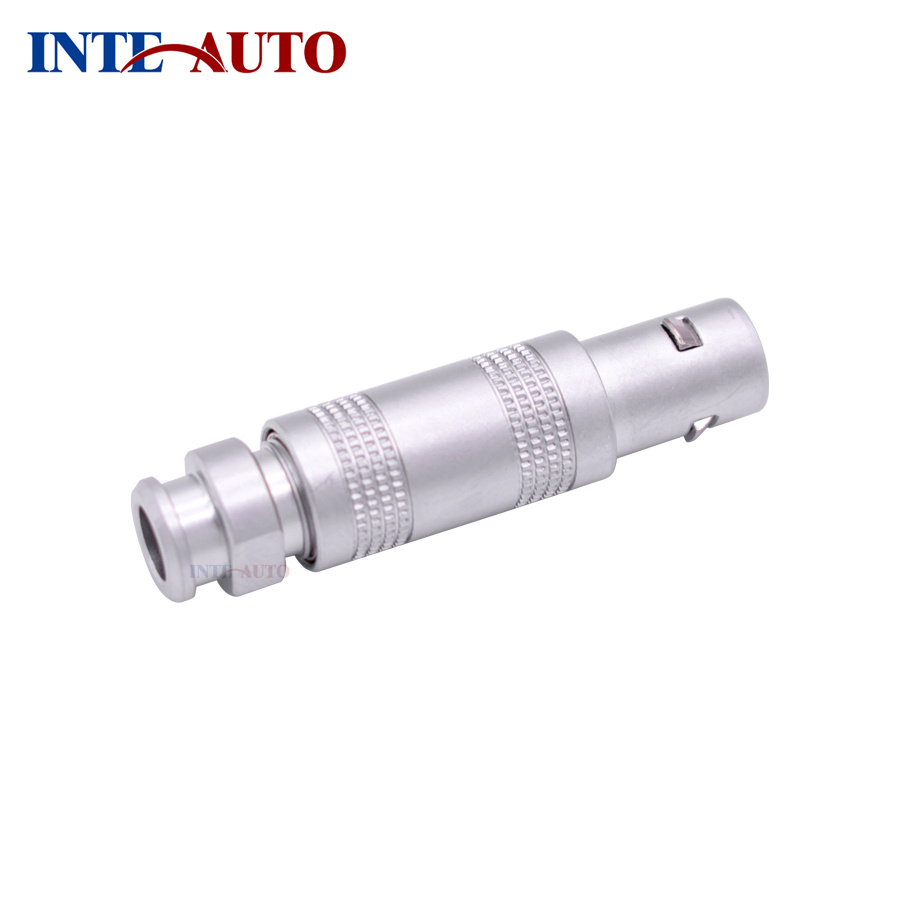

Product Photo Details:

S series connectors have main features as follows:
1.Security of the Push-Pull self-latching system
2.Solder or print contacts (straight or elbow)
3.Unipole types transmitting current up to 230 A and multipole types with up to 6contacts
4.Polarization by stepped insert (half-moon) fitted with male and female contacts
5.60° screening for full EMC shielding.

Technical characteristics:
Mechanical and Climatically
1. Endurance: > 5000 mating cycles;
2. Humidity : up to 95% at 60 ºC;
3. Temperature range: -45 ºC, +125 ºC;
4. .Resistance to vibration : 15 g[10 HZ-2000HZ];
5. Shock resistance: 100 g ,6 MS;
6. Salt spray corrosion test : > 48h;
7. Protection index (mated) : IP 50.

Industry Application:
This connector is widely used in test and measurement, industry control, AV system, Broadcast and communication, Audio, Video multimedia and other fields.

INTE-AUTO design, manufacture and distribute high performance push-pull connector and cable assembly solutions. Known for their quality and ruggedness, our products prove to be reliable in the most demanding environments. Helping solve the original brand's high cost and long lead time.

INTEAUTO Certifications &Contact INFO

INTE-AUTO is located in ShenZhen China, dedicate to designing, manufacturing and distributing high performance push-pull connectors and cable assembly solutions. With high efficient modern machinery and equipments for tooling & prototyping, cable cutting, soldering, crimping, plastic injection molding, testing and manual assembly lines, We can supply the same quality as original brand connectors and small customised connectors, our products proved reliability in the most demanding environments because of high quality & good durability.

Products Range:
B series-For Test Equipment, Electronic, Electricity, Medical, Car.
K series-For Outdoor Equipment, Military Equipment.
F series-For Military Equipment, Transportation.
S series-For Audio/Video, Microphone.
E series-For Outdoor Equipment.
P series-For Medical Equipment.
SP series-For LED screen

INTEAUTO Core Competencies:
-High performance push-pull connectors.
-Complete cable assembly solutions.
-Sealed and hermetic connector solutions.
-Lightweight and compact connectors.
-High flexibility of product configurations.
-Standard solutions or customized development.
-Reliable solutions for demanding environments.
-Specialized advice and supporting
-High quality industrial processes.
-Competitive price & stable production
-Trusted by high-end industries.
-Certified TUV CE and RoHS.
-World-class customer service.

Electrical Connectors for Main Industry:
-Machine Manufacturer Industry.
-Vehicle testing facilities.
-Military and Aerospace.
-Test and Measurement.
-Nuclear Technology.
-Industrial Control.
-Medical apparatus.
-Military Industry.
-Communications.
-Automotive.
-Audio/Video.
-Power/Oil & Gas.
