| Prod Model: |
RHT-AISG |
| Connector Type: |
Circurlar Connector |
| Series: |
M16 Connector |
| Coupling: |
Thread |
| Orientation: |
Straight |
| Protection Degre: |
IP67 |
| Body: |
Brass/Zinc Alloy |
| Plating: |
Nickel |
| Contact: |
Brass, Nickel/Gold/Silver Plating |
| Contact Count: |
4/6/8 |
| Warranty: |
12 Months |
Product Description

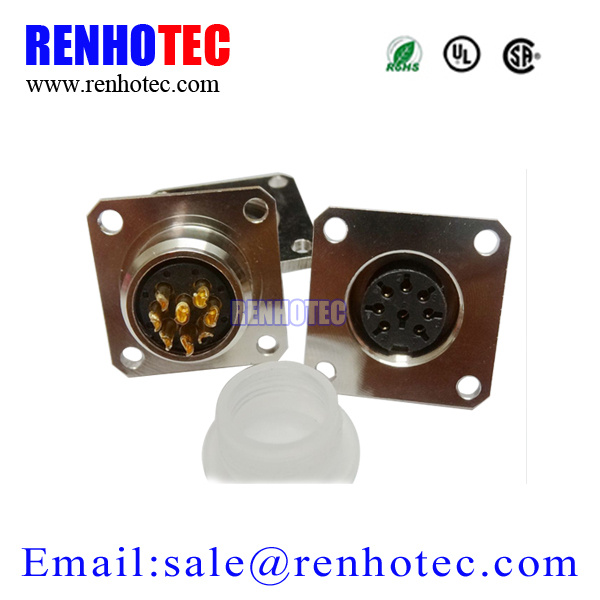

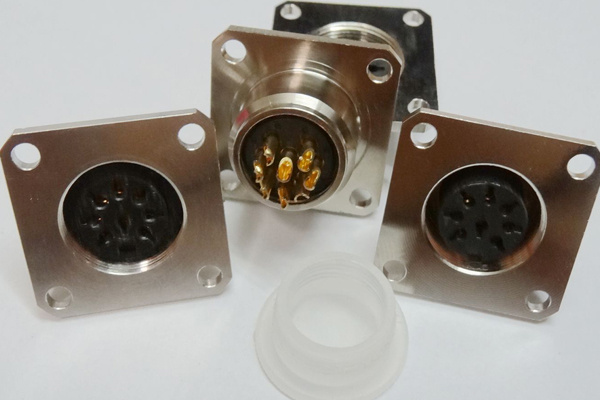

Solder Type Female Panel Mount Circular M16 Connector with 4 Hole Flange
Product Features:
High quality AISG Male connectors designed for industrial use.
8 contacts, screw coupling DIN connectors can interchange with Amphenol C 091 A /B/D & Binder 423 series.
Meet DIN45326 standard.
EMI protected and IP 67 proof.
M16 Locking.
Main applications AISG Male connectors are industrial controls, data processing, instrumentation, medical devices, telecommunication network and equipment, plus outdoor and marine application.
AISG Cable connector main applications are 3G, Tower Mounted Amplifier, Base Stations.
Renhotec offers many types of AISG M16 connector. Male Panel Mount M16 connector, M16 circular cable connector, Square Flange AISG M16 Connectors, Chassis Mount M16 Electrical Connector,etc. If you can't find the exact model you need, please don't hesitate to contact us!
Technical Specification:
| Material and Finish |
| shell and contact | copper alloy |
| Insulator and PG9 screw | Plastic |
| Cable clamp | Zinc copper Alloy |
| Contact Plating | Gold plated |
| Other Metal Plating | Nickel Plated |
| Electrical |
| Rated Voltage | 110V |
| Rated current | 5A/40°C |
| Contact resistance | 5m ohm |
| Rated impluse withstand voltage | 1000V |
| Mechanical |
| Connecting type | Thread with M16*0.75 |
| Protection | IP67 |
| Mechanical operation | 500 mating cycles |
| Suitable cable | OD:6mm-8mm |
Package:Normal packing: 100 pcs per tray or polybag ,800pcs per carton.
Private packing and label service are available as per your requirement.Shipment:1. The parts from us are sure to have quality warranty,and they are double tested before shipping.
2. The items can be sent within 7-10 working days after the payment reaches us,except for mass process, we will confirm the delivery in advance.
3. We can send your order by UPS/DHL/TNT/ FedEx. Pls contact us directly and we will use your preferred ways.
Payment:
We support payment of T/T, Paypal, West Union, etc.
Welcome to contact us! We are the factory Manufactures of electronic components in China, Your best connector parner!
