Solderless Male CCTV RCA Plug with Plastic Boot (CT5028)

Name: Solderless Male CCTV RCA Plug with Plastic Boot (CT5028)
Brand: all-electronics-online.com
SKU: 790326045
Availability: InStock
Rating: 5 (54 reviews)

Price:	US $ 0.1-0.25/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	CT5028
Connector Type:	RCA Plug
Body:	Zinc Alloy, Nickel Plated
Material:	Zinc Alloy, Nickel Plated
Net Weight:	9g/Piece
Boot:	Rubber
Applications:	CCTV Surveillance System
Type:	Generally Coaxial Connector
Application:	Zinc Alloy, Nickel Plated
Interface Type:	RCA
Brand:	Chinasky

Product Description

Solderless Male CCTV RCA Plug with Plastic Boot (CT5028)

Description:
CCTV RCA Male Solderless Connector with Boot

Material:
Body:zinc alloy, nickel plated
center pin:zinc alloy, nickel plated
Boot:rubber
Net Weight: 9g/piece

Application:
An RCA connector is a plug and a jack designed for use with coaxial cable for frequencies ranging from the very lowest up to several megahertz. An RCA connector is sometimes known as a phono plug and jack.
The plug shell is slotted rather than threaded, to facilitate quick insertion to, and removal from, the female jack or receptacle. Contact is maintained by physical pressure between the slotted shell of the plug and the smooth cylindrical barrel of the jack. The plug shell is connected to the outer conductor, or shield, of the coaxial cable, normally at electrical ground. The center pin of the plug is connected to the cable center conductor, which carries the signal. In the jack, the barrel is grounded and the center hole is plated inside to conduct the signal.
RCA connectors are suitable for audio-frequency (AF) applications. They are also used in radio-frequency (RF) systems at low and medium frequencies, and at power levels up to approximately 100 watts. At higher frequencies or higher power levels, larger connectors are necessary. RCA connectors are designed for cables with small outside diameters (less than 6 or 7 mm) and are intended for indoor use only.

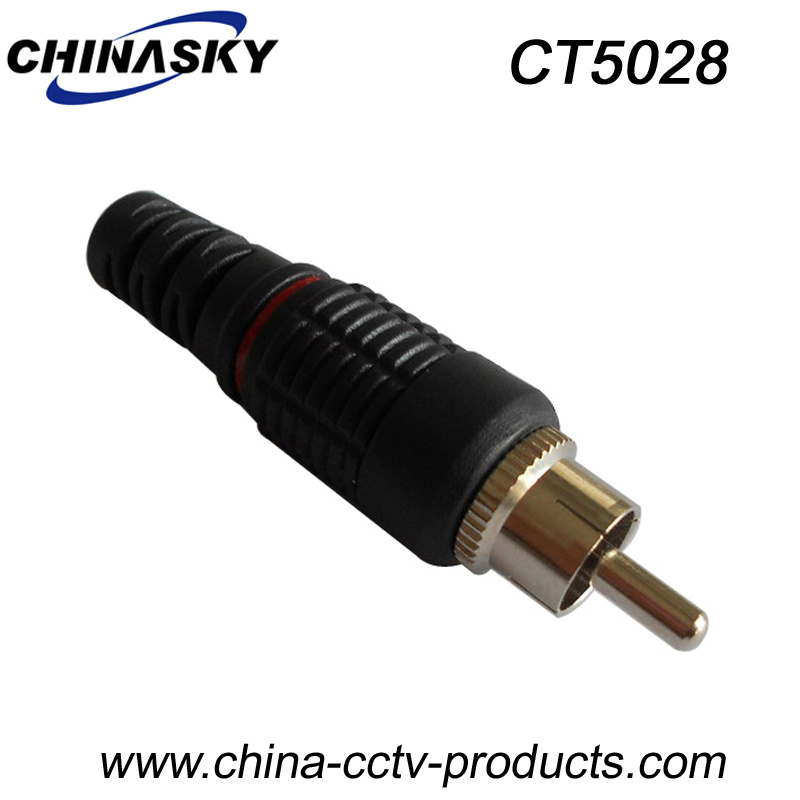

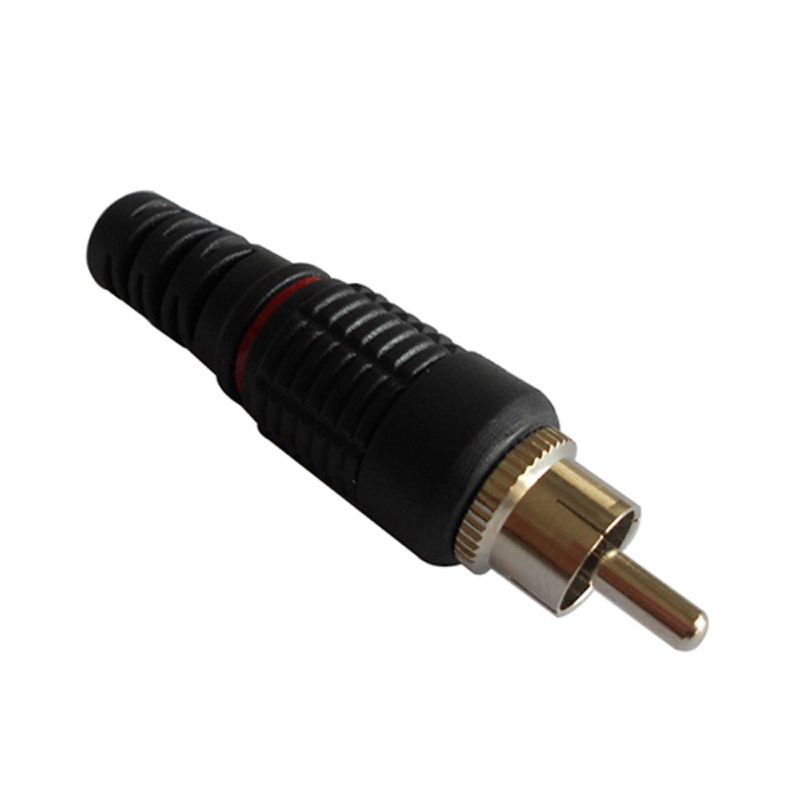

Photos of Solderless Male CCTV RCA Plug with Plastic Boot (CT5028)
