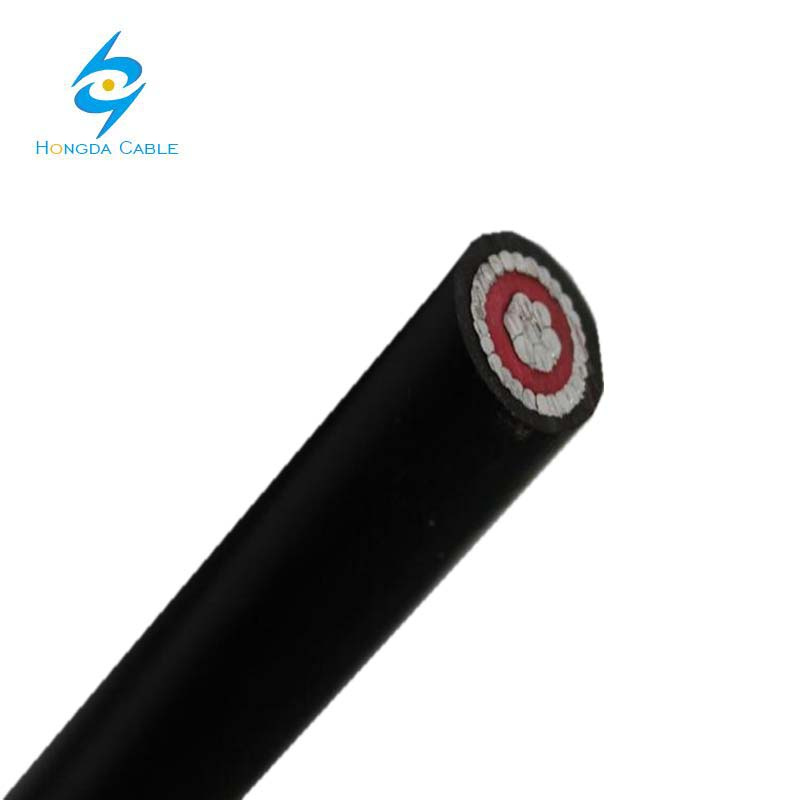

Solid Core Concentric Aluminum Power Cable

Name: Solid Core Concentric Aluminum Power Cable
Brand: all-electronics-online.com
SKU: 732715342
Availability: InStock
Rating: 4.6 (123 reviews)

Price:	US $ 0.5-0.96/Meter
Min Order:	1000/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	YJLV72
Color:	as Your Need
Application:	Underground
Voltage:	Low and Medium Voltage Cable
Current:	DC & AC
Insulation Material:	XLPE
Certification:	CCC
Brand:	OEM/Hongda

Product Description

ITEM	SPECIFICATION (PARTICULARS	UNIT	Data
1	Insulation Voltage	V	600/1000
2	Conductor size	mm²	16
3	Phase Conductor material	N/A	Hard drawn Aluminium conductor -Single core
4	Insulation Material	N/A	XLPE
5	Earth wire material type	N/A	Bare Aluminium conductor
6	Rip Chord	N/A	Nylon
7	Reference Standards	N/A	SANS 1507, NRS 063, IEC 60502/228 ESI 09-7
8	Phase conductor Insulation thickness	mm	1.0
	Construction (Phase conductor)
9	Structure	mm	Single core
10	Insulation Thickness	mm	1.0
11	Reference Insulation O.D	mm	7.1
	Construction (Earth Wire)
12	Structure	Numbers	12
13	Wire structure	N/A	12/1.7
	Construction (Pilot/Communication Wires)
14	Structure	mm²	4X0.5
15	Reference Insulation O.D	mm	1.13
16	Conductor material	N/A	Copper
17	Insulation Material	N/A	LLPDE/XLPE
18	Number of conductors	Numbers	4
	Construction (Sheath)
19	Nominal Thickness	mm	1.6
20	Reference Insulation O.D	mm	14.5
21	Sheath Material	N/A	LLPE Black UV stable/HQ PVC
	Insulation material colours
22	Phase conductor	N/A	Red
23	Pilot wires (04)	N/A	Red, Green, White, Blue
24	Sheath	N/A	Black
	Performance (Electrical Characteristics)
25	Phase Conductor - Maximum resistance at		≤1.91
26	Earth Wires - - Maximum resistance at		≤7.40
27	Pilot Wires - Maximum resistance at 20		≤36

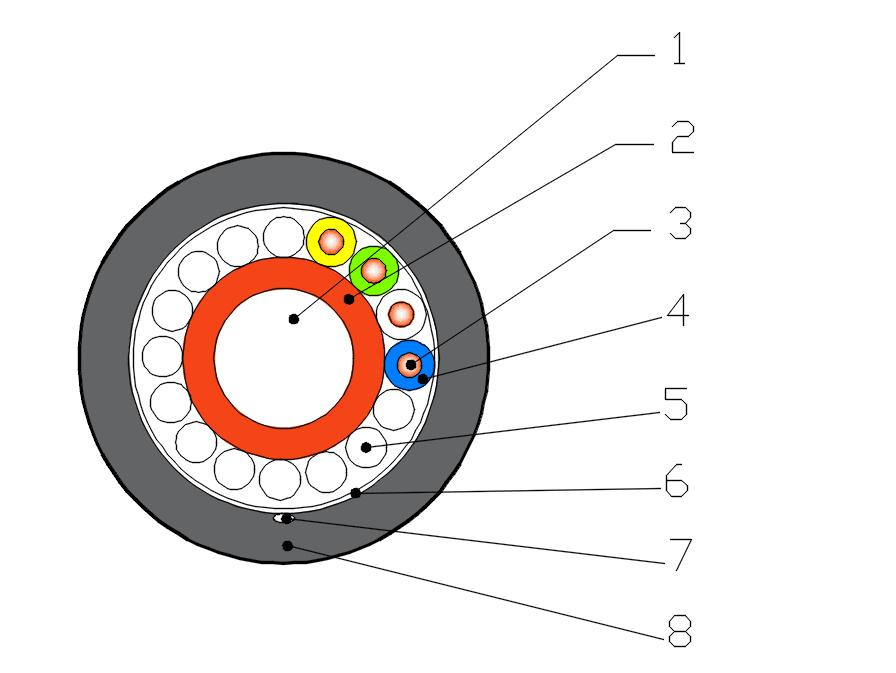

1.Phase conductor:Solidal 16sqm aluminum wire (diameter 4.50mm)
2.Insulation :XLPE (nominal thickness :1.0mm,color :red)
3.Pilot core plain annealed copper wire 0.5sqm(diameter 0.8mm )
4.Pilot core insulation diameter min 1.13(the actual approximation :1.7mm) LLDPE
5.Neutral conductor :solidal aluminum wire (12/1.31)
6.Binder tape :non-hygroscopic tape
7.Ripcord
8.Sheathed:LLDPE (nominal thickness :1.6mm, color black )

Henan Hongda Cable Co., Ltd. Located in No. 3, Changping Road, ZhanDian District, Jiaozuo, Wuzhi. Our factroy established in March of 2004. Our owns registered capital of RMB Fifty-one million six hundred and eighty thousand. Our company covers an area of 100, 000 square meters, including 50, 000 square meters of building area, and has more than 120 staff members and professional workers accounting for one third. Our fixed assets of 90, 000, 000. We can provide more than 100 varieties, tens of thousands of specifications of wire and cable, with 10000 km annual production capacity.

Henan Hongda Cable Co. Ltd. Is the original Zhengzhou Hongda Cable Co. Ltd. Established enterprise expansion. The company is committed to system R&D, design, manufacturing, marketing and service of cable products, We mainly aim at managing cross-linking XLPE insulated power cables, PVC insulated power cables, plastic insulated control cables, insulated overhead cables, and stranded aluminum and ACSR. At present, the cables' biggest cross area is 800 square meters with a maximum electric power of 35KV. The company has more than 70 (sets) domestic and oversea-leading production and testing equipment.

Our company's products have passed the ISO9001 Quality Management System Certification, the products also passed China Compulsory Certification (3C certification).

Our company insists on the principle of "Taking high and new technology as guide and being based on modern management". Our products sell well all over the world and the main reason is that we attach great importance to business honesty. We sincerely hope to be your partner.
