Solid Kx6 PVC Foil Shield PVC Jacket Coaxial HD Satellite Cable for TV Antenna Wire

Solid Kx6 PVC Foil Shield PVC Jacket Coaxial HD Satellite Cable for TV Antenna Wire
Price: US $ 0.01-0.1/Meter
Min Order: 10000/Meter
Pay Type: L/C,T/T
Prod Model: KX6
Jacket Color: Green or Customized
Length: Customized
Application: Submarine Cable
Conductor Material: BC/CCS/CCA/TC/CU/CCAG
Cover Material: PVC
Certification: ETL and Ce(CPR)
Type: Kx
Wire Core Material: Bare Copper
Model: Kx6
Brand: Shengda

Product Description

-------------------------------------------------------PRODUCT----------------------------------------------------
[General]

1. Name:  Solid Kx6 PVC Foil Shield PVC Jacket Coaxial HD Satellite Cable for TV Antenna Wire
2. Item Code: KX6
3. Characteristics:
    1) High velocity of propagation, low attenuation, low return loss;
    2) Perfect connecting cable for digital video and audio signals for the highest quality image;
    3) Perfect cable for satellite TV & high speed internet;
    4) Durable & flexible PVC jacket is ideal for running cable through dry wall and over drop ceilings girders;
    5) Allows for bending cable without damaging the quad shielded insulated wiring.
4. Certificate: UL, ETL, CE, RoHS, EVPU
,CCC.
5. Picture

[Specification]

CONSTRUCTION
Inner Conductor
Stranded bare copper
7*0.20(+/-0.008)mm
DielectricMaterialSolid PE
Diameter3.70(+/-0.12)mm
Outer ConductorBraidBare copper
Formation6*16*0.12mm(+/-0.008mm),
lay=23.0(+/-3)mm
Coverage77(+/-5)%
SheathMaterialPVC
ColourGreen Pal6016
Diameter6.10mm(+/-0.20mm)
MarkingKX 6A C93-550 75OHMS
Frequency50cm
Ink Colourwhite

[Electrical Characteristics]

Characteristic Impedance75 Ohms
Velocity of Propagation 66%
Capacitance66 PF/m
Return Loss≥22 dB
Operation Temp-20~+80ºC

[Attenuation at 20ºC]

Frequency (MHz)102001000N/AN/AN/A
Maximum(dB/100m) 5.018.145.0N/AN/AN/A

[Min.Bending radius]

Fixed Laying 30mm
Mobile Laying60mm

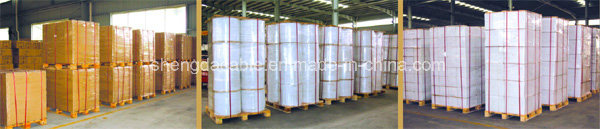

[Packing]


-------------------------------------------------------COMPANY----------------------------------------------------
[Overview]

[Workshop]

[Storehouse]

[Trade Show]


-------------------------------------------------------CONTACT----------------------------------------------------

Shengda Cable Co Ltd
Address: No.100, Changbao West Rd, Ronggui, Shunde, Foshan, Guangdong, China
Website: www.shengda-cable.com

Contact: Derek Li
Tel: 86-757-2638-9090
Fax: 86-757-2662-5464
Cell: 86-139-2487-1973

Shengda Cable Co Ltd, formerly known as Shun Fat Electric Manufactory, is affiliated to Shun Fat Innovations Limited, a company incorporated in Hong Kong. Located in Pearl River Delta, the most dynamic region in China Mainland, Shengda enjoys the benefits of what a center of advanced manufacturing and modern service industries brings.

Established in 1985, Shengda has over 300 skilled workers and a team of marketing and engineer experts. In October 2006, Shengda moved its office and factory into Shunde High Tech. Industrial Park, the most famous high tech. Industrial center in China. Shun Fat has a factory site of over 40, 000 square meters. In its 20, 000- square- meter gardenesque workshop, there are series of integrated production appliances, among which are 4 physical foaming machines, 4 PVC Jacket extrusion machines, 2 machines for production of alarm and security cables. There are also over 400 sets of braiding machines, 100 of them are of high speeding and the remaining are of multi-function. To make sure the quality control mechanism works effectively, Shengda is equipped with various kinds of testing instrument and facilities.

Shengda manufactures wide range of products from coaxial cables to security cables with a capacity of over 250, 000 kilometers and annual turnover of nearly RMB100 million. Its products meet standard globally and have been certified or approved by ISO9001, , CCC for China, UL & ETL for US, CSA for Canada, CE & LVD for Europe.

Shengda takes pride in its human assets, its professional staff with caring minds to serve and to improve. Shengda and its working team are making continuous efforts to pursue perfectionism in providing products and service.
