Solid State Relay 3DA4880

Name: Solid State Relay 3DA4880
Brand: all-electronics-online.com
SKU: 694718115
Availability: InStock
Rating: 4.8 (68 reviews)

Price:	Negotiable
Trade Terms:	FOB
Min Order:	100/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

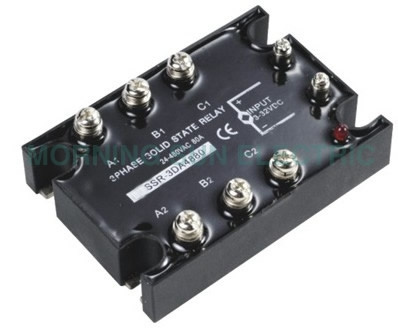

Three-phase AC Solid Relay SSR-3DA4880

control voltage	3-32VDC 80-250VAC
control current	4-20mA 3-20mA
reverse voltage	32VDC /
guarantee close voltage	1VDC 30VAC
guarantee open voltage	3VDC 80VAC
load voltage	24-480VAC
load max current	60-200A
load minni current	0.05A
breakover voltage	≤ 1.6VAC
output leakage current	≤ 8mA
medium withstand voltage	≥ 2500VAC
insulating resistance	≥ 100MΩ
switching time	≤ 10mS
frequency range	50-60hZ
operating temperature	-20-70 degree
load current safety factor	(resistive load)50-60%
load current safety factor	(inductive load)30-40%

Morning Sun Electrical Co., Ltd. Founded in 1995, located in the Liushi Town - "Electric Capital", mainly producing Micro switch, Contactor, MCB, MCCB, Auto-Air-Conditioner Parts and Thermostats and related products, which have been sold to Europe, North America, South America, Middle East, Southeast Asia and so on. Based of the "Good quality, competitive price, timely shipment and nice service", now getting regular repeated orders and enjoying the good reputation among our customers.

"Morsun" is prepared and willing to cooperate with any friends from all over the customers for the mutual benefits and bright tomorrow!
