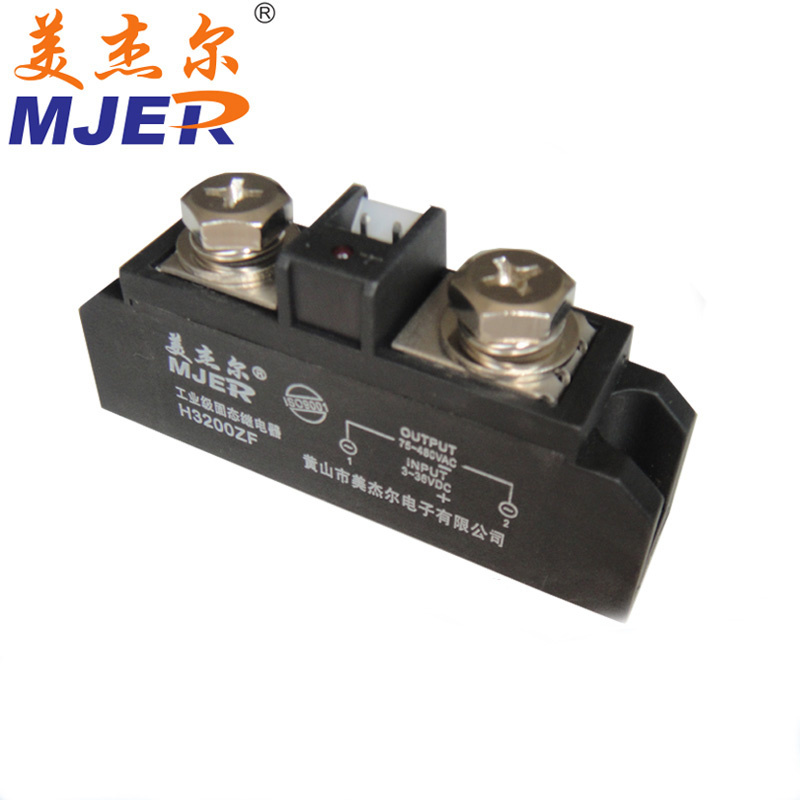

Solid State Relay Industrial Grade SSR H3300zf
| Price: |
US $ 3.2-6/Piece |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T,Paypal |
| Prod Model: |
SSR H3300zf |
| Life: |
Over 1 Year |
| Certificates: |
Ce, ISO9001:2008 |
| Payment: |
T/T, L/C, Paypal |
| Lead Time: |
15days |
| MOQ: |
5PCS |
| Manufacturing Technology: |
Optoelectronic Semiconductor |
| Material: |
Compound Semiconductor |
| Type: |
Intrinsic Semiconductor |
| Package: |
Standard |
| Application: |
Motor Control, Lighting Control |
| Model: |
Mdq |
| Brand: |
Mjer |
Product Description
Product Description
H3 are power line relays allowing 10 to 150amps switching power,with voltage ratings from 280 to 480VAC,H3
sereis is dual SCR power hybrid technology provides highly efficient thermal management for greatly increased cyclic life.
Features
High power and high current high performance/low cost circuit design;
Logic compatible current regulated input.4000Vrmsoptical isolation
Both"zero voltage"&phase controllable"radom switching"versions high voltage(1200Vpk)versions for 480Vrms service
LED-indicator for control input,Control voltage range:4 to 16Vdc or 3 to 32Vdc
Industry standard"SCR Modules"packages.
| Type | Id | IF(AV) | VDRM VRRM | IDRM IRRM | VTM/ITM | IGT | VGT | IH | dv/dt | di/dt | Tjm | Viso | Outline |
| | A | A | V | mA | V/A | mA | V | mA | | | | V(AC) | |
| MTQ60 | 60 | 30 | 400~2600 | 8 | 1.45/90 | 100 | 2.5 | 100 | 800 | 50 | 125 | 2500 | 102A |
| MTQ90 | 90 | 45 | 400~2600 | 15 | 1.45/135 | 100 | 2.5 | 100 | 800 | 100 | 125 | 2500 | 102A |
| MTQ130 | 130 | 65 | 400~2600 | 25 | 1.45/195 | 150 | 2.5 | 100 | 800 | 100 | 125 | 2500 | 103A-1 |
| MTQ150 | 150 | 75 | 400~2600 | 25 | 1.50/225 | 180 | 2.5 | 100 | 800 | 100 | 125 | 2500 | 103A-1 |
| MTQ200 | 200 | 100 | 400~2600 | 30 | 1.50/300 | 180 | 2.5 | 100 | 800 | 100 | 125 | 2500 | 104A |
| MTQ300 | 300 | 150 | 400~2600 | 40 | 1.50/450 | 180 | 2.5 | 100 | 800 | 100 | 125 | 2500 | 104A |
| MTQ450 | 450 | 225 | 400~2600 | 40 | 1.50/675 | 200 | 3 | 100 | 800 | 100 | 125 | 2500 | 104A |
How to Order?1. Please let us know what kind of model.2. Proforma invoice (PI) will be sent to you.3. Please check and confirm the PI.4. Once we confirmed the order, please pay the discussed deposit soon.5. After getting your deposit payment, all goods will be sent to you in by sea or air within one month.6. OEM/ODM is welcomed.Terms of Shipping:1. Products are shipped via UPS / DHL / EMS / HK EMS / FedEx / TNT and so on expresses (door to door).2. We Provide Drop shipping Service.3.5 days delivery upon receiving payment if the qty is lower than 1000PCS and it is not customized products.4. In order to ensure you receive your order tax free upon import, we can declare lower value if needed.5. Shipping via EMS. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country.Terms of Payment:1. For bulk order, TT or L/C at sight.2. 30% deposit and 70% against shipping documents.3. Sample order we accept payment such as paypal, western union, visa card.Warranty:1.We provide 2 year quality warranty.2. If the product is defective, please notify us within 3 days of delivery.3. All products must be returned on their original condition, in order to qualify for a refund or exchange of goods .How to contact me:TEL: +86-577-62628176
FAX:+86-577-62628176
Address:Xinguang Road No.75.Yueqing city,Wenzhou ,Zhejiang,325604,China
Company:HUANGSHAN MJER IMP.AND EXP.CO.,LTD
Hangshan MJER Electric Co., Ltd is a professional manufacturer for semiconductors. Our company is located in the ' China Electric Capital' - Liushi, Wenzhou, with convenient transpor tation which is close to Wenzhou airpor t, railway station, and por t. After years of innovation and hard work, our company strictly follows the international standards for scientific research, development, design, and production. We pay great attentions to ever y detailed factor and insist 'keep innovation and pursuit for technological progress' as our principle. We own a professional R&D team with experienced engineers and advanced producing and testing equipments. We keep learning updated new technology abroad and improving our quality. After several years of developing, we have successfully established a multi-level marketing network and the products are sold widely around the world.
The products from our company are strictly under the national standard. We can mainly manufacture: Schottky / fast recover y diode, fast thyristor module, rectifier module, common thyristor module, thyristor, rectifier tube mixing module, non insulated thyristor, ordinar y rectifier module, non insulated thyristor module, non insulated rectifier module, single / three phase rectifier module, bridge rectifier, solid state relay, ZP rectifier tube, KP thyristor, KS bidirectional thyristor, ZX rotating rectifier tube, KX rotating thyristor, SS water cooling radiator, SF air cooling radiator, shunt, core, silicon rectifier, power semiconductor module, the power regulator, motor soft star ter (cabinet), power rectifier assembly series and so on.
All the employees from MJR follow to 'vir tuous talents, integrity work, scientific and technological innovation', 'people-oriented', and 'customer focused' as our philosophy to innovate and develop. We offer first class quality, reasonable price and best ser vice after sale to satisfy the customers for bilingual profits. Our ability is limited, but our creation is unlimited. We will keep working on innovation and constantly surpassing to optimize our own enterprise images. We are willing to establish our relationships with both new and old customers all over the world.
