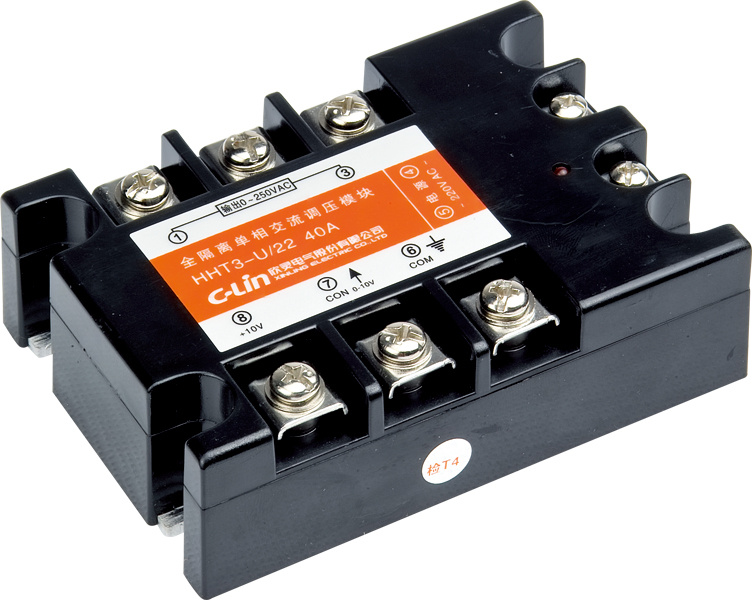

Solid State Relay/SSR (HHT3-U/22 10-100A)

Name: Solid State Relay/SSR (HHT3-U/22 10-100A)
Brand: all-electronics-online.com
SKU: 695447545
Availability: InStock
Rating: 4.6 (115 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	HHT3-U/22 10-100A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Control Voltage:	0-5VDC; 0-10VDC; 4-20mA Adjustment
Load Voltage:	220VAC
Regulate Range:	10-250VAC
Load Current:	10, 20, 30, 40, 100A
Ambient Temp.:	-30centigrade~+80 Centigrade
Dimension:	1067531.5mm

Product Description

Product Description

solid state relay(SSR) is an electronic switch, which contains no moving parts. Its load current is conducted by one or more semiconductors. The types of SSR are photo-coupled SSR, transformer-coupled SSR, and hybrid SSR.
Solid state relays are widely used in testing instruments, displays, power plant, household appliances and automobiles etc.

Specification

Product Model		HHT3-U/22 10-100A(SSR-VA)
Description		Full-isolated single-phase voltage regulation module
Control Mode		0-5VDC 0-10VDC 4-20mA
Load Voltage		220VAC
Voltage-regulation Scope		10-250VAC
Isolation Voltage		Active type	Full isolation
Off-state Leakage Current		less than or equal to 10mA
Output Current		10A, 20A, 30A, 40A, 100A
Transient Voltage		600VAC
On-state Voltage Drop		less than 20VAC
Dielectrics Voltage-resistance		equal to or greater than 2500VAC
Insulation Resistance		500MΩ 500VDC testing
Ambient temperature		minus 30 centigrade to 80 centigrade
Dimensions		106L75W31.5H
Indicated Methods		LED
Installation		Screw fixing
Packing	Inner Box(PCS)	1PCS/paper box
	Outer CTN(PCS)	30PCS
	CTN Size	380215175mm
	Weight	10A: less than or equal to 390g/pcs G. W.: 13kg N. W: 12kg
		40A: less than or equal to 470g/pcs G. W: 15.5kg N. W: 14.5kg
		100A: less than or equal to 540g/pcs G. W: 17.5kg N. W: 16.7kg
Radiator		HH060, HH061, HH062, HH063
Remarks		1. When the load current is greater than 10A, a radiator is necessary; When the load current is greater than 80A, fan is necessary.

		2. When controlling inductive load, a varistor is necessary and its voltage could be 1.6-1.9 times of load voltage

Xinling Electrical Co., Ltd. China was established in 1990. Now we have 10 sub-branch companies, each company is responsible for manufacturing different kinds of electrical products, We have more than 100 cooperation units, and 100 direct distributors, 1000, 000 square meter factory area and 1600 stuffs.

Our company mainly produces mini relay, time relay, solid state relay, electric power relay, temperature controller, kilowatt-hour meter, circuit breaker, AC contactor and some other electrical component which are the first choice of electric net reconstruction. With perfect management system and technical advancement, it strengthens the management of enterprise and promotes product quality. Our company takes prospering national industry as its own responsibilities, works hard developing economy of China to promote enterprise level.

The enterprise has gained ISO9001 and RVA Quality System Attestation(Netherlands), and its products have gained CE attestation (European Community), and UL Attestation and CCC Safety Attestation in China successively, and have been insured by PICC, besides, their quality has been ensured by quality "three guarantee". As a result, its products are sold well in more than 30 provinces and cities of China and are exported to Europe, America, Middle East, South-Eastern Asia, Africa and so on 20 countries and districts. Successively, the enterprise has been given the titles of Star Enterprise of China, Financial AAA Grade Enterprise, Gold Client of Agriculture Bank of China, and Credit Enterprise of Product Quality.

Xinling is ready for creating a magnificent tomorrow together with you!
