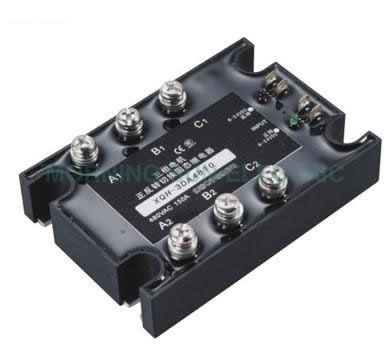

Solid State Relay XQH-3DA4810

Name: Solid State Relay XQH-3DA4810
Brand: all-electronics-online.com
SKU: 694717655
Availability: InStock
Rating: 5 (56 reviews)

Price:	Negotiable
Trade Terms:	FOB
Min Order:	100/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

Three-phase AC normal-rerverse transfer solid relay XQH-3DA4810

control voltage	6-24VDC
reverse voltage	24VDC
load voltage	380VAC
load max current	5-40A
load minni current	0.05A
transit time	0.3s
breakover voltage	≤ 1.6VAC
output leakage current	≤ 1mA
medium withstand voltage	≥ 2500VAC
insulating resistance	≥ 100MΩ
frequency range	50-60hZ
operating temperature	-20-70 degree
load current safety factor	20-30%
