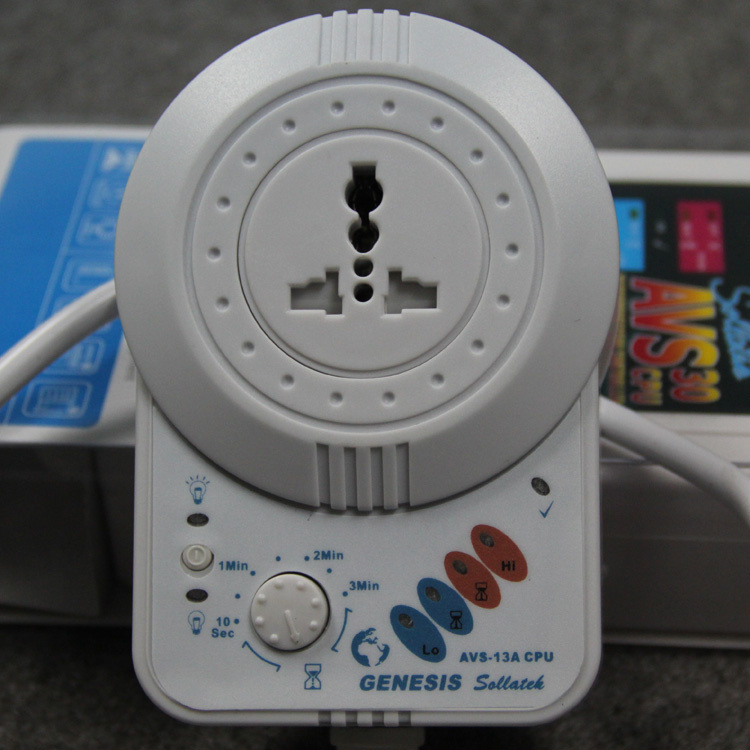

Sollatek Automatic Voltage Switcher Micro (AVS 15A)

Prod Model:	15A
Markets:	South America,Southeast Asia,Africa,Mid East
Surge And Spike Protection As Standard:	Quiet, Unobtrusive Operation
Nominal Voltage:	220V
Under-Voltage Disconnect:	185V
Spike Protection:	380j
Ver-Voltage Disconnect:	260V
Warranty:	5years
Current Type:	AC
Phase:	Single Phase
Frequency:	High Frequency
Brand:	OEM
Usage:	Protect

Product Description

AUTOMATIC VOLTAGE SWITCH:
1.5A, 13A, 15A, 30
2. With or without CPU
3. Colour pack or transparent pack
4. Stable quality

Protects against high and low voltage, brown-outs, power back surges and voltage dips. These conditions are extremely harmful and damaging to electrical and electronic equipment. By disconnecting the power when it's bad and reconnecting automatically on return of normal power, the AVS30 Appliance Guard safeguards and protectsagainst short term and long tem damag to ensure longevity of your appliance.
Reconnection takes place after a start-up delay to protect against frenquent fluctuations.

THE AVS PRINCIPLE:
1. INPUT GOOD----OUTPUT GOOD
2. INPUT BAD-------NO OUTPUT
3. INPUT NOW GOOD----WAIT 10 SECS TO 10 MINS
4. INPUT NOW GOOD----OUTPUT GOOD

DESCRIPTION:
Low power (under-voltage) will damage any refrigeration appliance's compressor and High Power (Over voltage) will damage any electrical or electronic equipment. The AVS is the most complete power protection device combining over-voltage, under-voltage, power-back surges and spikes/surge protection. Additionally, there is a delay when power returns to normal. This will ensure that the appliance is not switched on-off repeatedly during fluctuations nor it is subjected to a massive surge normally experienced when power returns after power cuts. Also accommodating start up / inrush current of 70Amps.
Furthermore, the New Sollatek AVS Micro version has enhanced features allowing the user to set the delay time and monitoring the state of the voltage.
