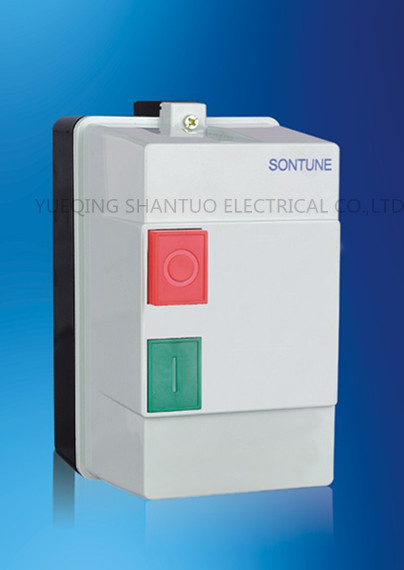

Sontune Se1 Magnetic Starter

Name: Sontune Se1 Magnetic Starter
Brand: all-electronics-online.com
SKU: 817492915
Availability: InStock
Rating: 4.8 (54 reviews)

Price:	US $ 5.4-5.5/Piece
Min Order:	1000/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	SE1
Standard:	IEC 60947-1
Coil Voilage:	24,36,48,110,220,230,240,380,415,440V
Rated Current:	09,12,18,25,32,40,50,65,80,95A
Frequency:	50Hz/60Hz

Product Description

SE1 series Magnetic starteris mainly applied to circuit of AC 50 or 60Hz,voltage up to 550V for far distance making and breaking circuit and frequently starting and controlling motor. It hasthe features of small volume, light weight, low power consumption, high efficiency, safe and reliable performance.

Specification:

Type	Rated Current(A)	Maximum Power AC3 duty (KW)						Type of enclosure	SuitableThermal Relay(A)
Type	Rated Current(A)	220V 230V	380V 400V	415V	440V	500V	660V 690V	Type of enclosure	SuitableThermal Relay(A)
SE-D09	9	2.2	4	4	4	5.5	5.5	IP42 IP65	LR2 D1312 LR2 D1314
SE-D12	12	3	5.5	5.5	5.5	7.5	7.5		LR2 D1316
SE-D18	18	4	7.5	9	9	10	10		LR2 D1321
SE-D25	25	5.5	11	11	11	15	15		LR2 D1322 LR2 D2353
SE-D32	32	7.5	15	15	15	18.5	18.5	IP55	LR2 D2355
SE-D40	40	11	18.5	22	22	22	30		LR2 D3353 LR2 D3355
SE-D50	50	15	22	25	30	30	33		LR2 D3357 LR2 D3359
SE-D65	65	18.5	30	37	37	37	37		LR2 D3361
SE-D80	80	22	37	45	45	55	45		LR2 D3363 LR2 D3365
SE-D95	95	25	45	45	45	55	45		LR2 D3365

Shipping

Our Services:

Competitive price
Continuance Service and support
Good-after service
Quality Reliability and Long Product Life.

Company Information

YUEQING SHANTUO ELECTRICAL CO,LTD.
is one of manufactories that specialize in manufacturing AC CONTACTOR, Thermal Relay and Circuit Breaker, and is located in Liushi.Wenzhou.China

Contact us

Thanks for your reading.If any product meets your need.Welcome to send us an email.We are sure your any information can be attentioned without any delay.

YUEQING SHANTUO ELECTRICAL Co., Ltd. is one of manufactories that specialize in manufacturing AC CONTACTOR, Therminal Relay and Circuit Breaker, and is located in Liushi, Wenzhou, China that called " the Capital of Low Voltage Electronic Products", enjoying convenient transportation access and a beautiful environment. The products have passed CE approvals and strictly comply with IEC standards. The company has advanced detection instruments and strong technical force with strong research and development capability, product constantly updated. The products export Europe, Asia, Southern Amercia, Middle East, Western Africa market. Our manufactory has produced AC contactor and relay about 10years, The products have passed CE certificate.

If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.

On the base of guarrantee the quality, we will try our best to design new model with ourselves patents for the coming years.
