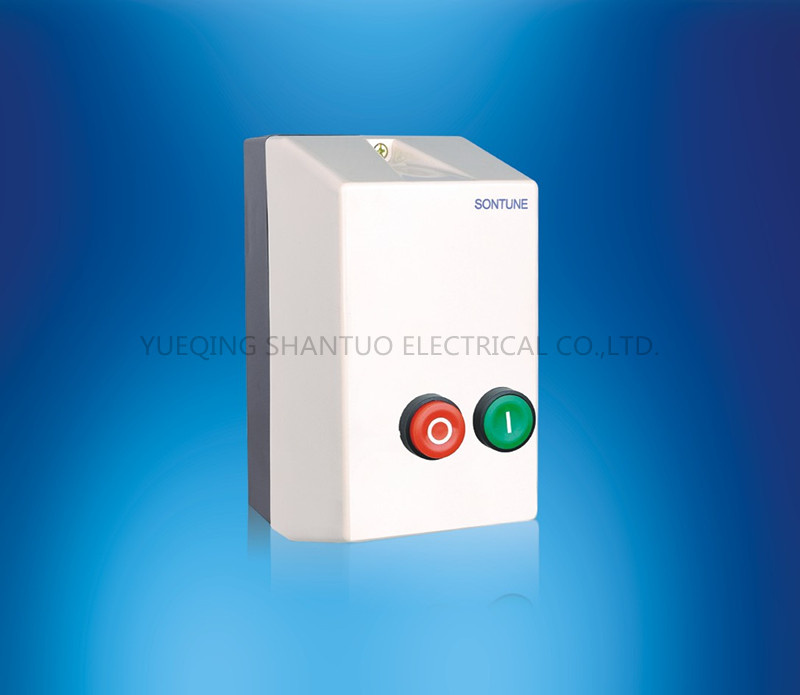

Sontune Se1-N Series (LE1-N) Magnetic Starter

Name: Sontune Se1-N Series (LE1-N) Magnetic Starter
Brand: all-electronics-online.com
SKU: 813866965
Availability: InStock
Rating: 4.3 (134 reviews)

Price:	US $ 5.4-5.5/Piece
Min Order:	100/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	SE1-N
Standard:	IEC 60947-1
Coil Voilage:	24,36,48,110,220,230,240,380,415,440V
Rated Current:	09,12,18,25,32,40,50,65,80,95A
Frequency:	50Hz/60Hz

Product Description

GENERAL
SE1-N series Magnetic starteris mainly applied to circuit of AC 50 or 60Hz,voltage up to 550Vfor far distance making and breaking circuit and frequently starting and controlling motor. It hasthe features of small volume, light weight, low power consumption, high efficiency, safe and reliable performance.

Specifications

Maximum power AC3 duty(KW)						Rated current(A)	Type of enclosure	Code number		Suitable thermal relay(A)
220V 230V	380V 400V	415V	440V	500V	660V 690	Rated current(A)	Type of enclosure	LL (long life)	NL(3) (normal life)	Suitable thermal relay(A)
2.2	4	4	4	5.5	5.5	9	IP42 IP65	SE1-N094.. SE1-N093..	- -	TR2-D1312 TR2-D1314
3	5.5	5.5	5.5	7.5	7.5	12	IP42 IP55	SE1-N124.. SE1-N123..	SE1-N094.. SE1-N093..	TR2-D1316
4	7.5	9	9	10	10	18	IP42 IP55	SE1-N188.. SE1-N185..	SE1-N124.. SE1-N123..	TR2-D1321
5.5	11	11	11	5	15	25	IP42 IP55	SE1-N258.. SE1-N255..	SE1-N188.. SE1-N185..	TR2-D1322 TR2-D2353
7.5	15	15	15	18.5	18.5	32	IP55	SE1-N325..	SE1-N255..	TR2-D2355
11	18.5	22	22	22	30	40	IP55	SE1-N405..	SE1-N325..	TR2-D3353 TR2-D3355
15	22	25	30	30	33	50	IP55	SE1-N505..	SE1-N405..	TR2-D3357 TR2-D3359
18.5	30	37	37	37	37	65	IP55	SE1-N655..	SE1-N505..	TR2-D3361
22	37	45	45	55	45	80	IP55	SE1-N805..	SE1-N655..	TR2-D3363 TR2-D3365
25	45	45	45	55	45	95	IP55	SE1-N955..	SE1-N805..	TR2-D3365

Shipping

Services:

Competitive price
Continuance Service and support
Good-after service
Quality Reliability and Long Product Life.

Company Information

YUEQING SHANTUO ELECTRICAL CO,LTD.
is one of manufactories that specialize in manufacturing AC CONTACTOR, Thermal Relay and Circuit Breaker, and is located in Liushi.Wenzhou.China

FAQ
Q 1. what's the payment term?
A. We accept TT,30% deposit and 70% balance agaisnt copy of BL
Q 2. how's the delivery time ?
A. usually it will take about 25 days for production
Q 3. tell me the standard of package?
A. Normally are cartons, but also we can pack it according to your requirement.
Q 4.Would you accept to use our logo ?
A.If you have good quantity,it absolute no problem to do OEM.
Q5. Can i take some samples?
A: Yes, we support to take samples before place the order. Just feel free to contact with us if you have any requirements.
Q6. Are you original Factory?
A: Yes, we have our own factory .
Q7. How can you make sure the quality of the products?
A: We will accord to international quality standards to inspect every item before leaving our factory.

Contact us

Thanks for your reading.If any product meets your need.Welcome to send us an email.We are sure your any information can be attentioned without any delay.

YUEQING SHANTUO ELECTRICAL Co., Ltd. is one of manufactories that specialize in manufacturing AC CONTACTOR, Therminal Relay and Circuit Breaker, and is located in Liushi, Wenzhou, China that called " the Capital of Low Voltage Electronic Products", enjoying convenient transportation access and a beautiful environment. The products have passed CE approvals and strictly comply with IEC standards. The company has advanced detection instruments and strong technical force with strong research and development capability, product constantly updated. The products export Europe, Asia, Southern Amercia, Middle East, Western Africa market. Our manufactory has produced AC contactor and relay about 10years, The products have passed CE certificate.

If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.

On the base of guarrantee the quality, we will try our best to design new model with ourselves patents for the coming years.
