Sontune St360-40 4p Series RCCB Residual Current Circuit Breaker

Name: Sontune St360-40 4p Series RCCB Residual Current Circuit Breaker
Brand: all-electronics-online.com
SKU: 819826895
Availability: InStock
Rating: 4.9 (25 reviews)

Price:	US $ 2.05-2.15/Piece
Min Order:	3000/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	St360-40 4P
Standard:	IEC 61008
In:	16,25,32,40,,63A
Ue:	230/400V
Pole:	2p4p
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	High-Speed Circuit Breaker
Arc-extinguishing Medium:	Air
Structure:	ELCB
Poles Number:	4
Certification:	CE
Installation:	DIN Rail

Product Description

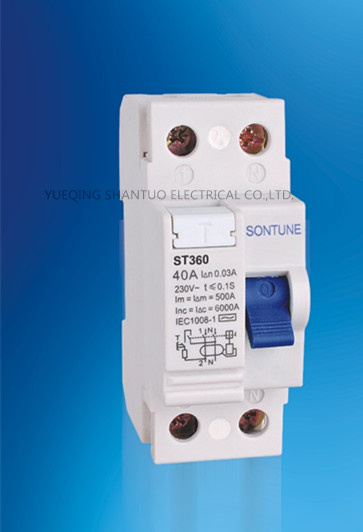

ST360 residual current circuit breaker is in conformity with the standards of IEC61008.It can cut off the fault circuit immediately on the occasion of shock hazard or earth leakage of trunkline.Thus it is suitable to avoid the shock hazard and fire caused by earth leakage.It can be used in circuits up to single phase 240V,three phase 415V,50 or 60Hz.

Product Over View:

1.Provide protection against earth fault/leakage current and function of isolation

2.High short-circuit current withstand capacity

3.Applicable to terminal and pin/fork type busbar connection

4. Equipped with finger protected connection terminals

5.Automatically disconnect the circuit when earth fault/leakage current occurs and exceeds the rated sensitivity

6.Independent of power supply and line voltage, and free from external interference, voltage fluctuation.

Model	Electronic type/magnetic type
Residual Current characterstics	A/AC
Pole No	2P/4P
Rated Current(A)	16A,20A,25A,32A,40A,63A
Rated Voltage(V)	240/415V
Rated residual operating current	10ma,30ma,100ma,300ma,500ma
Rated conditional residual short circuit current	6KA
Electro-machanical endurance	over 4000 cycles

Shipping

Our Services:

Competitive price
Continuance Service and support
Good-after service
Quality Reliability and Long Product Life.

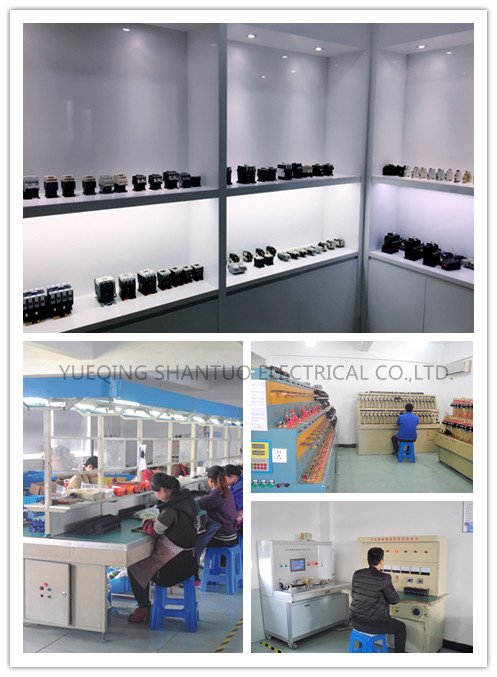

Company Information

YUEQING SHANTUO ELECTRICAL CO,LTD.
is one of manufactories that specialize in manufacturing AC CONTACTOR, Thermal Relay and Circuit Breaker, and is located in Liushi.Wenzhou.China

FAQ
Q 1. what's the payment term?
A. We accept TT,30% deposit and 70% balance agaisnt copy of BL
Q 2. how's the delivery time ?
A. usually it will take about 25 days for production
Q 3. tell me the standard of package?
A. Normally are cartons, but also we can pack it according to your requirement.
Q 4.Would you accept to use our logo ?
A.If you have good quantity,it absolute no problem to do OEM.
Q5. Can i take some samples?
A: Yes, we support to take samples before place the order. Just feel free to contact with us if you have any requirements.
Q6. Are you original Factory?
A: Yes, we have our own factory .
Q7. How can you make sure the quality of the products?
A: We will accord to international quality standards to inspect every item before leaving our factory.

Contact us

Thanks for your reading.If any product meets your need.Welcome to send us an email.We are sure your any information can be attentioned without any delay.

YUEQING SHANTUO ELECTRICAL Co., Ltd. is one of manufactories that specialize in manufacturing AC CONTACTOR, Therminal Relay and Circuit Breaker, and is located in Liushi, Wenzhou, China that called " the Capital of Low Voltage Electronic Products", enjoying convenient transportation access and a beautiful environment. The products have passed CE approvals and strictly comply with IEC standards. The company has advanced detection instruments and strong technical force with strong research and development capability, product constantly updated. The products export Europe, Asia, Southern Amercia, Middle East, Western Africa market. Our manufactory has produced AC contactor and relay about 10years, The products have passed CE certificate.

If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.

On the base of guarrantee the quality, we will try our best to design new model with ourselves patents for the coming years.
