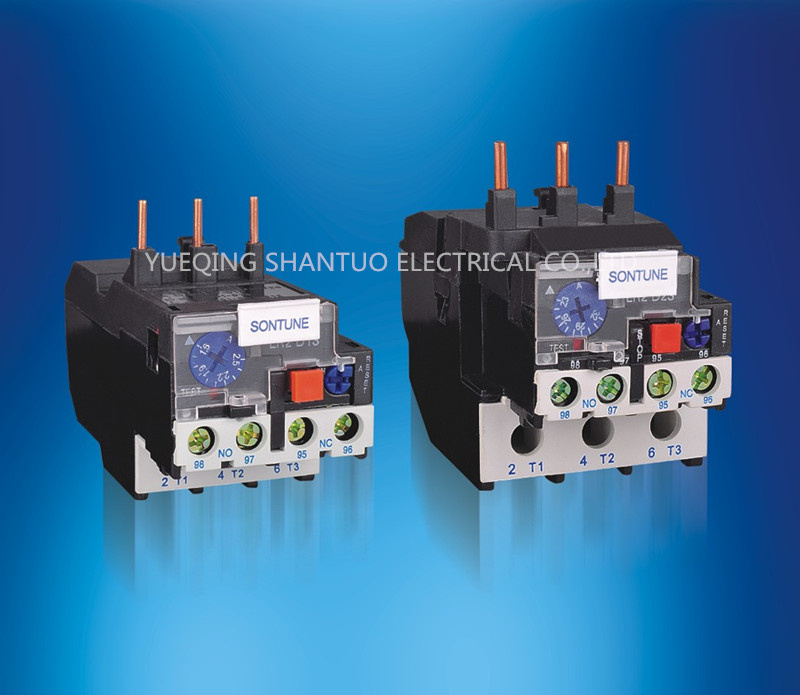

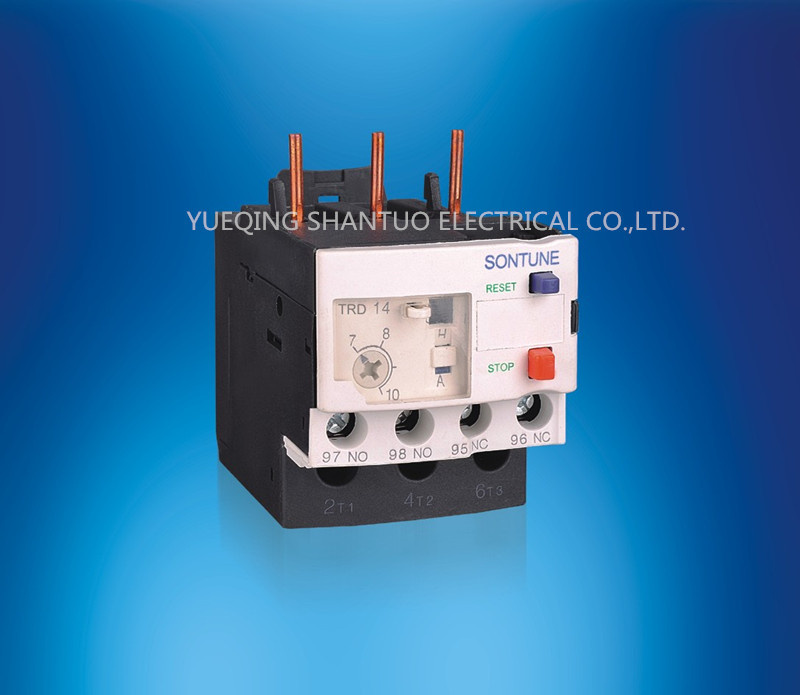

Sontune Trd-D33 Series (LR2-D) Thermal Relay

Name: Sontune Trd-D33 Series (LR2-D) Thermal Relay
Brand: all-electronics-online.com
SKU: 819755775
Availability: InStock
Rating: 4.4 (116 reviews)

Price:	US $ 1.8-2/Piece
Min Order:	1000/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	TRD-D33
Standard:	IEC 60947-1
Coil Voltage:	24, 220, 240, 380, 415V
Rated Current:	0.63-500A
Frequency:	50Hz/60Hz
Pole:	1p2p3p

Product Description

GENERAL
TR2 series of thermal overload relay can be used in the circuit of 50/60 HZ, rated insulation voltage 660 V, rated current 0.1-93A for protecting the phase break when the electric motor is overload , the relay has different mechanism and temperature compensation can be pluged in ST1 series AC contactor,It is the most advanced thermal relay in the nineties in the world the products comply with IEC 60947-4.

Specification:

Type	Rated working current of thermal relay		Thermal component
Type	Rated working current of thermal relay		Rated current(A)	Rated or scale of rated current(A)
TR2-D13	25	TR2-D 1301	0.16	0.1-0.16
		1302	0.25	0.16-0.25
		1303	0.4	0.25-0.4
		1304	0.63	0.40-0.63
		1305	1.0	0.63-1.0
		1306	1.6	1.0-1.6
		1307	2.5	1.6-2.5
		1308	4.0	2.5-4.0
		1310	6.0	4.0-6.0
		1312	8.0	5.5-8.0
		1314	10.0	7.0-10.0
		1316	13.0	9.0-13.0
		1321	18.0	12.0-18.0
		1322	25.0	17.0-25.0
TR2-D23	36	TR2-D 2353	32	23.0-32.0
TR2-D23	36	2355	36	28.0-36.0
TR2-D33	93	TR2-D 3353	32	23.0-32.0
		3355	40	30.0-40.0
		3357	50	37.0-50.0
		3359	65	48.0-65.0
		3361	70	55.0-70.0
		3363	90	63.0-80.0
		3365	93	80.0-93.0

Shipping

Our Services:

Competitive price
Continuance Service and support
Good-after service
Quality Reliability and Long Product Life.

Company Information

YUEQING SHANTUO ELECTRICAL CO,LTD.
is one of manufactories that specialize in manufacturing AC CONTACTOR, Thermal Relay and Circuit Breaker, and is located in Liushi.Wenzhou.China

FAQ
Q 1. what's the payment term?
A. We accept TT,30% deposit and 70% balance agaisnt copy of BL
Q 2. how's the delivery time ?
A. usually it will take about 25 days for production
Q 3. tell me the standard of package?
A. Normally are cartons, but also we can pack it according to your requirement.
Q 4.Would you accept to use our logo ?
A.If you have good quantity,it absolute no problem to do OEM.
Q5. Can i take some samples?
A: Yes, we support to take samples before place the order. Just feel free to contact with us if you have any requirements.
Q6. Are you original Factory?
A: Yes, we have our own factory .
Q7. How can you make sure the quality of the products?
A: We will accord to international quality standards to inspect every item before leaving our factory.

Contact us

Thanks for your reading.If any product meets your need.Welcome to send us an email.We are sure your any information can be attentioned without any delay.

YUEQING SHANTUO ELECTRICAL Co., Ltd. is one of manufactories that specialize in manufacturing AC CONTACTOR, Therminal Relay and Circuit Breaker, and is located in Liushi, Wenzhou, China that called " the Capital of Low Voltage Electronic Products", enjoying convenient transportation access and a beautiful environment. The products have passed CE approvals and strictly comply with IEC standards. The company has advanced detection instruments and strong technical force with strong research and development capability, product constantly updated. The products export Europe, Asia, Southern Amercia, Middle East, Western Africa market. Our manufactory has produced AC contactor and relay about 10years, The products have passed CE certificate.

If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.

On the base of guarrantee the quality, we will try our best to design new model with ourselves patents for the coming years.
