| Prod Model: |
SOOW |
| Conductor: |
Fully Annealed, Stranded Bare Copper, Per ASTM B-1 |
| Insulated: |
Epr |
| Sheathed: |
CPE |
| Size: |
18 - 2AWG |
| Cores: |
2,3 ,4 |
| Products Name: |
Soow |
| Certificate: |
UL |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
AC Cable |
| Certification: |
UL |
| Application: |
Outdoor |
| Insulation Material: |
Rubber or PVC |
| Sheath Material: |
Rubber or PVC |
| Model: |
Soow |
| Brand: |
Rne Da |
Product Description
Soow 600volt Flexible/ Portable Power Cables 3X10AWG
UL no:477374
APPLICATION
TYPE SOOW Cable is for use in heavy-duty industrial applications where flexibility and durability is required. SOOW is designed for extra hard usage on industrial equipment, heavy tools, motor and welding leads, power extensions, portable machinery, sound equipment, portable stage lights, marine dockside power and mining applications. Constructed of color-coded synthetic oil, ozone and water resistant rubber (EPDM) insulation and an oil resistant thermoset chlorinated polyethylene (CPE) jacket, SOOW is rated for indoor/outdoor use.
SOOW flexible rubber cords carry a 600 volt rating. They are also manufactured as a 300 volt rated Junior Service cord designated as SJOOW. Using the key, a SJEOOW cord is a 300 volt (junior service) elastomer plastic oil resistant inner and outer jacket portable cord.
SOOW -
S for Service
O for Oil-resistant insulation
O for Oil-resistant jacket
W for Weather and Water resistance
Applications
- Portable tools
Industrial and processing equipment
Construction equipment
Cranes and hoists
Track systems
Battery chargers
Portable appliances
Small motors and associated machinery
Electrical equipment exposed to oils, solvents, flame, or moisture
STANDARDS & REFERENCES
Type SOOW Cords/Cable meets or exceeds the applicable requirements of the following standards and
specifications:
UL Standard 62 for Flexible Cords
CSA Standard 22.2 No. 49 for Flexible Cords
MSHA flame resistance for mining applications
NEC Article 400
RoHS Compliant
SOOW offers:
• Excellent resistance to oils, acids, chemicals, water, ozone, extreme
temperatures, cuts, tears and abrasion
• Sunlight resistant
• Flame retardant
• Indoor/outdoor rated
• Highly flexible
• Maximum continuous conductor temperature: 90°C DRY
CONSTRUCTION
Conductors: Bare, annealed copper per ASTM B-3 Flexible, bunch-stranded per UL-62
Separator: A paper tape is applied between the conductor and insulation to facilitate stripping.
Insulation: Color coded synthetic rubber (EPDM) oil and water resistant per UL-62
Jacket: Black Chlorinated Polyethylene (CPE)
Cabling: Conductors are assembled round with fillers as needed.
Temperature Range: -40°C to +90°C
Voltage Rating: 600 Volts for SOOW,300 Volts for SJOOW
Data sheet:
Conductor
Stranding | Nominal
Insulation
Thickness | Nominal
Jacket
Thickness | Nominal
Overall
Diameter
(in) | Weight | Ampacity |
n | / | AWG/inch | mil | mil | in | lbs/1000ft | A |
16 | / | 30 | 30 | 60 | 0.33 | 70 | 10 |
16 | / | 30 | 30 | 60 | 0.35 | 80 | 10 |
16 | / | 30 | 30 | 60 | 0.37 | 96 | 7 |
26 | / | 30 | 30 | 60 | 0.36 | 86 | 13 |
26 | / | 30 | 30 | 60 | 0.37 | 99 | 13 |
26 | / | 30 | 30 | 60 | 0.41 | 119 | 10 |
41 | / | 30 | 45 | 80 | 0.49 | 155 | 18 |
41 | / | 30 | 45 | 80 | 0.51 | 179 | 18 |
41 | / | 30 | 45 | 80 | 0.56 | 215 | 15 |
65 | / | 30 | 45 | 95 | 0.56 | 206 | 25 |
65 | / | 30 | 45 | 95 | 0.58 | 239 | 25 |
65 | / | 30 | 45 | 95 | 0.63 | 290 | 20 |
104 | / | 30 | 45 | 95 | 0.62 | 266 | 30 |
104 | / | 30 | 45 | 95 | 0.66 | 316 | 30 |
104 | / | 30 | 45 | 95 | 0.72 | 385 | 25 |
133 | / | 29 | 60 | 110 | 0.83 | 505 | 40 |
133 | / | 29 | 60 | 125 | 0.93 | 646 | 35 |
133 | / | 29 | 60 | 125 | 0.93 | 684 | 35 |
133 | / | 27 | 60 | 125 | 0.95 | 694 | 55 |
133 | / | 27 | 60 | 140 | 1.07 | 885 | 45 |
133 | / | 27 | 60 | 140 | 1.07 | 946 | 45 |
133 | / | 0.0177 | 60 | 140 | 1.09 | 952 | 70 |
133 | / | 0.0177 | 60 | 155 | 1.22 | 1210 | 60 |
133 | / | 0.0177 | 60 | 155 | 1.22 | 1304 | 60 |
133 | / | 0.0223 | 60 | 155 | 1.26 | 1344 | 95 |
133 | / | 0.0223 | 60 | 170 | 1.41 | 1705 | 80 |
133 | / | 0.0223 | 60 | 170 | 1.41 | 1853 | 80 |

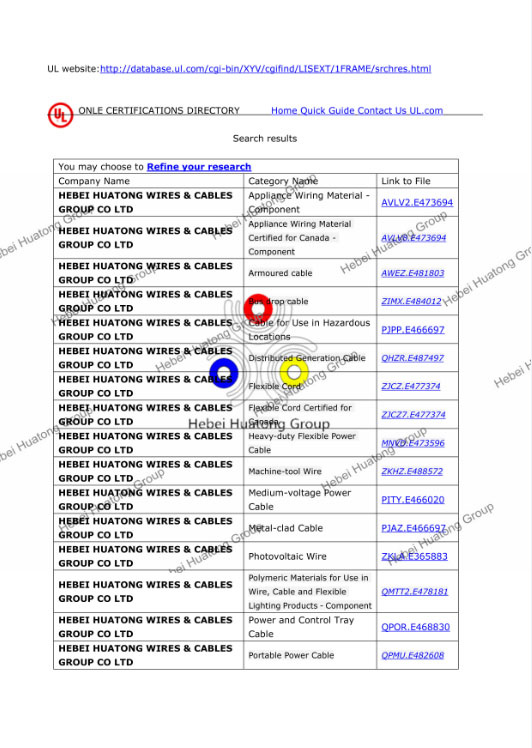

Certificate:
UL Certificate for SOOW CORDS, XHHW,SER,SEU,MC Cable
