Sop Scale Range 1-15MPa Melt Pressure Transducer

Name: Sop Scale Range 1-15MPa Melt Pressure Transducer
Brand: all-electronics-online.com
SKU: 821147045
Availability: InStock
Rating: 4.9 (90 reviews)

Price:	US $ 100-120/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	YLS-100-2
Model:	Yls100
Application:	Injection Molding Machine Extrusion Equipment
Feature:	High temperature
Scale Range:	-0.1~0~1~15 (MPa)

Product Description

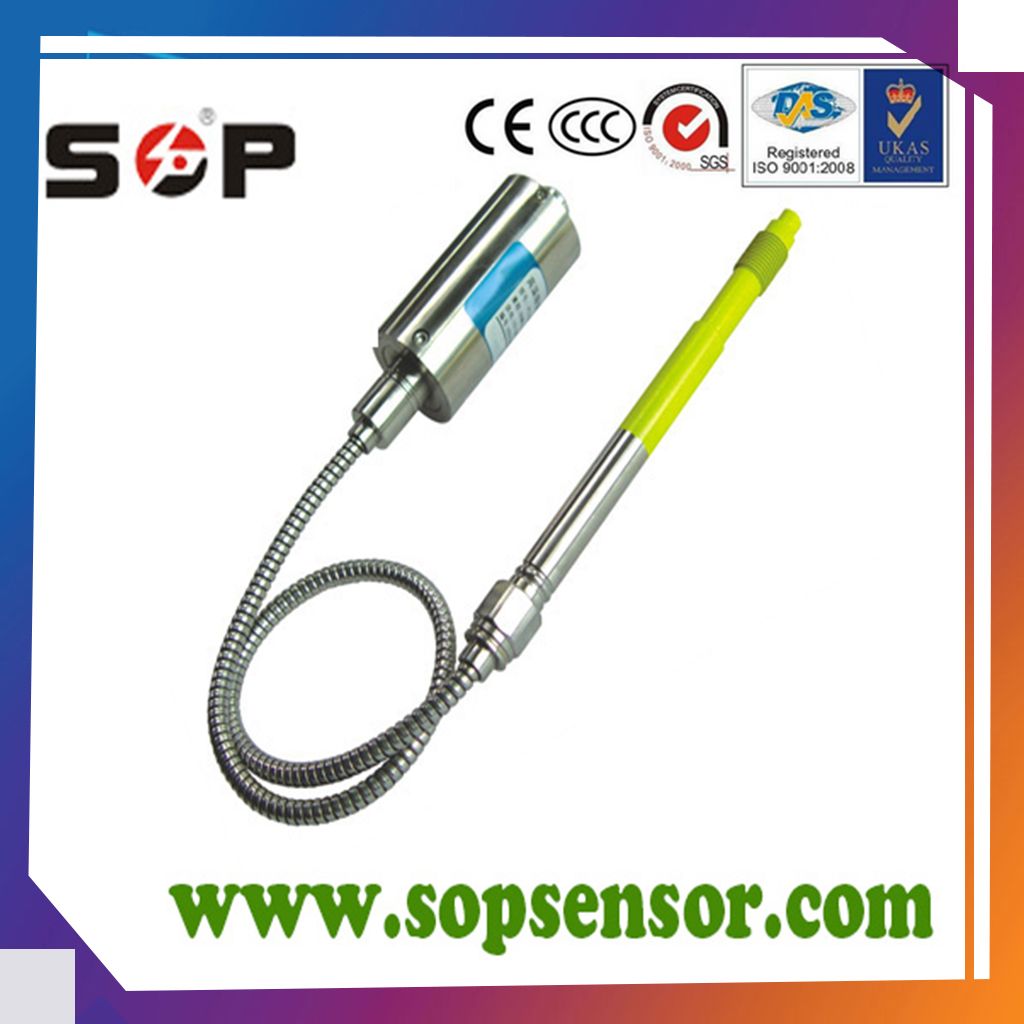

SOP Scale Range 1-15MPa Melt Pressure Transducer

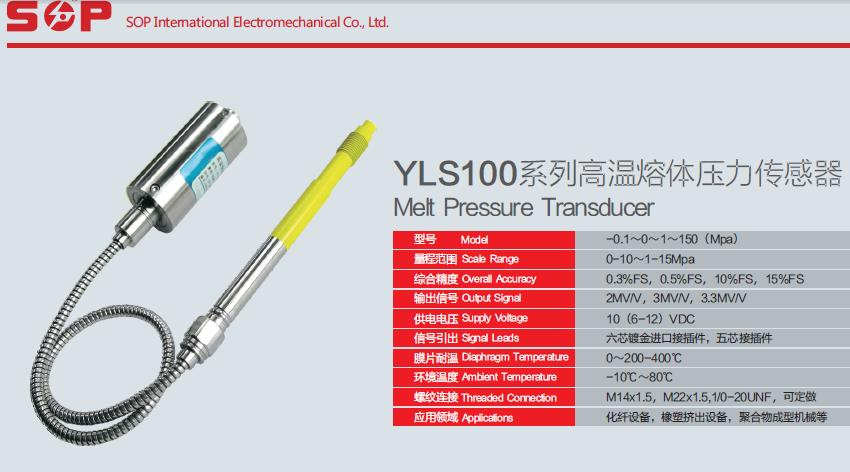

Melt Pressure Sensor parameter:

Model	-0.1~0~1~150 (Mpa)
Scale Range	0-10~1-15Mpa
Overall Accuracy	0.3%FS, 0.5%FS, 10%FS, 15%FS
Output Signal	2MVN, 3MVN, 3.3MVN
Supply Voltage	10 (6-12) VDC
Signal Leads	Six core gold-plated inlet connector, Five core connector
Diaphragm Temperature	0~200-400 ºC
Ambient Temperature	-10 ºC~80 ºC
Threaded Connection	M141.5, M221.5, 1/0-20UNF, customized

Melt Pressure Sensor Features:
Better than 0.5% accuracy
Standard diaphragm Inconel
TiN or TiAIN coating available
Small zero and span shifts caused by changes in process temperatures

Displacement sensor Advantage

*Absolute encoder, multi-output.
* Compact structure and light
* Straight line measurement, easy to install.
* Anti-dust, anti-vibration, durable.
* Groove for cable, each circle trip is the same, high repetition accuracy.
* Multi-strand soft stainless steel rope, corrosion-resistant type.
* Economic and practical.

Wiping the special coating and fluoride over the diaphragm and
Screw to enhancing anti-friction and anti-corrosive, extending the Time for use.
Suitable for pressure measuring in Rubber, Chemical Fiber, PE-Trochemical and etc.

Founded in 1994, SOP Mechanical & Electrical Co., Ltd is specilized in manufacturing high pressure and high efficiency air blowers, precision vacuum pumps and parts, the tools. Products are sold widely in the demestic and overseas market. It gets high reputation.

High pressure air blowers are widely applicable for the machinery, exhaust, of the powder and granules, the suction conveyance, the liquid agitation, bottle packing, combustion the air supply to the aquatics, cooling of the radiation equipments and the environments in the manufacture industries.

We possess over 30 engineers and technicians. Work on the area of 6000 square meters. It is divided into blower R & D, Production Dept. Electric Motor R & D, Production Dept, Vacuum Pump R & D, Production Dept. It has all the advanced and necessary lathes, driller, broacher, balancing machine, constant temperature over etc.

Welcome customers from all countries, we firmly provide you quality products and perfect after-sales services.
