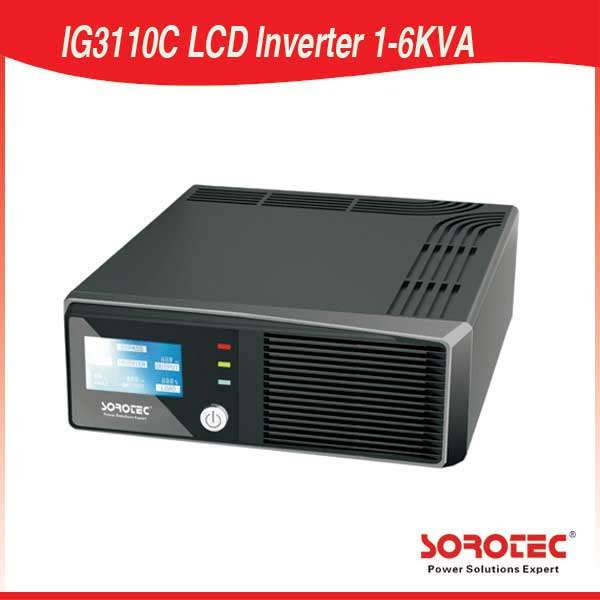

| Prod Model: |
IG3110C 500-2000VA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Nominal Voltage: |
220/230/240VAC |
| Nominal Frequency: |
50/60Hz |
| Voltagerange: |
176VAC-280VAC(± 3VAC) |
| Frequencyrange: |
50/60Hz |
| Voltage Regulation: |
220/230/240VAC± 2% |
| Frequency Regulation: |
50/60Hz+0.1Hz |
| Wave Form: |
Modified Sine Wave |
| Humidity: |
5%~95%(< 40o C, No Condensation) |
| Application: |
Home Use |
Product Description

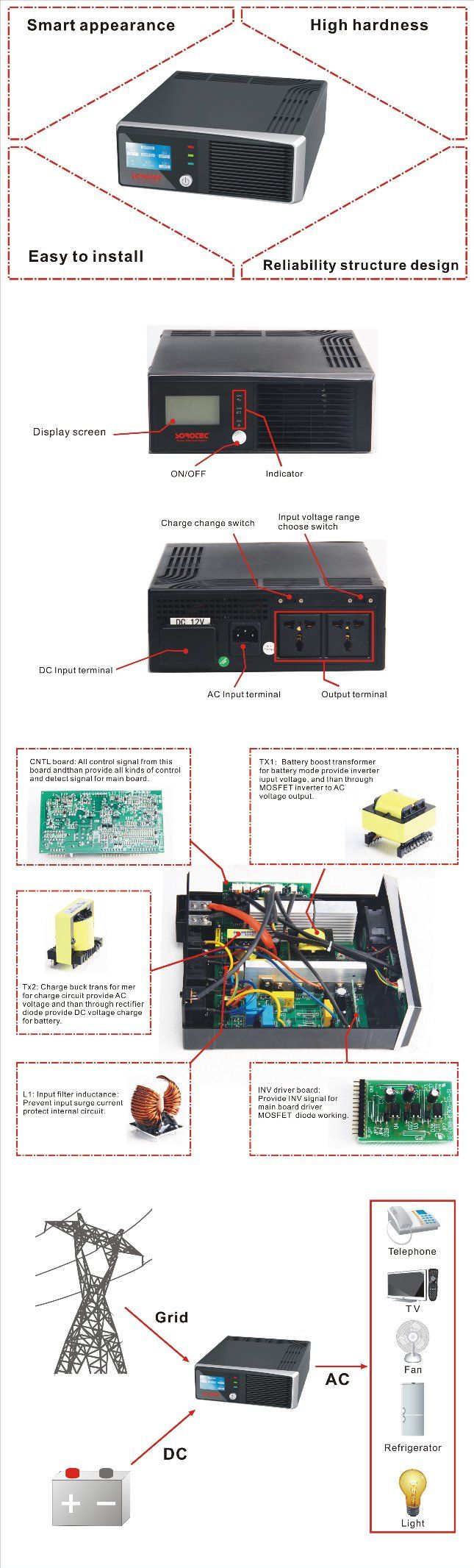

SOROTEC new design modified sine wave power inverter for Home Power SupplyKey Features:1. LCD Display
2. Full automatic and silent operation
3. Rack Tower design
4. High Frequency
5. Off mode charging
6. Compact size for convenient use and storage
7. Built-in 10/20AMP optional charger for up to Ah 200battery
8. Small scale and cost effective inverter for home appliances and office equipment
9. Three- steps intelligent charging control to recharging timeTechnical Specifications of LCD UPS Inverter IG3110C 500-2000VA| Model | IG3110C 500-2000VA |
| 500-12 | 1000-12 | 2000-24 | 1000-24 |
| Capacity | 500VA/300W | 1000VA/600W | 2000VA/1200W | 1000VA/600W |
| Nominal voltage | 220/230/240VAC |
| Nominal frequency | 50/60Hz |
| Input |
| VoltageRange | 176VAC-280VAC(± 3VAC) |
| FrequencyRange | 50/60Hz |
| Output |
| Voltage Regulation | 220/230/240VAC± 2% |
| Frequency Regulation | 50/60Hz+0.1Hz |
| Wave Form | Modified sine wave |
| Switch time | Standard 2~4ms Typical 6ms |
| Current |
| Charge Current | 10A | 10A | 10A | 6A |
| DC Voltage | 12V | 12V | 24V | 24V |
| Overcharge Protection | 15V | 15V | 30V | 30V |
| Display |
| LCD | AC, battery, fault, etc |
| Operating Environment |
| Temperature | 0 º C~40º C |
| Humidity | 5%~95%(< 40º C, no condensation) |
Storage Temperature
| -25º C~55º C |
| Elevation Noise (within 1 metre) | Less than 1500 meter
< 45dB |
| Physical |
| Weight(KG) | Net weight | 2.0 | 2.5 | 2.5 | 2.0 |
| Gross weight | 2.2 | 2.7 | 2.7 | 2.2 |
| Dimension: WXDXH mm | 224× 225× 80 |
Quality control1.Incoming Quality Assurance
2.Critical components inspection
3.Process Quality Assurance
4.Raw material Verification
5.First Article Inspection
6.Online IQC
7.Product testing
8.ICT testing
9.Product aging
10.Product high temperature aging
11.Final QA
FAQ:1.How to choose suitable inverter?If your load is resistive loads, such as: bulbs, you can choose a modified wave inverter. But if it is inductive loads and capacitive loads, we recommend using pure sine wave power inverter. For example: fans, precision instruments, air conditioner, fridge, coffee machine, computer, and so on. Modified wave can be started with some inductive loads, but effect for load using life, because capacitive loads and inductive loads need high quality power.
....................................................................................................................................................................................
2.How do I choose the size of the inverter?Different types of load demand for power are different. You can view the load power values to determine the size of the power inverter.
Notice: resistive load: you can choose the same power as the load.
Capacitive loads: according to the load, you can choose 2-5 times power.
Inductive loads: according to the load, you can choose 4-7 times power.
............................................................................................................................................................................
3.How connection between batteries and an power inverter?We usually believe that cables connecting battery terminal to inverter shorter is better. If you are just
standard cable should be less than 0.5M, but should correspond to the polarity of the batteries and
inverter-side outside. If you want to lengthen the distance between battery and inverter, please contact us
and we will calculate the recommended cable size and length. Due to long distances using a cable connection, there will be a reduced voltage, which means that the inverter voltage would be far below the battery terminal voltage, this inverter will appear under voltage alarm conditions.
............................................................................................................................................................................
4.How to calculate the load of working hours requires configuration of the battery size?We will usually have a formula to calculate, but it is not hundred percent accurate, because there is also the battery's condition, the old batteries have some loss, so this is only a reference value:
Work hours = battery capacity * battery voltage * 0.8/load power (H= AH*V*0.8/W)
............................................................................................................................................................................
