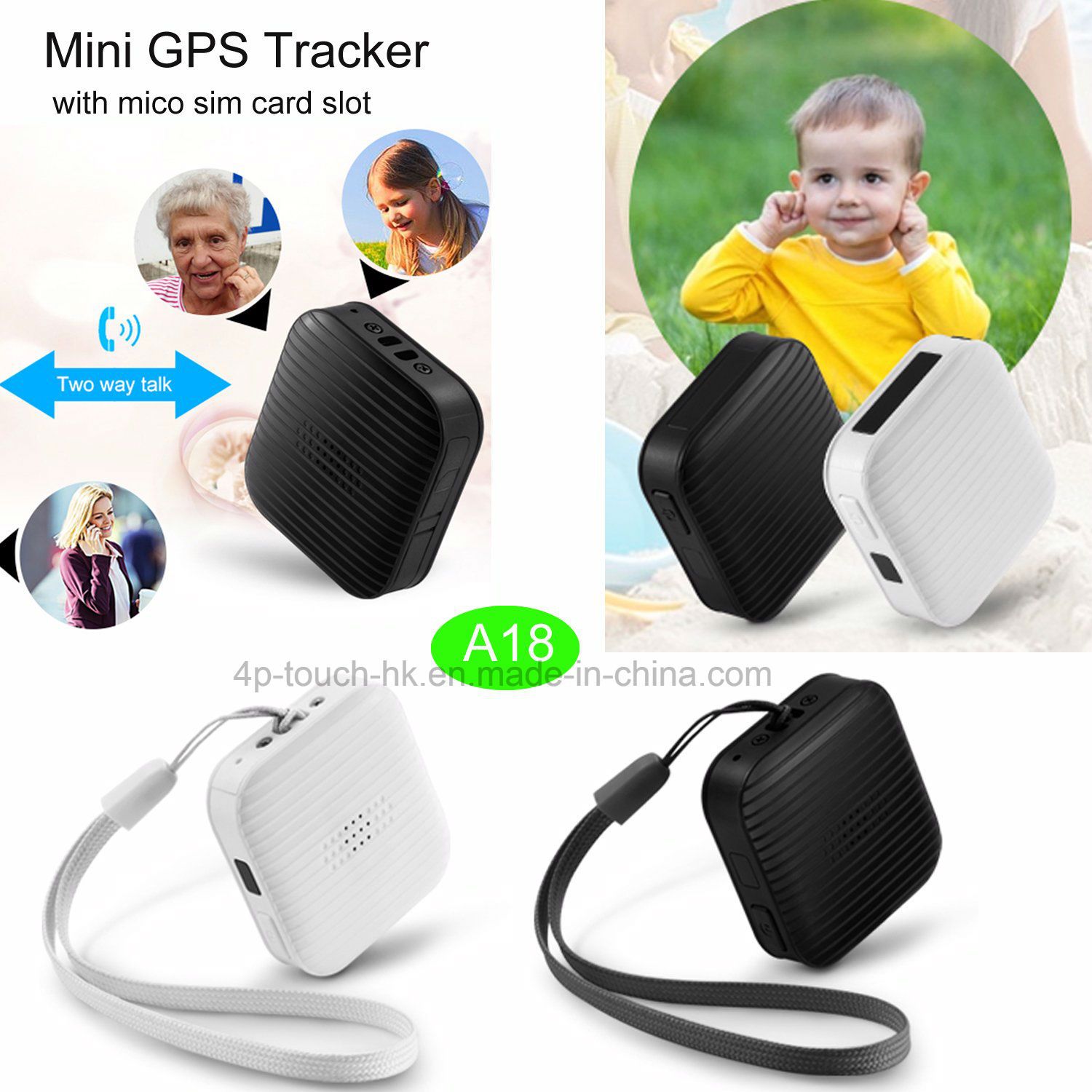

Sos Mini/Tiny GPS Tracker for Person/Child/Adult with Call Function A18
| Price: |
US $ 19-20/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
A18 |
| Chipset: |
Mtk2503 |
| Position: |
GPS+Lbs |
| Battery: |
450mAh |
| Working Time: |
2-3days |
| Real-Time Tracking: |
Support |
| SIM Card Slot: |
Micro SIM Card Slot |
| Intelligent Fence: |
Support |
| Historical Route: |
Support |
| Software: |
Ndroid 2.3 and Above, Ios 5.0 and Above |
| Color: |
White, Black |
Product Description
Selling points:

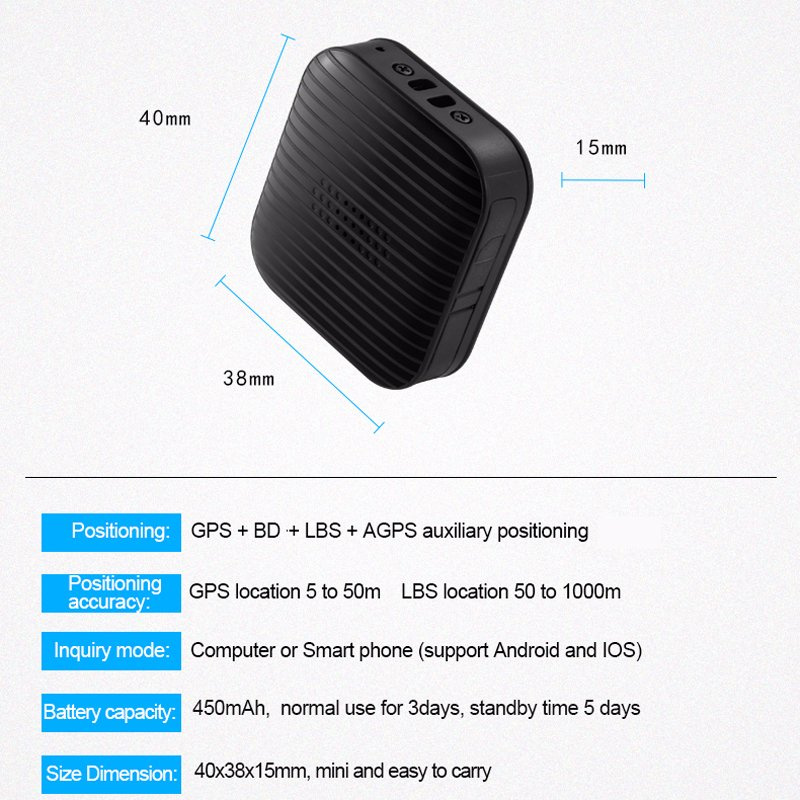

1.Size:40x38x15mm
2.Net Weight:21.5g
3.Button:One button(power button and SOS button)
4.GPS antenna:Built-in high sensitivity ceramic antenna
5.GSM antenna:FPC
6.with rechargeable lithium battery:450mAh
7.SIM card slot: Micro SIM Card slot
8.Chipset: MTK2503
9.software: Android 2.3 and above, iOS 5.0 and above
10.Language:Simplified Chinese, English, compatible
11.with support for multi-languages
12.Color: white, black
13.Working time:2-3days
Functions:
1.GPS+LBS mode
2.AGPS
3.Call function
4.SOS emergency call
5.Intelligent fence
6.Historical route
7.Power saving when the device at rest
| 1. Structure parts |
| Structure parts | type | Specification | Remark |
| ID design | Fashion | |
| Whole machine size | 40x38x15mm | |
| Net Weight | 21.5g | |
| Color | white/ black | |
| Button | Power button/SOS button | |
| gps antenna | High sensitive ceramics active antenna | |
| GSM antenna | Four frenquency PIFA antenna | |
| Battery | 450mAh | |
| SIM card type | Micro SIM | |
| G-senser | Support | |
| I/O port | USB charge | |
| 2. Hardware parts |
| Hardware parts | Chip | MTK MT2503 |
| GPRS | Class12 |
| GPS signal | L1,1575.42MHz C/A |
| GPS channel number | 22 channels |
| GPS chip receive sensitivity | Tracking sensitivity:-165dBm,capture sensitivity:-148dBm |
| GPS location accuracy | 5~15m |
| LBS location accuracy | 100~1000m |
| Minimum standby current | Less than 0.5 mA |
| Average standby current | Less than 2.5 mA |
| Average working current | About 55mA |
| Working temperature | -20~70ºC |
| Working humidity | 5% to 95% non-congealable |
| Test and certification | Can pass 3C and CE certification |
| GPS antenna | High sensitive ceramics active antenna |
| GSM antenna | Four frenquency PIFA antenna |
| Bluetooth | bluetooth 3.0(close normal time) |
| G-senser | Supported |
| MIC | Supported |
| 3. Software parts |
| Software parts | Support operate system | Support 2.3 and above system, IOS5.0 and above | |
| Call function | Two way talk/remote voice monitor | |
| Language support | Simplified Chinese, English | Compatible with support for multi-languages |
| Positioning | GPS+LBS positioning | |
| Support AGPS | Cool start 26 seconds positioning | |
| Call function | SOS call ,voice monitoring,whitelist do not disturb mode | |
| Power management | Ultra-low consumption of power managment, intelligent dormancy | |
| One key emergency | SOS one button emergency call ,auto-dailing | |
| Smart Geo-fence | Can automatic alarm when out of range | |
| Historicial route | Can check three months' historical route | |
| Wireless upgrading | Software remote upgrading, remote debugging maintence , remote setting parameters | |
Our service :
1.All of our products can be offered at OEM, such as custom logo, packaging, etc.
2.All our product will be strictly tested before we delivered to you.
3. we will try our best to provide the lowest shipping cost for you.
Warranty
1.Our product warranty is one year since the date of purchase.
2.We have the after-sale service. If any comments or questions after received our item, please e-mail us immediately, we will answer you as soon as possible.
FAQ
*What's the MOQ and lead time?
For our existing mold items, normally we don't have strict MOQ, samples or trial order is available.Our sample lead time 2-3days, our production lead time is 10-15days, which also based on the order quantity.
*Can I brand the items with our own logo/Brand?
Yes, we do provide OEM & ODM service.
*What's the payment terms you accept?
Our payment term: T/T(30% down payment, 70% balance before shipment), for small batch orders, normally we accept Paypal payment, for bulk order we have HK HSBC account or Western Union account.
*How can I get a sample to check quality?
Please just forward me the sample order summary (include the exact item number, preferred colors, sample quantity), then I will make the sample PI for your approval, after received your payment through Paypal,I will send out the sample to you,If any question or new enquiry, please kindly feel free to contact me.
