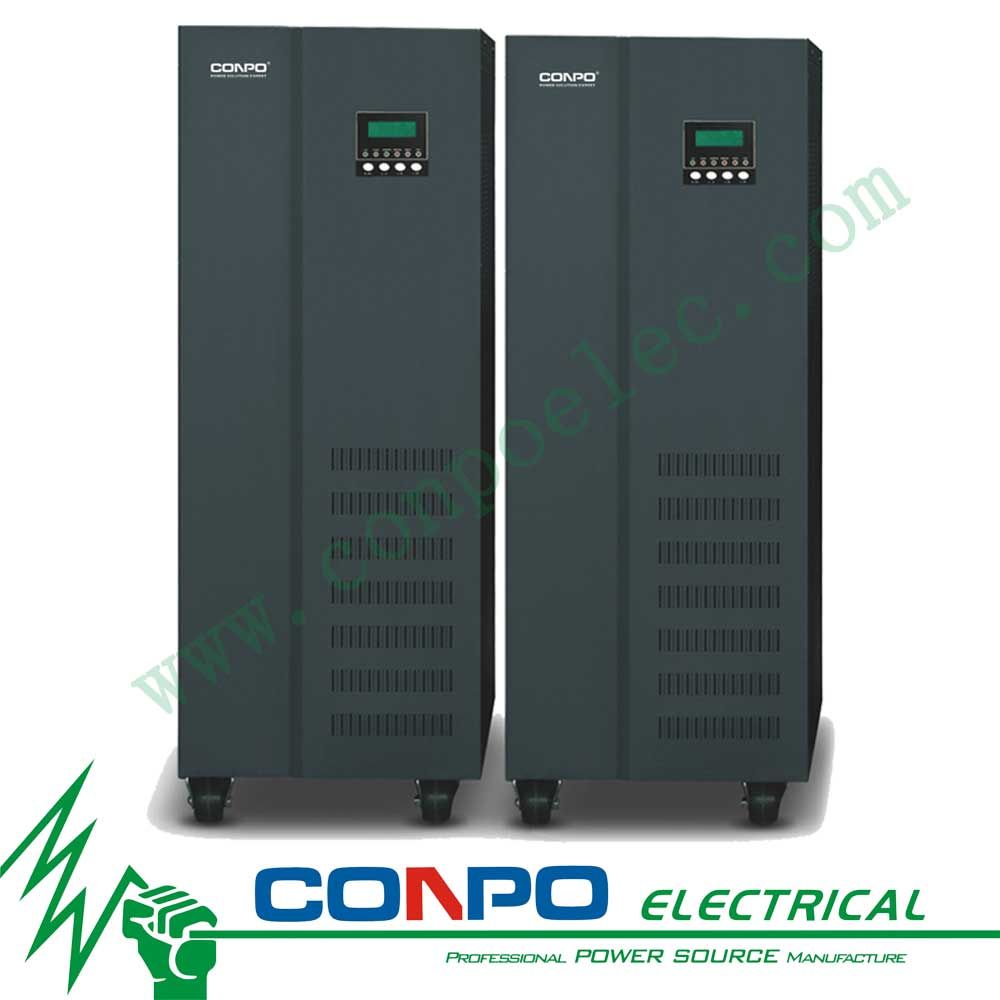

Sp Series Tower Online Lf UPS (3: 1)
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
SP6K~30KVA(3: 1) |
| Phase: |
Three Phase in/Single Phase out |
| Type: |
Tower Online Lf UPS |
| Protection: |
Full Protections |
| Application: |
Industrial/Medical/Office/Army/Security Area etc. |
| Classification: |
Tower Online Lf UPS |
| Brand: |
Conpo |
Product Description
System overviewSU/SP series UPS has been designed as combined advanced IGBT technology with hi-frequency wider-modulated technology(PWM), which make customer could obtain hi-quality power output and optimized efficiency under each operation load. And the advanced modular design to educe the average time to repair(MTTR), and the best maintenance. It also with the most advanced phase-balanced technology, and it features best stability, even if loss-phase, it could still operate at normal condition, so it's suitable for any worse power supply, double conversion, pure sine wave output line design could supply the low-distortion purse sine wave power, so it can provide the best power protection to the user's equipment and with the isolated output transformer, which ensure that the entire the isolation of the load and public electric. SU series UPS is single phase in & single phase out(SU1K~10KVA), and SP series UPS is three phase in & single phase out(SP6K~30KVA). Due to its prominent industrial and electronic design, the UPS not only could work safe in the harsh environment, but also could provide maximum protection office automation, network, security applications and industrial applications. Range of applicationsIndustrial Automatic Control, Electronic & Telecom, Medical Equipment, Aeronautics & Astronautics, Office Automation, Army Technology, Production Equipment, Securities System etc. Main features: 1). Intelligent Control of Multiple CPU Groups of new microprocessor(CPU) co-ordination, which can precisely control the parameters of UPS and its full control, providing sufficient computing power, to ensure UPS always in top working condition. 2). Humanized Display Interface LCD dot matrix display, which visually indicated the UPS's operating parameters, LED displays the working status of UPS, and the LCD+LED combinations could make you get the UPS running Status Clearly and quickly. 3). High Intelligence Network Control Through the communication interface, with the monitoring software, which can directly monitor UPS on the computer, simplified
power management; optional adapter remote monitor(SNMP card), with a variety of operating system and application software,
as well as TCP/IP, SNMP, HTTP and other protocol support, which meets the users' requirements to monitor UPS via network,
this is more suitable for decentralized users to centralized manage, thereby achieving he real global management. 4). Not principal And Subordinate Type, But Adaptive Parallel Technology. It has strong ability in parallel and does not need to set the quantity of parallel, it can be arbitrary online parallel expansion or N+1
redundancy in parallel, Parallel UPS will share the same group batteries. 5). Intelligent Battery Management Adopts a three-stage charging method, which is good for recovery for the deep discharge of the battery. Independent current
sharing and parallel charger, which can increase the capacity according to request. I can guarantee the charging request for the
long backup UPS system. With the battery reverse connect protection, short circuit protection and over temperature protection,
and other functions. Technical Specifications| SU1K~10K(Single phase in and single phase out) |
| Model | SU1K | SU1KB | SU2K | SU2KB | SU3K | SU3KB | SU6K | SU6KB | SU10K | SU10KB |
| Capacity(VA/W) | 1KVA/0.8KW | 2KVA/1.6KW | 3KVA/2.4KW | 6KVA/4.8KW | 10KVA/8KW |
| Input voltage | Single phase with two lines + group wire, 220V ± 25% |
| Battery voltage | 96V | 192V |
| Built-in Battery | -- | 12V/7AH
x 8pcs | -- | 12V/7AH
x 8pcs | -- | 12V/4.5AH
x 16pcs | -- | 12V/7AH x 16pcs | -- | 12V/24AH x 16pcs |
| Noise | ≤55db(Distance 1m) |
| Size(WxDxHmm) | 215 x 550 x 500 | 230 x 570 x 520 | 264x540
x 592 | 264x630
x760 | 345x640
x740 | 400x640
x1110 |
| Weight(kg) | 34 | 52 | 35 | 52 | 35 | 54 | 53 | 98 | 91 | 120 |
| SU15K~20K(Single phase in and single phase out) | | SP6K~30K(Three phase in and Single phase output) |
| Model | SU15K | SU20K | | SP6K | SP10K | SP15K | SP20K | SP30K |
| Capacity(VA/W) | 15KVA/12KW | 20KVA/16KW | 6KVA/4.8KW | 10KVA/8KW | 15KVA/12KW | 20KVA/16KW | 30KVA/24KW |
| Input voltage | Single phase with two lines + group wire, 220V ± 25% | Three phase with lines + ground wires, 380V ± 25% |
| Battery voltage | 192V | 192V | 336V |
| Noise | ≤55db(Distance 1m) | ≤55db(Distance 1m) |
| Size(WxDxHmm) | 345 x 640 x 740 | 264 x 640 x 592 | 345 x 640 x 1020 | 400 x 640 x 1110 |
| Weight(kg) | 110 | 122 | 53 | 139 | 158 | 178 | 263 |
| Input | Frequency | 50Hz/60Hz ± 10% |
| Power Factor | ≥0.95 |
| Output | Voltage | 220V ± 0.5% |
| Frequency Stableness | 50Hz/60Hz ± 0.05%(DC Supply) |
| Transient response | Output at 0~50%~100% = 5%, response=10ms |
| Harmonic distortion | Linear Load < 3%, Non-linear Load < 5% |
| Overload capacity | 110% ≥ 300 Min, 125% ≥ 10 Min, 150% ≥ 1 Min |
| Wave Form | Sine Wave |
| Efficiency | UPS efficiency | ≥91% |
| Battery | Battery Type | Lead-acid sealed, maintenance-free |
| Charging time | It can be filled o 90% of the total capacity, after it is charged for 8hours |
| Warning Sound | Battery Discharge | Alarm every 4 seconds when power supply by battery and without main power |
| Fault Abnormal | Battery under-voltage protection, continuous alarm |
| LCD Panel Board | LCD Display | With display input voltage, output voltage, frequency, DC voltage, output power efficiency(%), temperature |
| LCD Lights | Main power, inverter, bypass, battery, failure, overload |
Outside
environment | Temperature | -10ºC~50ºC |
| Relative Humidity | 0~93% (No condensation) |
| Operation Condition | Lower than 3000 meters above sea level(altitude) |
| Remarks: | Products specifications are subject to change without notice! |
