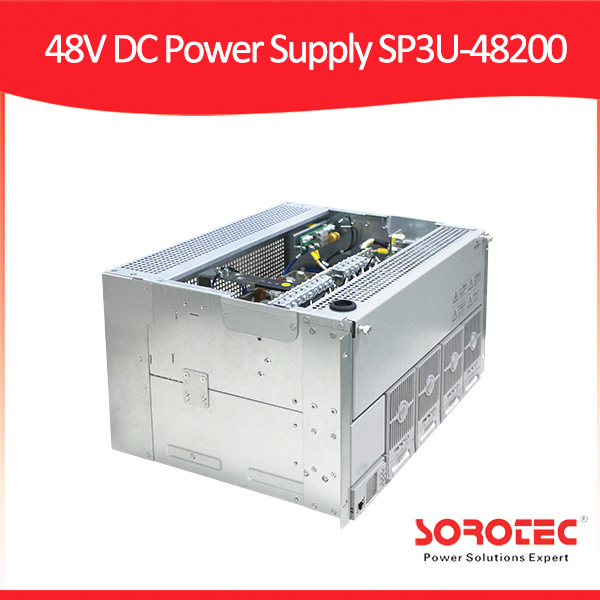

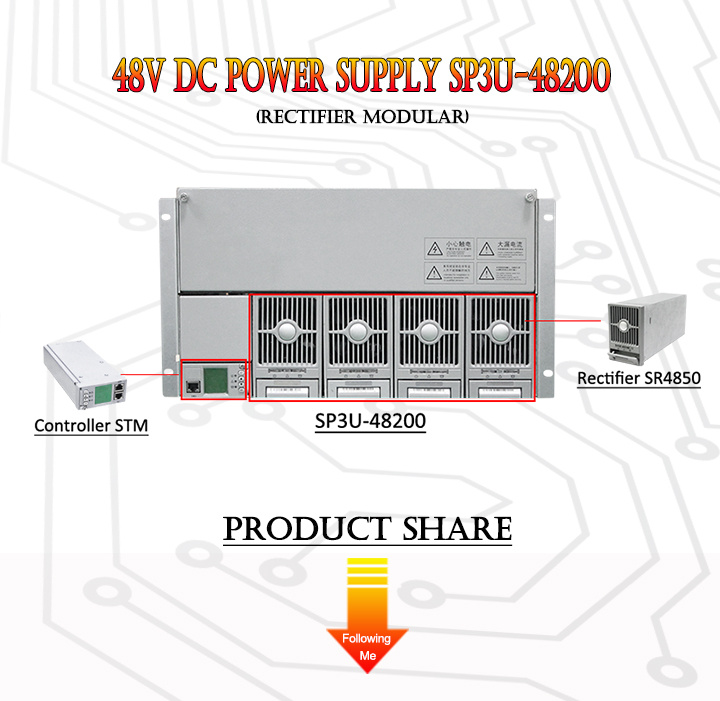

Sp3u-48200 AC Input System

Sp3u-48200 AC Input System
Price: Negotiablepiece
Min Order: 100piece
Pay Type: L/C,T/T
Prod Model: SP3U-48200
Power Supply Mode: Single Phase (3 Phase Is Optional)
Input MCB: 125A/ 2px1
Output Voltage: 42~ 58VDC
Standard Battery MCB: 125ax2
Output Type: Single
Warranty: >2 Years
Output Power: >500W
Input Voltage: 220V
Certification: ISO

Product Description

SP3U-48200 AC Input System



Key Features:

  1. Constructed with standard 19 inch screen, which has the advantage of wide use.
  2. The data center area and the installation cost can be saved due to its mall size and the embedded installation.
  3. Wide input voltage range (85 -290Vac), the power gird is adaptable.
  4. Perfect lightning protection.
  5. Rectifiers are hot pluggable. Easy and quick on line maintenance.
  6. The rectifier uses DSP(Digital Signaling Processor) ology, makes the power density ran up to 14W/In3.
  7. Battery management, prolongs the life of the battery well.
  8. Have passed CE,UL,TLC, and other related certifications.
  9. Excellent energy conservation and environmental protection.

Technical Specifications of SP3U-48200 AC Input System:

SP3U-48200
AC Distribution
Power supply mode :Single phase (3 phase is optional)
Input Voltage:80 ~ 300 Vac
Input MCB:125A/ 2P×1
DC Distribution
Output Voltage42~ 58Vdc
Standard Battery MCB125A×2
Standard LLVD Output Route63A× 2,  32A× 4,  16A× 2
Rectifier

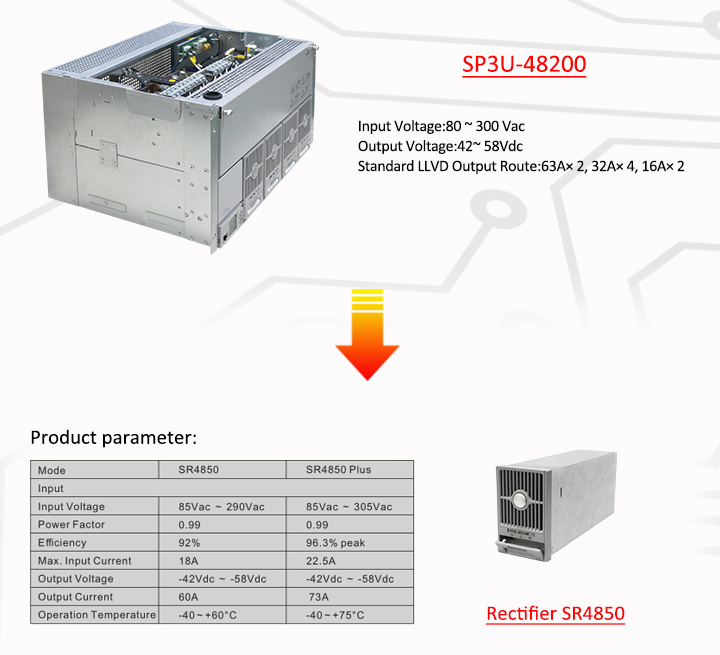

ModeSR4850SR4850 Plus
Input
Input Voltage85Vac ~ 290Vac85Vac ~ 305Vac
Power Factor0.990.99
Efficiency92%96.3% peak
Max. Input Current18A22.5A
Output Voltage-42Vdc ~ -58Vdc-42Vdc ~ -58Vdc
Output Current60A 73A
Operation Temperature-40~+60°C-40~+75°C

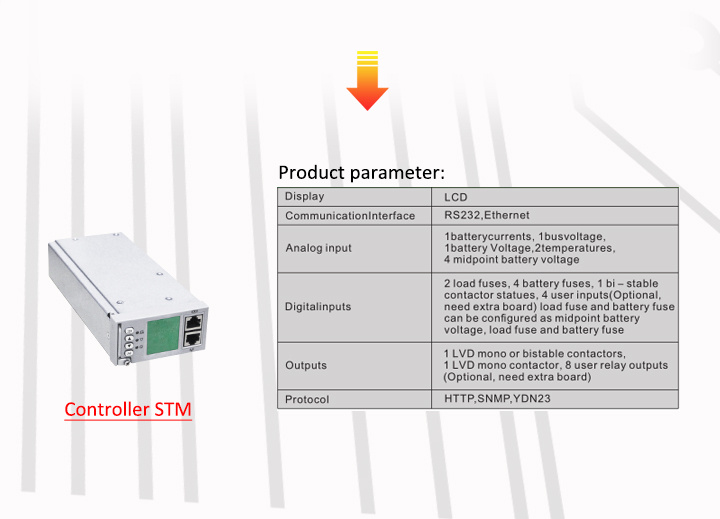

Controller STM
DisplayLCD
CommunicationInterfaceRS232,Ethernet
Analog input1batterycurrents, 1busvoltage, 1battery Voltage,2temperatures, 4 midpoint battery voltage
Digitalinputs2 load fuses, 4 battery fuses, 1 bi - stable contactor statues, 4 user inputs(Optional, need extra board) load fuse and battery fuse can be configured as midpoint battery voltage, load fuse and battery fuse
Outputs1 LVD mono or bistable contactors, 1 LVD mono contactor, 8 user relay outputs (Optional, need extra board)
ProtocolHTTP,SNMP,YDN23
