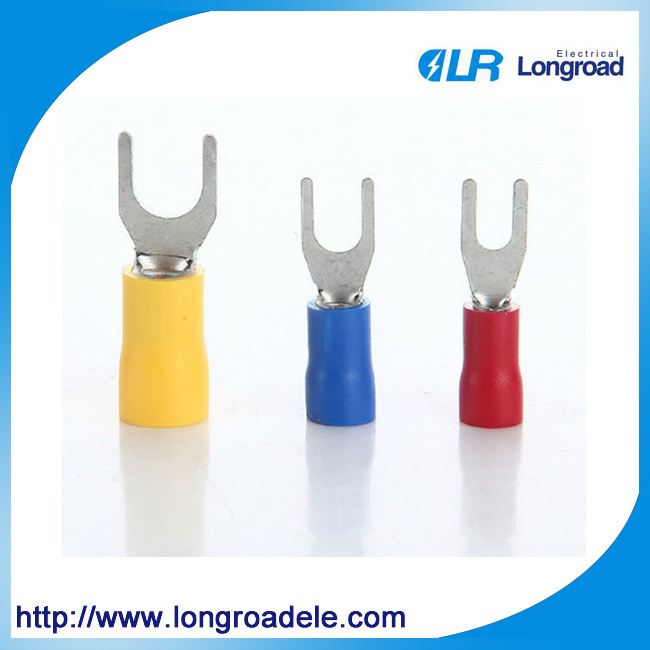

Spade Shaped Electrical Terminal, Brass Terminal

Name: Spade Shaped Electrical Terminal, Brass Terminal
Brand: all-electronics-online.com
SKU: 775485135
Availability: InStock
Rating: 4.4 (128 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CIF
Min Order:	10000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	SV
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	Sv
Lead Section:	0.5~1.5mm2(22~16)
Max Current:	9A
Materials:	Copper
Material:	Copper
Application:	Conduct Electricity
Type:	Insulated Terminal
Brand:	Tengen

Product Description

Specifications
Lead section: 0.5~1.5mm2(22~16) Max current: =9A

Type	Number of ANSI bolt	Diameter of bolt mouth d2	B (mm)	L (mm)	F (mm)	H (mm)	DØ (mm)	Color
SV1.25-3	#4	3.2mm	5.7	21.2	6.5	10.0	4.3	Red
SV1.25-3.5	#6	3.7mm	5.7	21.2	6.5
SV1.25-3.5	#6	3.7mm	6.4	21.2	6.5
SV1.25-4	#8	4.3mm	6.4	21.2	6.5
SV1.25-4	#8	4.3mm	7.2	21.2	6.5
SV1.25-4	#8	4.3mm	8.1	21.2	6.5
SV1.25-5	#10	5.3mm	8.1	21.2	6.5
SV1.25-5	#10	5.3mm	9.5	21.2	6.5
SV1.25-6	1/4	6.5mm	9.5	21.2	6.5
SV1.25-6	1/4	6.5mm	12.0	21.2	11.0

Lead section: 1.5~2.5mm2(16~14) Max current: =27A

Type	Number of ANSI bolt	Diameter of bolt mouth d2	B (mm)	L (mm)	F (mm)	H (mm)	DØ (mm)	Color
SV2-3	#4	3.2mm	5.7	21.2	6.5	10.0	4.9	Blue
SV2-3.5	#6	3.7mm	5.7	21.2	6.5
SV2-3.5	#6	3.7mm	6.4	21.2	6.5
SV2-4	#8	4.3mm	6.4	21.2	6.5
SV2-4	#8	4.3mm	7.2	21.2	6.5
SV2-4	#8	4.3mm	8.1	21.2	6.5
SV2-5	#10	5.3mm	8.1	21.2	6.5
SV2-5	#10	5.3mm	9.5	21.2	6.5
SV2-6	1/4	6.5mm	9.5	21.2	6.5
SV2-6	1/4	6.5mm	12.0	21.2	11.0

Lead section: 2.5~4mm2(14~12) Max current: =37A

Type	Number of ANSI bolt	Diameter of bolt mouth d2	B (mm)	L (mm)	F (mm)	H (mm)	DØ (mm)	Color
SV3.5-4	#8	4.3mm	8.0	24.8	7.0	12.5	6.2	Black
SV3.5-5	#10	5.3mm	8.0	24.8	7.0
SV3.5-6	1/4	6.5mm	12.0	28.0	12.1

Lead section: 4~6mm2(12~10) Max current: =48A

Type	Number of ANSI bolt	Diameter of bolt mouth d2	B (mm)	L (mm)	F (mm)	H (mm)	DØ (mm)	Color
SV5.5-3.5	#6	3.7mm	8.3	25.2	7.5	12.5	6.7	Yellow
SV5.5-4	#8	4.3mm	8.3	25.2	7.5
SV5.5-4	#8	4.3mm	9.0	23.9	7.5
SV5.5-5	#10	5.3mm	9.0	23.9	7.5
SV5.5-6	1/4	6.5mm	9.0	23.9	7.5
SV5.5-6	1/4	6.5mm	12.0	31.2	12.0
SV5.5-8	5/16	8.4mm	14.012.0	30.0	11.5
