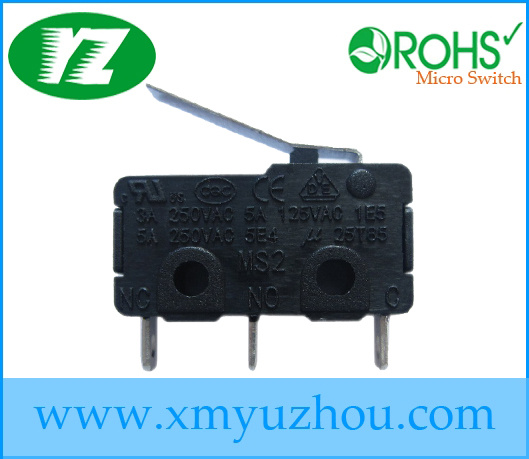

Spdt Mini Micro Button Switch

Name: Spdt Mini Micro Button Switch
Brand: all-electronics-online.com
SKU: 715629205
Availability: InStock
Rating: 4.8 (116 reviews)

Price:	US $ 0.25/Piece
Trade Terms:	FOB
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	MS2-Z4F
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Theory:	Micro Button Switch
Current:	5A/10A
Connect Forms:	Spdt
Actuator:	Short Arm
Pressing Type:	Push-Button
Protection:	Dust-Proof
Size:	Small-Sized
Breaking Form:	Single Type
Environment:	﹤250℃
Breaking Capacity:	General Type
Brand:	Yz

Product Description

Micro Button Switch

Characteristics and usage:

*Safe reliable miniature switch

*Nice appearance, tight configuration, characteristic, small contact gap, quick action, high sensitivity and small operating travel.

*Long life, high reliability.

*Variety of contact terminals.

*Variety of levers

*A variety of models with low operating force to high force are sensitivity

Telephone, air conditioner, computer, humidifier, alarm, time recorder, sloder gun, fax machine. Joystick, juice maker, mixer, toy cat, light, electric pot, ect

Item		Value
Perating Speed		0.1mm~1m/s(Related with actuator forms)
Operating Frequency		Mechanical 60 cycles/min;Electrical 30 cycles/min
Insulation Resistance		≥100 MΩ (500VDC)
Contact resistance		OF>0.5N:≤30mΩ(see note) OF≤0.5N:≤50 mΩ(see note)
Test Voltage	Between terminals of the same polarirty	AC1000V,50/60Hz,1min
	Between current-carrying metal And ground(case),and between Each terminal and non-carrying metal parts	AC1500V,50/60Hz,1min
Vibration resistance		10-55Hz,1.5mm Double amplitude
Shork Resistance		Destruction : OF>0.5N:1000m/s ²(approx.100G)max OF<=0.5N:500m/s ²(approx.50G)max Malfunction: OF>0.5N:300m/s ²(approx.30G)max OF<=0.5N:200m/s ²(approx.20G)max
Life Expectancy		Mechnical>=1000000 cycles Electrical>=50000 cycles
Degree of protection		IEC IP40
Degree of protection against electric shock		Class I
PTI(Tracking Resistance)		175
Ambient air temperature		-25~+85 Degree 60%RH below(No ice and dew)
Ambient air humidity		85% Rhbelow(about +5~+35°C)
Weight		Approx.1.6g(No lever)

Xiamen Universal Electronic Co., Ltd is a professional manufacturer of Rolling Door Motor, Tubular Motor, Micro Switch and semiconductor component separator, etc. After years of practical experience, efforts of all colleagues, the support of customers and suppliers, now we have Mechanical & Electrical Department, Electronic Components Department and Integrated Department of Market Operation. There are more than 40 series products, with over 500 kinds of specifications. Mechanical & Electrical products are widely used in shopping malls, hotels, warehouses, banks, factories and other buildings rolling door opening and closing; Electronic Components are mainly used in home appliances, industrial control, automotive electronics and other areas. We have done business with more than 40 countries all over the world and earned a good reputation.

Main products:

Rolling Door Motor, Roller Shutter Motor, Garage Door Motor, Rolling Shutter Motor, Automatic Door Opener, Tubular Motor, Micro Switch, Tip Over Switch, Tilt Switch, Safety Switch, Bridge Rectifier, etc.

Superior Service:

Being a professional manufacturer for many years, we always supply quality product at competitive prices with superior service. We keep the principle of "Quality First, Customers Supreme" and always try to meet customers' Requirements at any time. Any inquiries will be replied within 1 business day.

Quality Assurance:

We have QC department to make inspect every step of production, so we can make sure good quality products for customers.

Sample Order:

Sample order is available, normally, it takes about 7 days to make new samples.

Welcome to inquire from our company if you have any requirement. We are always positive and ready to offer excellent service.
