| Prod Model: |
V-16Z0-A200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Theory: |
Limit Micro Switch |
| Current: |
6A/10A/16A |
| Terminal: |
250 Quick Connect Terminal |
| Operating Force: |
1n-4n |
| Pressing Type: |
Push-Button |
| Protection: |
Dust-Proof |
| Size: |
Small-Sized |
| Environment: |
﹤250℃ |
| Breaking Capacity: |
Micro-Current |
| Breaking Form: |
Single Type |
| Brand: |
Yz |
| Certification: |
CQC CB TUV |
Product Description
Spdt Sensitive Electrical Limit Micro Switch
Features:
- Safe reliable basic switch
- Nice appearance, tight configuration, characteristic, quick action and high sensitivity.
- Long life, high reliability.
- Variety of contact terminals.
- Variety of levers.
- A variety of models with low operating force to high force are sensitivity.
- Apply to microwave oven, air condition, electric cooker, dishwasher, cleaner, humidifier, water heater, electric drill, electric radiator, joystick, TV game, time recorder, solder gun, mixer, food processor,
juice maker, alarm, shredder machine, etc.Specification1. Rated current and voltage:
16(4) 250 V AC/16A 125V AC 1/2HP 125/250VAC;
10(3)A 250V AC/10A 125VAC
6(2) A250VAC/1A 125VAC
1(1)A 250VAC/1A125VAC
2. Contact Resistance: 30mΩ Max;
3. Insulation Resistance: 100MΩ (500VDC);
4. Operating Force: 1.5 N--3 N
5. Life: Mechanical ≥ 5000000 cycles; Electrical≥ 50000 cycles;
Apply to microwave oven, air conditioner, electric cooker, dishwasher, cleaner, humidifier, water heater, electric radiator, e; Ectric drill, joystick, TV game, time recorder, solder gun, mixer, food processor, juice maker, alarm, mixer, shredder machine, etc.| Item | Value |
Perating Speed |
0.1mm~1m/s(Related with actuator forms) |
Operating Frequency |
Mechanical 60 cycles/min;Electrical 30 cycles/min |
Insulation Resistance |
100 MΩ (500VDC) |
Contact resistance |
<=30mΩ(Initial value) |
Test Voltage |
Between terminals of the same polarirty |
AC1000V,50/60Hz,1min |
Between current-carrying metal
And ground(case),and between
Each terminal and non-carrying
metal parts |
AC2000V,50/60Hz,1min |
Vibration resistance |
10-55Hz,1.5mm Double amplitude |
Shork Resistance |
Destruction : OF>0.5N:1000m/s ²(approx.100G)max
OF<=0.5N:500m/s ²(approx.50G)max
Malfunction: OF>0.5N:300m/s ²(approx.30G)max
OF<=0.5N:200m/s ²(approx.20G)max |
Life Expectancy |
Mechnical>=5000000 cycles
Electrical>=50000 cycles |
Degree of protection |
IEC IP40 |
Degree of protection against electric shock |
Class I |
PTI(Tracking Resistance) |
175 |
Ambient air temperature |
125°C 60%RH below(No ice and dew) |
Ambient air humidity |
85% Rhbelow(about +5~+35°C) |
Weight |
Approx.5.95g(No lever) |
Why Choose Us?
High Quality, Competitive Price, Fast Delivery
Xiamen Universal Electronic Co., LTD. is a professional company of switch control device and semiconductor component separator. After years of efforts of all colleagues, the support of customers and suppliers, we now have the business department of the electronics switch and Integrated Department of Market Operation. The business department of the electronics switch is engaged in R&D and manufacturing of the medium and small electronic switches; the Integrated Department of Market Operation is responsible for the Integration Services of information gathering, selling, trading and so on. Our products cover a wide range, including micro switch, tact switch, push switch, metal dome switch, relay, low-voltage devices, rectifier bridge, ect. Those products are widely exported to more than 40 countries all over the world.

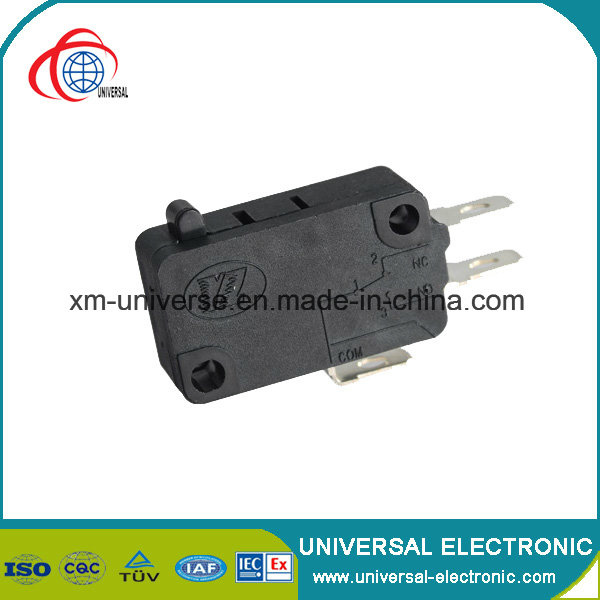

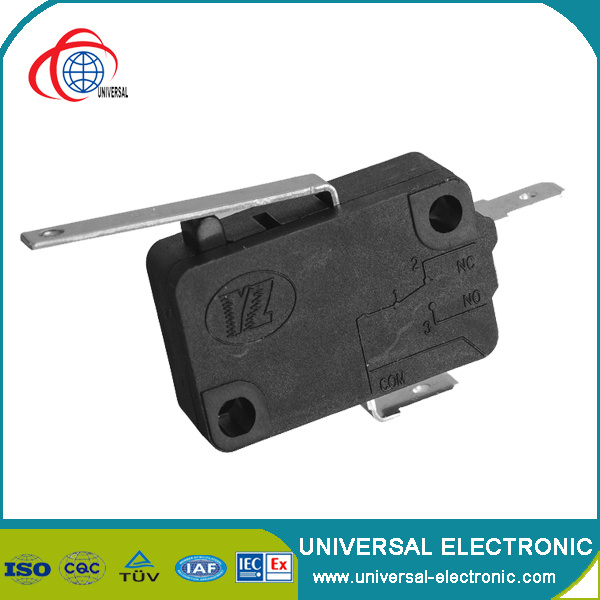

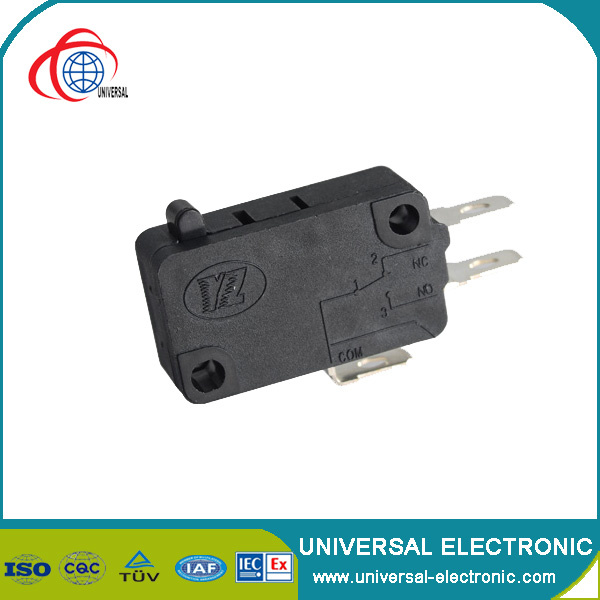

Product Show:

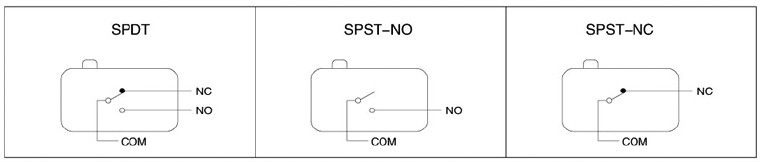

Contact Forms Diagram:
Shipping:
Shipping way: By sea,By air, DHL, FEDEX, UPS, TNT, EMS, CHINA POST AND SO ON.
Xiamen Universal Electronic Co., Ltd is a professional manufacturer of Rolling Door Motor, Tubular Motor, Micro Switch and semiconductor component separator, etc. After years of practical experience, efforts of all colleagues, the support of customers and suppliers, now we have Mechanical & Electrical Department, Electronic Components Department and Integrated Department of Market Operation. There are more than 40 series products, with over 500 kinds of specifications. Mechanical & Electrical products are widely used in shopping malls, hotels, warehouses, banks, factories and other buildings rolling door opening and closing; Electronic Components are mainly used in home appliances, industrial control, automotive electronics and other areas. We have done business with more than 40 countries all over the world and earned a good reputation.
Main products:
Rolling Door Motor, Roller Shutter Motor, Garage Door Motor, Rolling Shutter Motor, Automatic Door Opener, Tubular Motor, Micro Switch, Tip Over Switch, Tilt Switch, Safety Switch, Bridge Rectifier, etc.
Superior Service:
Being a professional manufacturer for many years, we always supply quality product at competitive prices with superior service. We keep the principle of "Quality First, Customers Supreme" and always try to meet customers' Requirements at any time. Any inquiries will be replied within 1 business day.
Quality Assurance:
We have QC department to make inspect every step of production, so we can make sure good quality products for customers.
Sample Order:
Sample order is available, normally, it takes about 7 days to make new samples.
Welcome to inquire from our company if you have any requirement. We are always positive and ready to offer excellent service.
