Special Cables Security 10c 22AWG Power Cable

Special Cables Security 10c 22AWG Power Cable
Price: US $ 18-22/Roll
Min Order: 200/Roll
Pay Type: T/T
Contact Supplier
Showroom Product Company Profile
Prod Model: Security 10C 22AWG
Application: Computer
Voltage: Low and Medium Voltage Cable
Current: AC Cable
Insulation Material: PVC
Certification: RoHS
Model: VV
Brand: Hanxin

Product Description

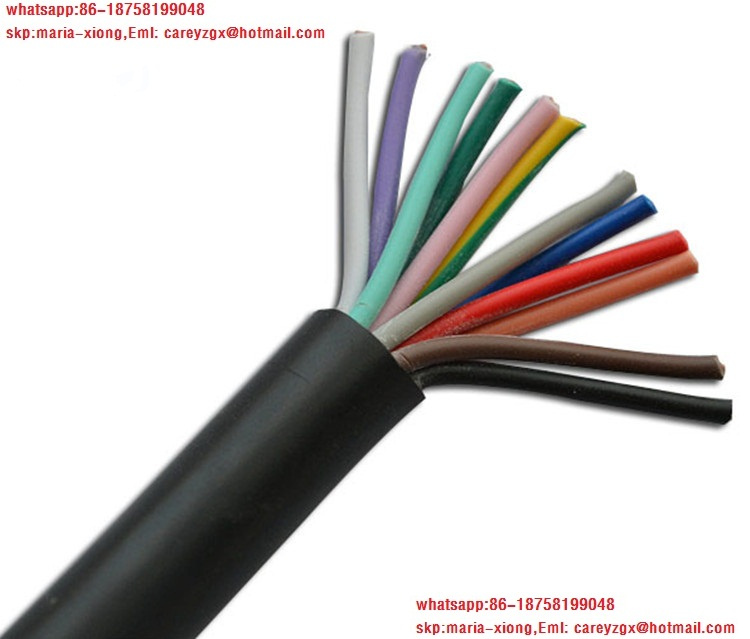

Security 10C 22AWG POWER CABLE

Security Cable: Security 10C 22AWG
Application: Power limited circuit, remote control, signaling, security systems, communications, intercom/P.A. systems, sound/audio, and nurse call.
Conductor Material: Bare copper wire strands
Insulation Material: PE/PVC
Laying-up: Units
Drain Wire: Solid bare copper
Shield: Overall Al/Polyester foil shield
Nylon Rip Cord: 150D
Sheath Color: As your request
Shape: Circular in cross-section
Voltage Rating: 300/500 voltage
Temperature Rating: 75ºC
Security Cable: Security 10C 22AWG
Product Name/Code :SECURITY 10C 22AWG
Construction
4 CoreBare copper wire strands
AWG22
Cross section of Cons. Diameter (mm2)0.34
Stranding(wire No./ wire dia.mm)7/0.25mm
InsulationPE/PVC
Thickness (mm)0.21
Insulation Diameter(mm)1.00
Insulation ColorAccording to customer
Nylon rip cord150D
Construction24AWG
Shield (Y/N)Overall Al/Polyester foil shield
Coverage> 25%
SheathingPVC/PE/LSF
Thickness(mm)0.7
Cable Dia.(mm)4.2
Fire Performance
Fire Performance
Flame Propagation Test to IEC 60332 Part 1 and Part 3
Determination of the amount Halogen Acid Gas to IEC 60754 Part 1
Smoke Density Test to IEC 61034
Oxygen Index Test to BS 2863 or ISO 4589-2
Temperatre Index Test to BS 2782 or ISO 4589-3
Fire Resistant Test to IEC 60331-24

Our Services
Welcome to visit our factory and  get our samples.
 Your inquiry will be answered within 24 hours .Wishing to be your long- term partner ,please feel  free to contact me ,we will do our best for you.

Choose us, won't make you disappointed:
1.19 years manufactory experience
2.OEM/ODM available
3.Steady product quality
4.Strict quality control
5.Strictly conform to CE,ROHS,Iso9001
6.Quick delivery time(20ft,25days)


Contact:
  Name:  Carey zhu   Tel:+8657163808897          Mob: 18758199048
 Website: http://en.hanlicable.com/main2.html    http://kuayuecable.en.made-in-china.com

Zhejiang Kuayue Cable Co., Ltd" is a leading Manufacturer of cables, Specialized in producing and selling communication Cables with more than 7 years of experience, our main popular products are LAN cable. Fiber optic cable, Coaxial cable and telephone cable, other telecommunication cables and accessories.

"Zhejiang Kuayue Cable Co., Ltd" is the subsidiary of Hanli Group. We have served many of biggest company allover world such as telecom. We have our own 3 factory with more than 300 workers and more than 20000 designs of cable,

We have advanced production equipment to meet your high or special requirements. Our products have passed ISO9001, CE and RoHS certification. Our own brands "Hanli"have been widely recognized both by domestic and foreign country. We adhere to not only meet international standards but also take price in meeting customers requirement.

We can provide OEM or ODM services, and also efficient aftersales services. Please trust us can supply you with good quality products and competitive price. For more information,

Our principle: Service from Honesty, Impression from High quality!

Welcome visit our website and contact with us for any question or inquiries!
