Special Car GPS Android Navigation System Box for Pioneer DVD Player, HD, TV, DVD

Prod Model:	LLT-PR3115
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
CPU:	1.2GHz
RAM:	1GB
OS:	Android 4.2.2/4.4.4
Flash:	8GB
WiFi:	Yes
HD Video:	1080P
Map:	Google Map
Type:	GPS Navigator
Use:	Automotive
Screen Size:	7"
Model:	Llt-Pr3115
Brand:	Lsailt

Product Description

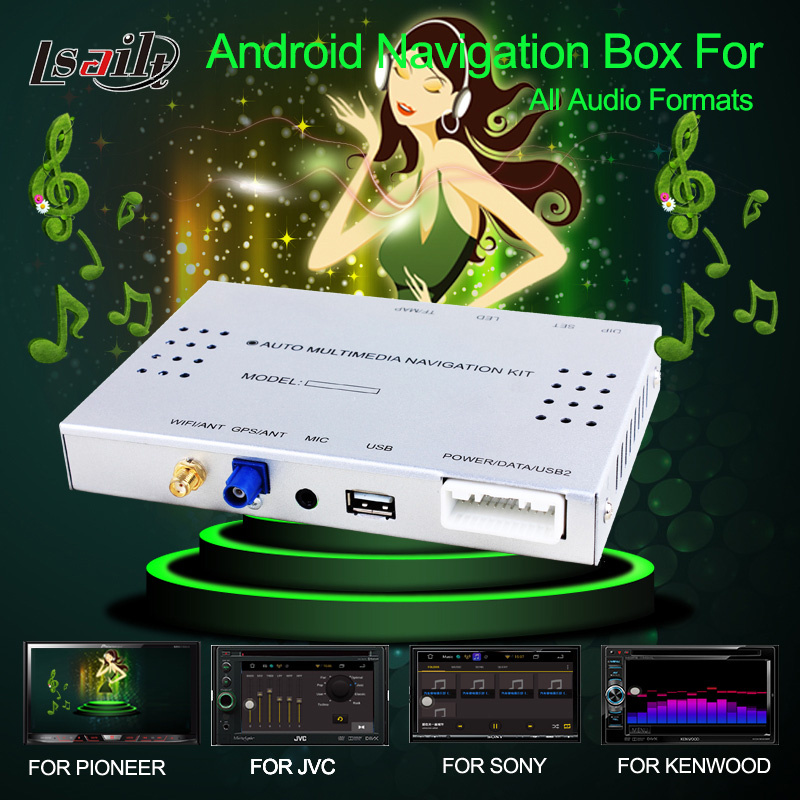

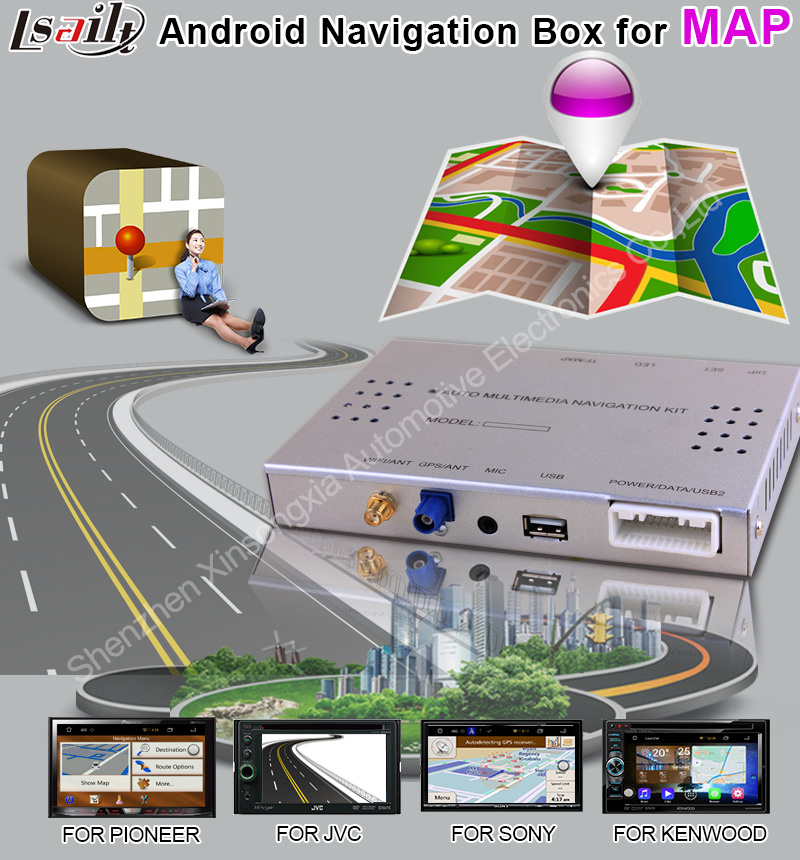

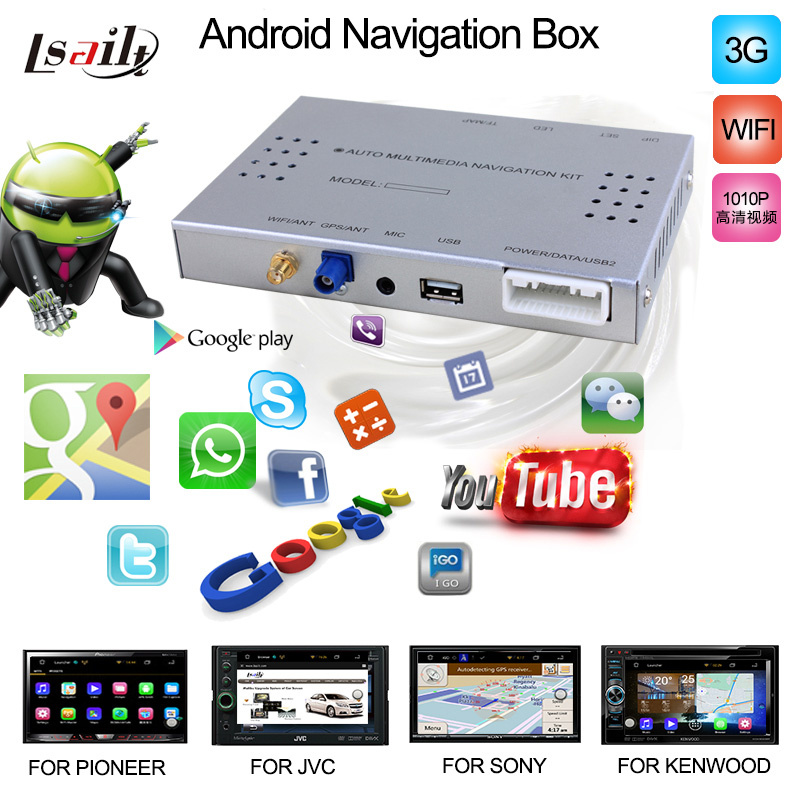

Android navigation system suitable for Pioneer car DVD player touch support 3G/WIFI /800x480 (LLT-PR3115)

 Universal product information

Origin	Shenzhen	Trademark	Lsailt
Item No.	LLT-PR3115	Standard	CCC, CE
Type	GPS Navigator	Use	Automotive

Trade Terms

MOQ	1Set	Unit Price	negotiation
Trade Terms	FOB	Payment Terms	TT /western Union/PayPal
Supply Ability	3,000pcs per month	Delivery Time:	3-5 business days after received your payment
Packing	Standard export carton	HTTP	www.lsailt.com
SIZE	155*105*25(MM)	GR/WT	1.5KG/SET

Custom properties

CPU	1.2GHZ Car gauge dual-core	RAM	1GB
Working voltage	9-12V	OS	Android4.2/4.4
HVGA	800X480	MAP	IGO/PAPAGO

ADD-ON Advantages
1) Nondestructive installation design, which does not damage to the wires of original car; special interface cable, plug-up installation without wire cut;
2) Choose installation functions freely (Bluetooth optional);Choose beautiful interface as you like;
3) Technology is reliable, take the original agreement;
4) After upgrading, it still remains all the functions of the original head unit, even if navigation goes wrong, which does not affect the function of the original car;
5) After-sales service is convenient, replace the adapter module directly, compare with special machine, it's much simpler, less risk, more safe and reliable;
6) Achieve handwritten navigation, and control the navigation by touching it. Compare with the original navigation module, it's more convenient and flexible.

Product Description
1. Adopt high performance Mstar Cortex A9 dual-core car regular processorMST786,main frequency is 1.2GHZ;
2.With high capacity memory for DDR3 1GB,built-in 8GB capacity for you to store your file;
3.OS:Android4.2.2;
4.Support many kinds of resolutions,default 800x480;
5.Support TMC(Traffic Message Channel);
6.Support many kinds of navigation software.Support 3D live navigation.With Navigation voice mixing function;
7.Support touch screen operation;
8.Support upgrade OS by TF card and U Flash Disk;
9.Support hardware reset factory Settings;
10.Support connect by wireless WIFI and 3G function. Meet your needs in different environment;
11.Support external TF/SD card,the highest support 32G;
12.Support USB 2.0 external U Flash Disk. Support external Hard Disk;
13.Support many kinds of video formats(1080P):AVI(H.264, DIVX, DIVX, XVID, rm, rmvb,  MKV(H.264, DIVX, DIVX, XVID), WMV, MOV, MP4(H.264, MPEG, DIVX, XVID), MPEG, MPG, FLV(H.263,H.264);
14.Supports many audio formats:WAVE,AIFF,AU,MP3,MIDI,WMA,RealAudio,VQF,OggVorbis,AAC,APE;
15.Design EQ sound choice function, achieve high quality music effect.

Product Application
1. Vehicle: car, bus, truck
2. Brands: Toyota, Honda, Nissan, GM, Buick, Kia, HYUNDAI etc
3. Super auto supplies supermarket,car audio modification store,automobile service factory
4. Applied to the car DVD host:PIONEER/KENWOOD/SONY/JVC/ALPINE/PHILIPS etc.

Competitive Advantages
1.Easy installation. Nondestructive installation:
2.Random installation ,without secondary installation:
3.Simple functions, strong stability, which more useful:
4.Convenient to upgrade map.

Product accessories
Mainframe	1(standard configuration)
Dedicated wire	1(standard configuration)
Antenna	1(standard configuration)
WIFI Antenna	1(standard configuration)
USB cable	1(standard configuration)
Specification	1(standard configuration)
certification	1(standard configuration)
Warranty card	1(standard configuration)
Microphone	1(standard configuration)
SPK	1(optional configuration)
Map card	1(optional configuration)
Mute dedicated line	1(optional configuration)



Product parameter
CPU	1.2G~1.6GHz
Model	Cortex A9 dual-core processor. car rule 786
RAM	DDR3 1GB
Flash	Inand standard equipped,8GB,
Navigation storage	TF card
OS	Android 4.2/4.4
HVGA	800X480
WIFI	Came the the OS
Operating Voltage	DC(9-15)V
Operating current	Normal 400 mA@12V
Operating temperature	-20°C-+70°C
Storage temperature	-30°C-+80°C
Audio output	Left and right channels, stereo, distribute the signal and analog output

Function Introduction
USB function
USB interface	Two-way interface, can external connect a stern line of USB HUB, USB.
A	Connect external 3G Dongle(WCDMA/CDMA2000/TD-SCDMA)
B	Maximum:32GB,support FAT/NTFS hard disk,U flash disk ; compatible USB1.0,USB2.0
Audio file format	MP3,M4A,WAV,AMR,AWB,AAC, FLAC,MID,MIDI,XMF,RTTTL, RTX,OTA,WMA,RA,MKA,M3U
Functions of audio media	Select songs from list, play, pause, the last song, the next song, shuffle play, repeat playback, 3 d effects ID3  display  information of songs
Format of Video file	MPG,MPEG,DAT,VOB,TS,TRP, TP,M2TS,MTS,MP4 ,MOV,RMVB, RM,MKV,DIVX,AVI,ASF,WMV,FLV, TS,WEBM.
Functions of video media	Select video from list. Play, pause, the last one,the next one(Don't support background)
Format of  picture file	JPEG,JPG,GIF,PNG,BMP,WBMP
Functions of picture media	Select pictures from list. Play, pause, the last picture, the next picture, Rotating   pictures, set as wallpaper.
Internet
WIFI	After good Wi-Fi connection, select the current can be connected Wi-Fi hotspots, enter the password to connect to the Internet after the Internet Via your 3G/4G mobile phone can also be used as hot provide navigation hosts (this set with reference to your mobile phone manual)
3G	3G/WCDMA/CDMA2000/TD-SCDMA standard
	Support surf the Internet through 3G USB dongle or 3G mobile share next work
MAP (GPS Navigation)
Supportable navigation software	Beauty line, DaoDaoTong, LingTu, hypergraph, navione, AutoNavi, baidu,Google ,IGO,SYGIC
Map upgrading	Through TF card
	Support 3D live navigation.(Need navigation software to support)
	Support navigation sound mixing/sound sent back
	Support real-time traffic(Need navigation software to support, internet)
	Support multiple navigation software
EQ
Audio Setting	More EQ simulation control
	balancing control
	Acoustic control
	Spectrum collection and variety shows
File manager
Functions	Support to copy, move files between different storage medium and different folders
	Support to delete files
Task manager
Functions	Support the task list of activities
	Support to switch the activities task
	Support to close the activities task
System with Google	The browser, calculator, calendar and send E-mail,Google store
Software upgrading	TF or U flash disk
Voice Recognition	Support
System language	Multi language


For models;
2015 Models:AVH-X1750DVD, AVH-X2750BT, AVH-XL4750DVD, AVH-XL4750DVD, AVH-XL5750BT, AVH-X5750, AVH-X6750DVD, AVH-X7750BT, AVH-X8750BT

2014 Models:AVH-X4000NEX, AVH-X5600BHS, AVH-X4600BT, AVH-X3600BHS, AVH-X2600BT, AVH-X1550BHS, AVH-X2550BT, AVH-X2550DVD, AVH-X4550BT,AVH-X5550BT,AVH-X6550,AVH-X7550,AVH-X8550,AVH-X4650,AVH-X5650BT,AVH-X6650BT,AVH-X7650BT,AVH-X8650BT,

2013 Models:AVH-X8500BHS, AVH-X7500BT, AVH-X6500DVD, AVH-X5500BHS, AVH-X4500BT, AVH-X3500BHS, AVH-X2500BT, AVH-X1500DVD etc. all machine with NAVI interface (800X480))
