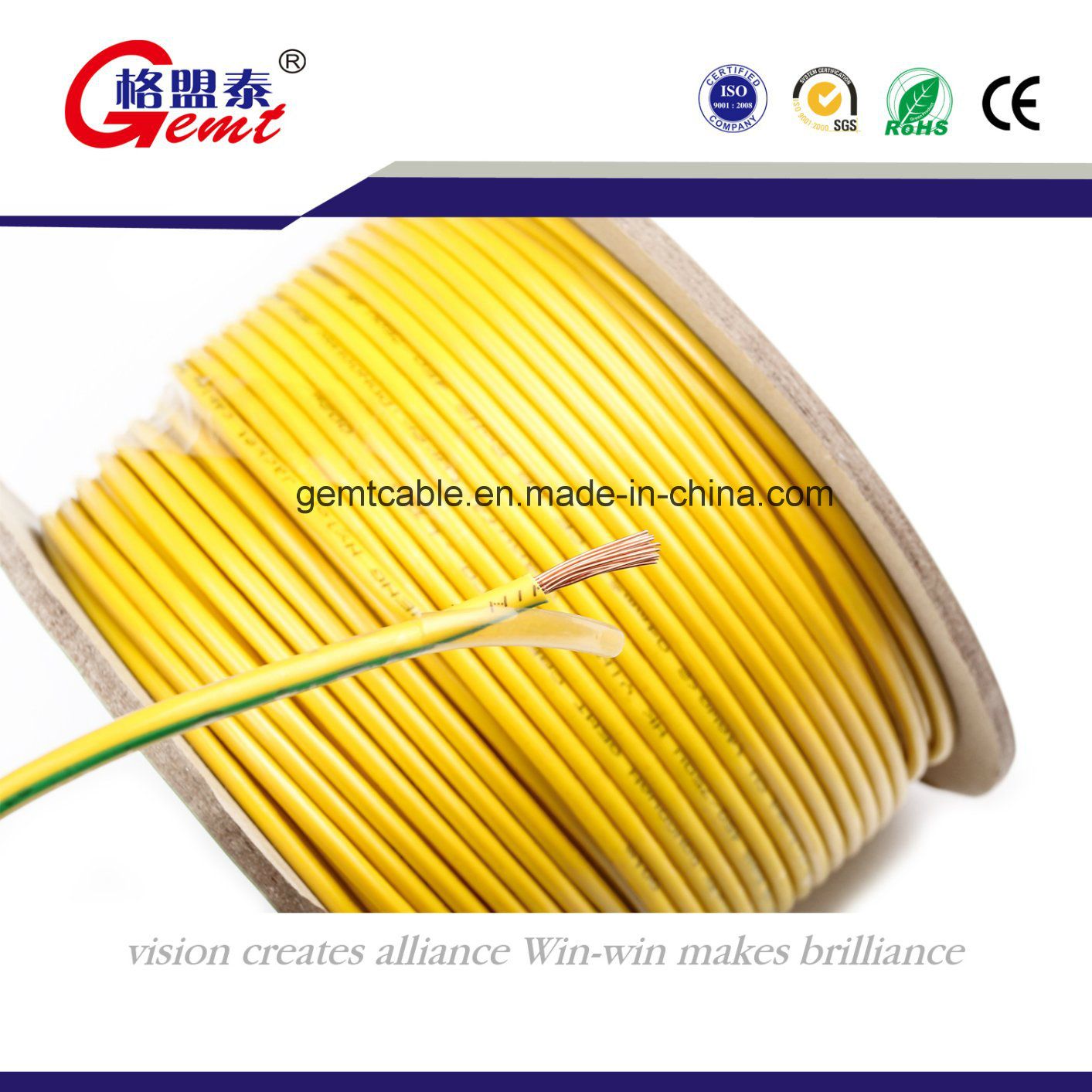

Specialized in Security Thhn/Thwn Cable

Prod Model:	123
Color:	Black,White,Blue,Yellow,Red etc
Sizes:	Customized
Voltage:	Low Voltage
Type:	Insulated
Conductor Type:	Stranded
Application:	Underground
Conductor Material:	Copper
Insulation Material:	PVC
Certification:	RoHS
Brand:	Gemt

Product Description

Specialized in Security THHN/THWN Cable

1.Product Description:
THHN or THWN-2 conductors are primarily used in conduit as branch circuits in commercial or industrial applications, as specified by the National Electrical Code. Type 100%copper conductors are primarily used
as appliance or machine tool wiring, building,household appliance
Type THHN or THWN-2 are available as stranded in sizes 14 awg - 750 kcmiL, and as solid in sizes 14-10 awg. Stranded sizes 14 awg - 750 kcmil are also rated as AWM or MTW. stranded or solid copper and are insulated with a tough, heat and moisture resistant polyvinyl chloride (PVC), over which a nylon (polymide) jacket is applied.

2.Specifications:
THHN or THWN-2 or AWM or MTW meets applicable ASTM specifications, UL Standard 83, UL Standard 758, and UL Standard 1063. The conductors are Gasoline and Oil Resistant II, and have a voltage rating to 600 volts.Sizes 1/0 and larger are rated for CT use. All sizes have VW1 flame rating. All THHN is UL and cUL Listed.

3. Cable details:

Size		NO.of Strands	PVC Insulation Thickness	Nylon Sheath Thickness	Appro Cable OD.	Ampacity
AWG	MCM		mm	mm	mm	THHN 75	THWN 90
14		solid	0.38	0.1	2.6	15	15
12		solid	0.38	0.1	3.02	20	20
10		solid	0.51	0.1	3.81	30	30
14		19	0.38	0.1	3.81	30	30
12		19	0.38	0.1	3.27	20	20
10		19	0.51	0.1	4.11	30	30
8		19	0.76	0.13	5.43	50	65
6		19	0.76	0.13	6.36	65	75
4		19	1.02	0.15	8.11	85	95
3		19	1.02	0.15	8.82	100	110
2		19	1.02	0.15	9.63	115	130
1		19	1.27	0.18	11.09	130	150
1/0		19	1.27	0.18	12.08	150	170
2/0		19	1.27	0.18	13.34	175	195
3/0		19	1.27	0.18	14.64	200	225
4/0		19	1.27	0.18	16.04	230	280
250		37	1.52	0.2	17.79	255	290
300		37	1.52	0.2	19.09	286	320
350		37	1.52	0.2	20.39	310	350
400		37	1.52	0.2	21.49	335	380
500		37	1.52	0.2	23.59	380	430

4. FAQ:
Q: Can I have a sample?

A: Yes, we welcome sample order to test and check quality.

Mixed samples are acceptable.
Q: How long is the lead time?

A: Sample needs 1-2 days; mass production needs 15-30 days.
Q: Do you have the MOQ limit?

A: Our MOQ is 100-10000meters, depending on the products;

Sea Port: FOB Shenzhen.

Q: Do you provide OEM or ODM services?

A: Yes, we do.

Q: Do you offer guarantee for the products?

A: Yes, we offer five years guarantee for the product
