| Copper Thickness: |
1oz-4oz |
| Board Thickness: |
0.1mm~0.2mm |
| Place Of Origin: |
Guangdong, China (Mainland) |
| Surface Finishing: |
Immersion Gold,Immersion Tin,OS |
| Lead Free Technology: |
Yes |
| Engineering Support: |
Support |
| PCB Testing: |
E-Testing |
| Impedance Control: |
Yes |
| Color Of Silk-Screen: |
White,Black,Silver |
| Coler Of Solder Mask: |
Green, Black, Blue, White, Y |
| Production Process: |
Subtractive Process |
Product Description
Welcome to china visit our company wesbite !
Specialized PCB Design and Manufacture in Shenzhen
One-stop EMS service-----Your reliable PCB and PCB Assembly Supplier
1.Company profile:
Founded in 2008, Shenzhen Rigao Electronics is privately held Shenzhen Corporation,dedicated in providing electronic engineering and manufacturing services.
After several years of development,Rigao has become an international provider of
solutions in three principle areas: Printed circuit board procurement, PCB assembly
procurement and component procurement and Flexible flat cable, FPC flat cable connectors
As an experienced PCB and PCBA manufacturer,we provide prototypes,small volume
projects, medium volume projects and large volume projects. We are able to
maintain a complete service system with comprehensive technical backup as well
as cost advantage and scheduled delivery.
Our main services include offering:
Rigid PCB (up to 22 Layers),
Flexible PCB/FPC (1~6 Layers),
Rigid-Flex (2~10 Layers),
Aluminum-based PCB (1~4 Layers),
High Density Interconnection/HDI PCB,
High frequency material PCB
Assembly Services
Components purchasing
Our manufacturing and quality control processes are ISO 9001:2000 certified and
conform to IPC-A600(PCB) and IPC-A610 (PCB Assembly) standards.
All our PCB/PCBA are UL certified and RoHS compliant.
1.Detailed Specification of PCB Manufacturing
| 1 | Layout | 1-22 layer |
| 2 | Material | FR-4,CEM-1,CEM-3,Hight TG,FR4 Halogen Free,FR-1,FR-2, Aluminum |
| 3 | Board thickness | 0.2mm-7mm |
| 4 | Max.finished board side | 500mm*500mm |
| 5 | Min.drilled hole size | 0.25mm |
| 6 | Min.line width | 0.075mm(3mil) |
| 7 | Min.line spaceing | 0.075mm(3mil) |
| 8 | Surface finish/treatment | HALS/HALS lead free,Chemical tin,Chemical Gold, Inmersion Silver/Gold,Osp,Gold Plating |
| 9 | Copper thickness | 0.5-4.0oz |
| 10 | Solder mask color | green/black/white/red/blue/yellow |
| 11 | Inner packing | Vacuum packing,Plastic bag |
| 12 | Outer packing | Standard carton packing |
| 13 | Hole tolerance | PTH:±0.076,NTPH:±0.05 |
| 14 | Certificate | UL,ISO9001,ISO14001,ROHS,CQC |
| 15 | Profiling Punching | Routing,V-CUT,Beveling |
| 16 | Assembly Service | Providing OEM service to all sorts of printed circuit board assembly |
2.Detailed Terms for PCB Assembly
Technical requirement:
1) Professional Surface-mounting and Through-hole soldering Technology
2) Various sizes like 1206,0805,0603 components SMT technology
3) ICT(In Circuit Test),FCT(Functional Circuit Test) technology.
4) PCB Assembly With UL,CE,FCC,Rohs Approval
5) Nitrogen gas reflow soldering technology for SMT.
6) High Standard SMT&Solder Assembly Line
7) High density interconnected board placement technology capacity.
Quote requirement:
1)Gerber file and Bom list
2)Clear pics of pcba or pcba sample for us
3)Test method for PCBA

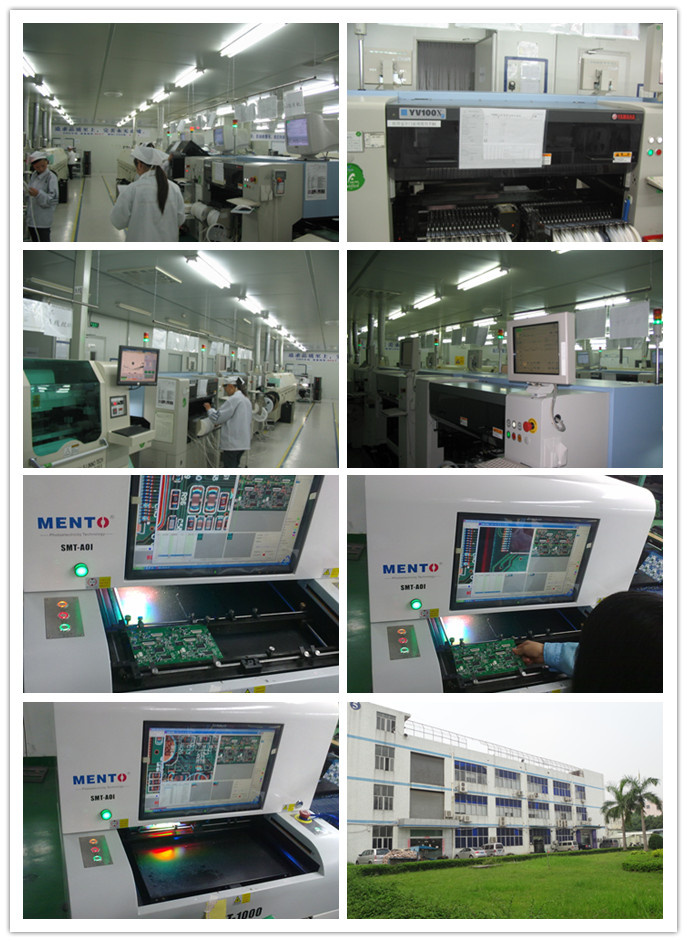

3.View of Rigao Factory
RFQ:
Q: What is your MOQ?
A: We accept any quantity you want to order, prototype and mass production both are welcome.
Q: What do you need for quotation?
A: We need six informations from you as following show:
- Material:
- Board Thickness:
- Copper Thickness:
- Surface treatment:
- Gerber rle or other PCB data hle:
- Quantity:
For PCB assembly, we need BOM of components.
Q: Can you provide reverse engineering?
A: Yes, we do this service and we call it PCB or PCBA clone/copy,we just need the sample from you.
Q: Do you have your owr products?
A: No, we just do the customized PCB and PCBA prodution, also PCB/PCBA design is welcome.
Why choose us?
Our manufacturing and quality control processes are ISO 9001:2000 certified and conform to IPC-A600(PCB) and IPC-A610 (PCB Assembly) standards. All our PCB/PCBA are UL certified and RoHS compliant.
Our Principle is simple, "Act by heart, Make the best."
Our strength is distinct, "Years of experiences in PCB and PCBA field"
Our Goal is achievable, " To be the most reliable supplier of PCB and PCBA."
Our orientation is clear, "Focus on prototypes and low to medium volume business "
Our Mission:
Credit on Customers/Focus on Quality/Rely on Management/Keen on Improvement
Requested information for PCB Assembly:
1. Gerber file & BOM list if possible
2. PCBA Samples
3. Testing procedure & Testing fixtures
4. Order Quantity
Shenzhen Rigao Electronics Co., Ltd. is a newly company which founded in 2008. At beginning we were only focus on manufacturing Printed Circuit Boards. But now we has become a rapidly growing worldwide provider of solutions in three principal areas Printed Circuit Boards, PCB Assembly and Components Procurement. We are dedicated to building solid partnerships and providing flexible solutions to enable our customer's success.
As an experienced PCB and PCBA manufacturer, we provide prototypes, small volume, medium volume, and high volume projects. We are able to guarantee a complete service with comprehensive technical backup, offering acost advantage and scheduled delivery.
Our main services include offering
Rigid PCB (up to 64 Layers)
Flexible PCB/FPC (1~6 Layers)
Rigid-Flex (3~18 Layers)
Aluminum-based PCB (1~6 Layers)
High Density Interconnection/HDI PCB
High frequency material PCB
DIP, COB, SMT assembly Services
Components Sourcing
We have since successfully completed over 5, 500 projects and have nearly 300 satisfied repeat customers. Our customers are from over 30 countries in various industries, including computer, home appliances, consumer products, telecom, scientific research institutes, etc.
Our manufacturing and quality control processes are ISO 9001: 2000 certified and conform to IPC-A600(PCB) and IPC-A610 (PCB Assembly) standards. All our PCB/PCBA are UL certified and RoHS compliant.
Our Principle is simple, "Act by heart, Make the best. "
Our strength is distinct, "Years of experiences in PCB and PCBA field"
Our Goal is achievable, "To be the most reliable supplier of PCB and PCBA. "
Our orientation is clear, "Focus on prototypes and low to medium volume business "
Your trust and support would be a solid back-up for our business. We sincerely hope to provide you with high-quality products and satisfactory services.
We are look forward to working with you!
