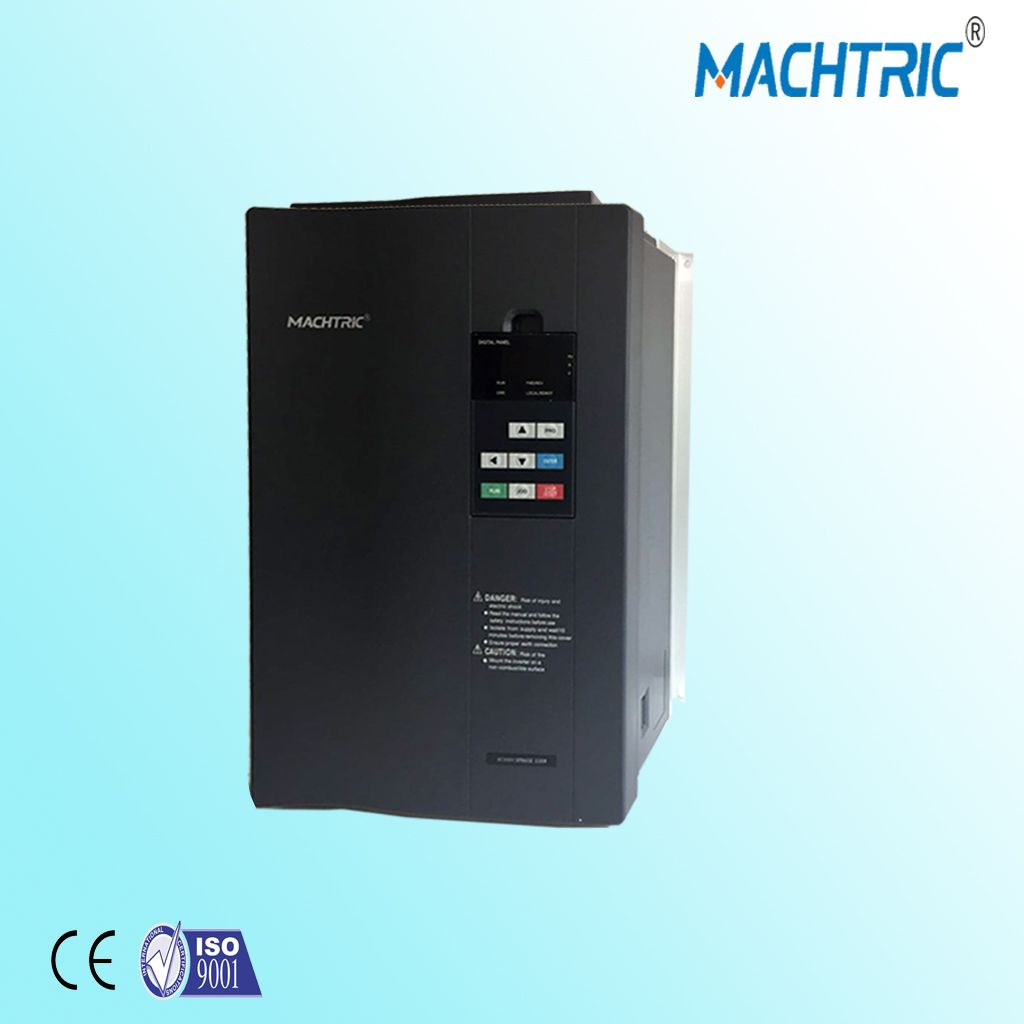

Speed Control 220V 2.2kw VFD Variable Frequency Drive

Prod Model:	S2800E
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand Name:	Machtric
Output Voltage:	220V; 380V
Output Frequency:	0.01-600.0Hz
Output Current:	5.4-290A
Pid Control:	Built-in
Control Mode:	Sensorless Vector Control, V/F Control
Overload Capacity:	150% Rated Current in 60s; 180% Rated Current in 1
Pid Function:	Built in
Multi-Speed Function:	8 Speeds
Jog Key Function:	Multi-Function Setting by Users
Application:	High Frequency Converter Transducer
Output Type:	Triple
Principle Of Work:	Vector Control Transducer
Switch Mode:	PWM Control
Main Circuit Type:	Voltage
Brand:	Machtric

Product Description

S2800 E Series Vector Control Inverter

Many machine lines and output is 10000set /month

Customized specification is accepted.

 Implement strict quality testing and control procedure to make superior quality.

Certification:ISO 9001,ISO14001,OHSAS18001 & CE
 Application:

     Paper machinery, Screw output device, Drawing Equipment,
     Dyeing plant,  Injection plastic equipment, Air condition system,
     Machine tool equipment, Boller system, Chemical fiber equipment,
     Water supply, oil transportation installtion. ect. Texitile equipment.

 About us:

Quanzhou Machtric Automation Equipment Co., Ltd is a company who manage international High Tech Products in the guidance of International Business .  With the help of the Strength R&D, System Engineering , taking advantage of the its abundant international trade resources, we have solved many problems for different customers.  At the same time, we have managed many another famous foreign brand in multi-level.  We would like to be one of the most popular Industry Automation Solution Suppliers.  We try to provide wisdom, individual product solution.
Our products:

1. Computerized control system of textile machines: Seamless Underwear machine, Computerized Flat Knitting Machine, Glove Machine, Circular Knitting machine, Auto-Stripper Knitting Machine, Hosiery Machine, Automatic Winding Machine, Automatic Spooler Machine etc.
2. Inverter series:

Vector series: Z900,  ,S2800E,S1100VG,S2200E, S3800E series
Universal series: S2800E, S1100VG,S900GS series, S2100S series
Dedicated series: S100 Series, S200 series(circular knitting machine),
Mini Series  : S800E



Any Questions Don't Hesitate To Ask.  We can get you the information you need.
We can e-mail you PDF files of the user manual, installation manual, dimensions, performance data, ect.
Visit Our Website:  www.machtric.com


Thanks For Looking !!!




Variable Frequency Drives  Variable Speed Drives   Frequency Converters   AC converters

Frequency Inverters  AC Drivers  AC Drives  AC Motor Drives  VFD    VSD     Transistorized Drives




Why choose Sanch frequency inverter?

1.Easy operating system.--- easy but effective software ,gentle touch achieve.

2.Stable performance--- best famous company ensure the quality all the time.

3.Excellent after sales service--- never leave you along.

4.Fast delivery --- safety delivery ,we look after it all the time.



We looking forward to cooperate with you !


Model		S2800 E
Input	Rated Voltage& Frequency	Single phase AC 220V/47~63Hz Three-phase AC 380V/47~63Hz
	Voltage Allowable Range	220/380 660± 15%
Output	Output Voltage Range	1~rated input voltage
	Output Frequency Range	0~600Hz
	Control Mode	Sensorless Vector Control, V/F control
Technic	Overload Capacity	150% rated current in 60s; 180% rated current in 10s
	Start Torque	0.5Hz/150% with vector senserless control
	Adjustment Ratio	1:100 with vector senserless control
	Speed Control Accuracy	Maximum speed±0.5% with vector senserless control
	Carrier Frequency	0.5~15KHz
Terminal	Programmable Digital Input	4 terminals
	Programmable Analog Input	FIV:0~10V, FIC:0~10V or 0~20mA
	Coupling Output	1 set
	Relay Output	1 set
	Analog Output	1 set-option of 4~20mA/ 0~10V
Function	Frequency Setting	Digital, Analog, Series communication, Multi-Speed, PID, etc
	PID Function	Built in
	Multi-speed Function	8 speeds
	Adjustable frequency	Stable frequency
	Off Power	Keep running in power off instantly
	Jog Key Function	Multi-function setting by Users
	Voltage Adjustment	Auto maintain output voltage stable in changing of power
	Failure Protection	25 types of failure protection: over current, over voltage, low voltage, over heat, short phase, over load, etc,
