Speed Sensor Pulse Signal Isolated Transmitter-Square Wave Signal Converter
| Price: |
Negotiable/Piece |
| Trade Terms: |
EXW |
| Min Order: |
2/Piece |
| Pay Type: |
T/T,Paypal,Western Union |
| Prod Model: |
ISO S-P-O Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Input: |
Speed Sensor Signal |
| Output Signal: |
0-5V Level, 0-12V Level, 0-24V Level |
| Power Supply: |
24V, 12V, 5V, 15V, etc. |
| Isolation: |
3kvdc |
| Installation: |
SIP 12pin Package |
| Usage: |
Acceleration Sensor, Position Sensor, Speed Sensor, Pressure Sensitive Sensor |
Product Description
Speed Sensor Pulse Signal Isolated Transmitter
ISO S-P-O Series
Speed Sensor Pulse Signal Isolated Transmitters Features:
. Speed sensor signal input directly, square wave signal output
. Sine wave, sawtooth wave signal input, square wave signal output
. 200mv peak weak signal amplification and shaping
. To maintain the original signal frequency, fast response
. Power supply, signal, input/output: 3000vdc three-port isolation
. Power supply: 5V/12V/15V/24V
. Low cost, ultra-small size, no need adjust, easy to use, high reliability
. Standard SIP12 pin, meet UL94V-0 flame-retardant package
. Industry temperature range: -45~+85 deg. C
Speed Sensor Singal Isolated Transmitter Applications:
. Speed sensor signal isolation, acquisition and transformation
. Locomotive speed measurement
. Auto ABS anti-lock braking system
. Speed signal amplification and shaping
. Motor speed control system
. CNC machine tool spindle speed measurement and alarm monitoring
. Transmission and transmission of the signal without distortion
Speed Sensor Signal Isolated Transmitter Specification:
ISO S-P-O Series Speed Sensor Signal Transmitter is a kind of isolation will speed sensor signal, sine wave, sawtooth wave signal or a weak signal isolation converted into fully consistent with the input frequency square wave signal hybrid integrated circuit. The product on the same chip integrates a group of multi-channel high-isolation DC / DC power supply, a high-performance signal isolation and

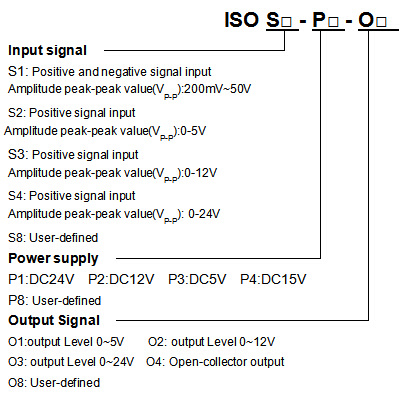

Signal amplification and shaping circuits. Especially suitable for the speed, sine wave signal isolation, etc. To convert the standard square wave pulse signal, the current velocity measurements in the automotive and automotive ABS anti-lock braking system widely used.Speed Sensor Signal Isolated Transmitter Model Selection:

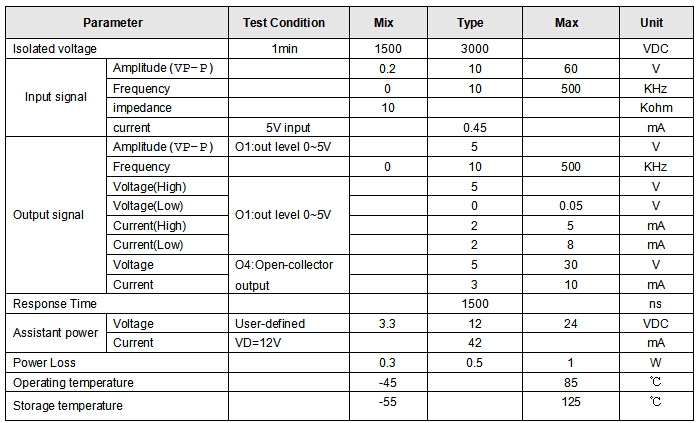

Speed Sensor Signal Isolated Transmitter Parameters:

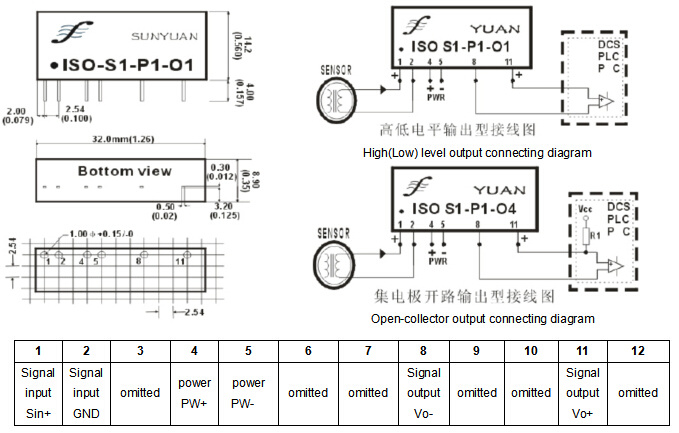

Speed Sensor Signal Isolated Transmitter Circuits:
Note: Please enquire us for detailed data sheet, thank you!
