| Prod Model: |
SY S-P-O |
| Model: |
Sy S-P-O |
| Input: |
Speed Sensor,Sine Wave, Sawtooth Wave Signal Input |
| Output: |
Square Wave |
| Isolation Method: |
Electromagnetic Isolation |
| Isolation Voltage: |
3000V |
| Main Circuit Type: |
Current |
| Application: |
PLC and Dcs or The Other Equipment Module Input at |
| Power Supply: |
5V/12V/15V/24V |
| Industrial Temperature: |
-25-70 Centigrade |
Product Description

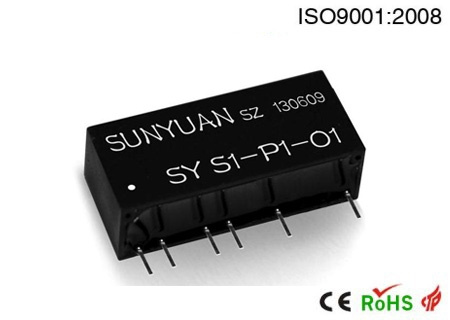

Speed Pulse Signal Converter IC Sine Wave Sawtooth Wave Signal Low Cost Dual Isolation Transmitter IC
SY S-P-O Series
Features
1)Speed sensor signal input directly, square wave signal output.
2)Sine wave, sawtooth wave signal input, square wave signal output.
3)200mV peak weak signal amplification and shaping.
4)Maintain the original signal frequency, fast response.
5) Power supply and signal channel 3000VDC Two-port Isolation
6)Power supply:5V/12V/15V/24V,etc.
7)Low cost, ultra-small size, no need to adjust, easy to use, high reliability
8) Standard SIP12 Pin, meet UL94V-0 flame-retardant package
9) Industry temperature range:-25~+70 deg.C
Applications
1)Speed sensor signal transformation.
2) Locomotive speed measurement.
3)Auto ABS anti-lock
4)Speed signal amplification
5)Motor Speed Control
6)CNC machine tool spindle and alarm monitoring.
7)Transmission and transmission without distortion.
| Max Rated Value: |
| instant isolated voltage value: 3000VDC |
| Auxiliary power supply input range: ±10%Vin |
| Welding temp.(10s): +300ºC |
| Input Voltage Single Max. ±50VP-P |
| Output Current Single Max. 5mA |
Notes: if input range is beyond above description, it may cause perpetual damage to the chips.
Model selection SY S-P-O
S1: Positive and negative signal input
Amplitude peak-peak value(VP-P):200mV~50V
S2: Positive signal input
Amplitude peak-peak value(VP-P):5V
S3: Positive signal input
Amplitude peak-peak value(VP-P):12V
S4: Positive signal input
Amplitude peak-peak value(VP-P): 24V
S8: User-defined
Power supply
P1:24VDC P2:12VDC P3:5VDC P4:15VDC
P8: User-defined
Output Signal
O1:Output Level 0~5V O2: Output Level 0~12V
O3: Output Level 0~24V O4: Open-collector output
O8: User-defined
Model selection examples:
E.g.1: Input signal: Car speed sensor, sine VP-P: 200mV ~ 10V, Output signal:0~5V level, Power supply:24V
Model No.: SY S1-P1-O1
