Spiral Wrapping Band for Electrical Wires (SWB10)

Name: Spiral Wrapping Band for Electrical Wires (SWB10)
Brand: all-electronics-online.com
SKU: 704902585
Availability: InStock
Rating: 4.5 (79 reviews)

Price:	US $ 0.46/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	10000/Meter
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SWB10
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Colour:	Black, White, etc
Raw Material:	PE
Pack:	100m/Roll
Model:	Swb
Application:	Winding Wire Coating Insulation
Chemistry:	Hybrid Insulation
Thermal Rating:	Y 90
Maximum Voltage:	<10KV
Type:	Electrical Wires Protective
Material:	PE

Product Description

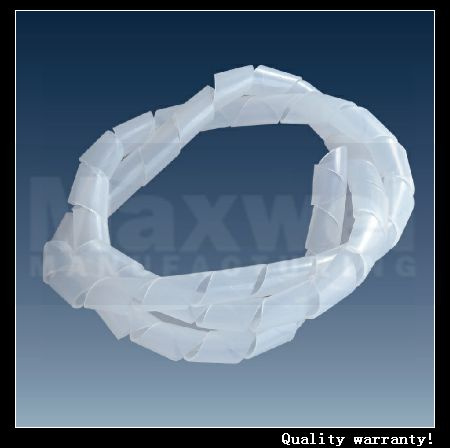

Spiral Wrapping Band

Material: Made from PE

Usage: Fix one end with safety belt first. Then circle the wires clockwise to make them tighten.

Application: A protection wear for electric wires, and make them insulation and look nice.

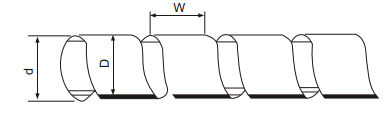

Ite mNo.	D (mm)	d (mm)	W (mm)	Wrapping Range (mm)	Packing
SWB-06	4	6	7.0	4-50	100M/ROLL
SWB-08	6	8	10.8	6-60
SWB-10	7.5	10	11.4	7.5-60
SWB-12	9	12	13.9	9-65
SWB-15	12	15	15.0	12-75
SWB-19	15	19	18.2	15-100
SWB-24	20	24	19.6	20-130
