Splice Closure
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
Splice Closure |
| Application: |
Medicine |
| Certification: |
ISO9001 |
Product Description

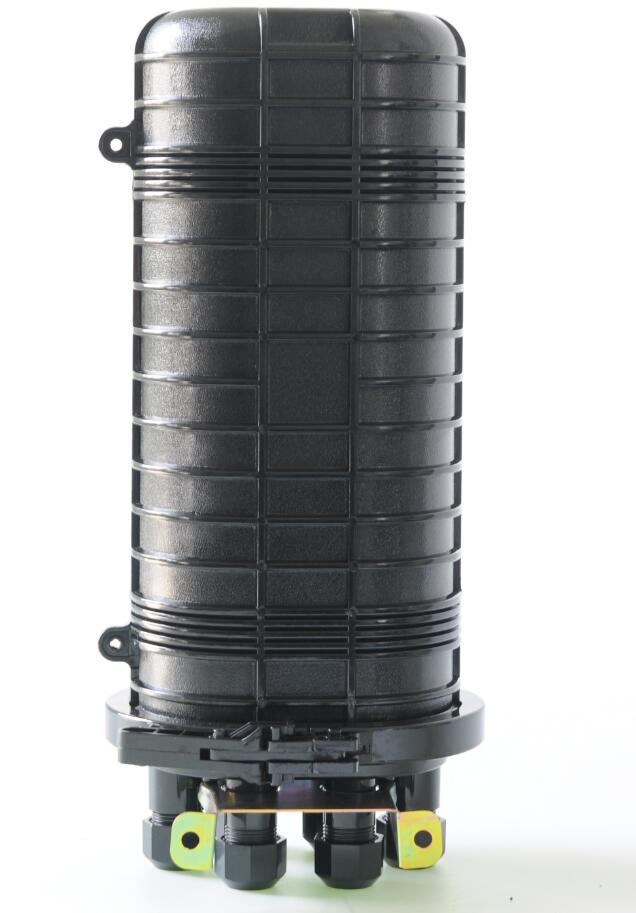

Splice Dome Closure
|
1. Scope of application
This Installation Manual suits for the Fiber Optic Splice Closure (Hereafter abbreviated as FOSC), as the guidance of proper installation.
The scope of application is: aerial, underground, pipeline, hand-holes. The ambient temperature ranges from -40 to 65ºC.
2. Basic structure and configuration
2.1 Dimension and capacity| Outside dimension (Height x Diameter) | 540mm×205mm | | Weight (excluding outside box) | 3000 g- 3600g | | Number of inlet/out ports | 4 pieces in general | | Diameter of fiber cable | Φ8mm~Φ36mm | | Capacity of FOSC | Bunchy:24-96 (cores), Ribbon: up to 288 (cores) |

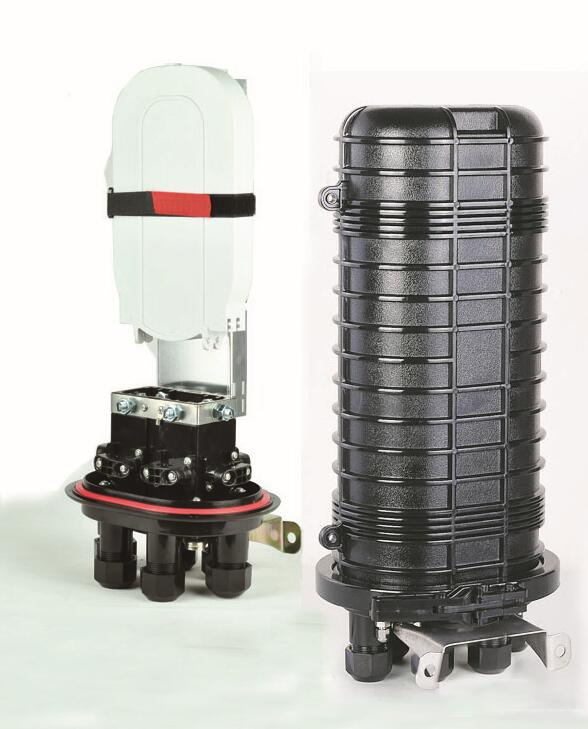

2.2 Main components| No. | Name of components | Quantity | Usage | Remarks | | 1 | FOSC cover | 1 piece | Protecting fiber cable splices in whole | Height x Diameter
450mm x 170mm | | 2 | Fiber optic splice tray (FOST) | Max. 4 trays (bunchy)
Max.: 4 trays (ribbon) | Fixing heat shrinkable protective sleeve and holding fibers | Suitable for:
Bunchy: 24(cores) Ribbon: 12 (pieces) | | 3 | Base | 1set | Fixing internal and external structure | | | 4 | Plastic hoop | 1 set | Fixing between FOSC cover and base | | | 5 | Seal fitting | 1 piece | Sealing between FOSC cover and base | | | 6 | Pressure testing valve | 1 set | After inject air, it is used for pressure testing and sealing testing | Configuration as per requirement | | 7 | Earthing deriving device | 1 set | Deriving metal parts of fiber cables in FOSC for earthing connection | Configuration as per requirement |

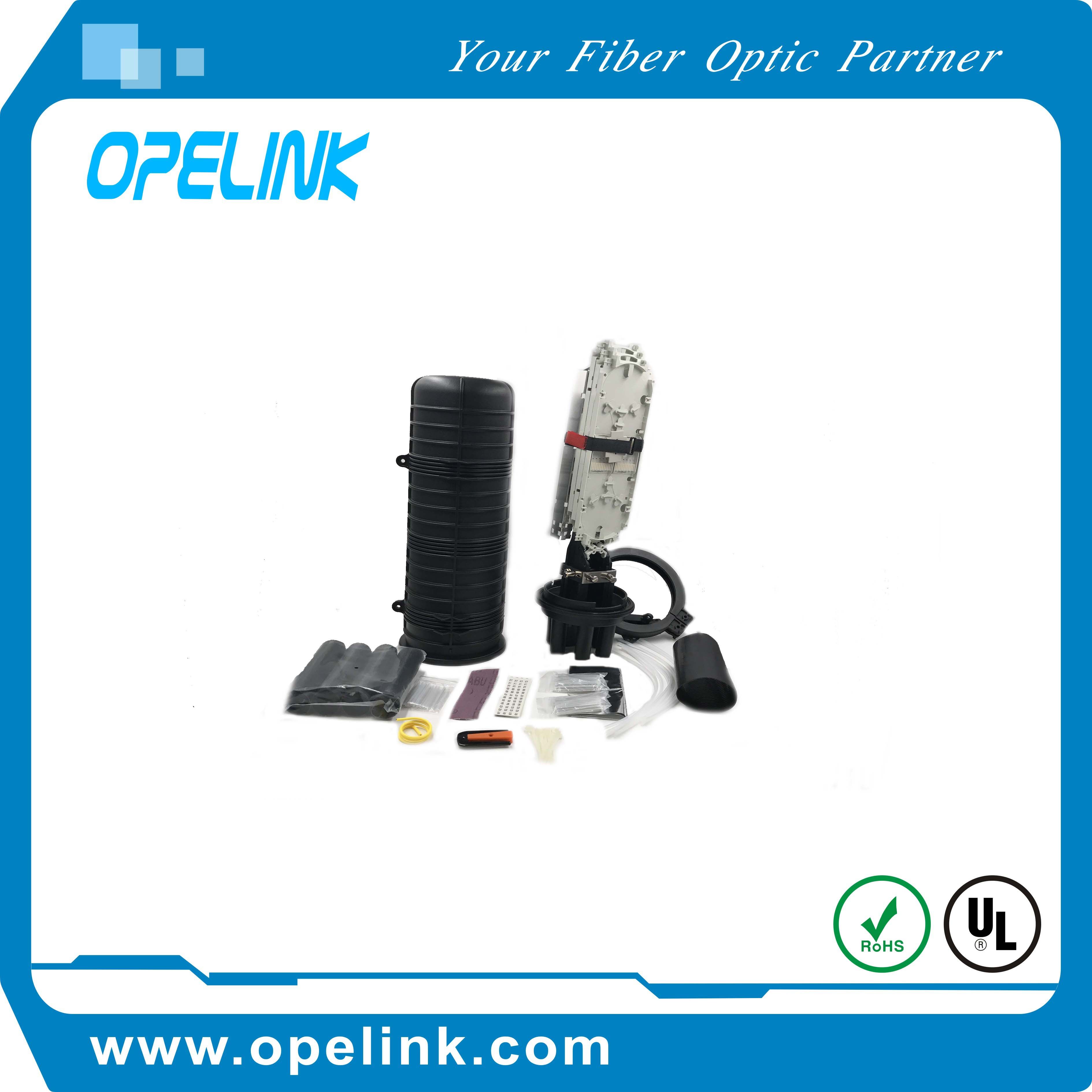

2.3 Main accessories and special tools| No. | Name of accessories | Quantity | Usage | Remarks | | 1 | Heat shrinkable protective sleeve | | Protecting fiber splices | Configuration as per capacity | | 2 | Nylon tie | | Fixing fiber with protective coat | Configuration as per capacity | | 3 | Heat shrinkable fixing sleeve (elliptical) | | Fixing and sealing single fiber cable | Configuration as per requirement | | 4 | Heat shrinkable fixing sleeve (circular) | | Fixing and sealing mass of fiber cable | Configuration as per requirement | | 5 | Branching clip | | Branching fiber cables | Configuration as per requirement | | 6 | Earthing wire | 1 piece | Putting through between earthing devices | | | 7 | Desiccant | 1 bag | Put into FOSC before sealing for desiccating air. | | | 8 | Labeling paper | 1 piece | Labeling fibers | | | 10 | Buffer tube
| decided by customers | Hitched to fibers and fixed with FOST, managing buffer. | Configuration as per requirement | | 11 | Aluminum foil paper | 1piece | To protect the bottom of closure and inlet/outlet tubes when heating heat shrinkable fixing sleeve with fire sprays | |
|
----------------------------------------------------FAQ---------------------------------------------------
Q1. Can I have a sample order for this product? What' MOQ of it?
A: Yes welcome send sample order for test. MOQ is 1 piece.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks.
Q3: What' s the payment term
A: We usually use TT(Telegram Transfer) in advance, Western Union. Other payment method is negotiable.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5: What' s the freight of it?
A: It depends on the order quantity. We have some reliable ship forwarders. We will offer cost effective method for you.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty according to different products.
Q7: What action will you take if there are some product problems?
A: If there are defective ones in the batch of products, we will offer spare ones for.
OPELINK Technology is a high-tech enterprise with a focus on the design and the production of optical communication and accessories. We are among the industry leaders here in China and we own that to our highly skilled and experienced production staff and engineers. We manufacture a complete selection of premium quality products including fiber optic splitters, optical WDM, fiber optic circulator and many other active optical components.
Every stage PF production in our workshop is carefully controlled, from raw material selection to assembly, packaging and transport. We do this to guarantee quality and ensure that all of our customers are satisfied with their delivery.
In addition to our products sold in China, we also do business in France, the United States, Brazil, Russia, and many other countries. So far we have cooperated with Ericsson (Spain), Vodafone (Hungary), etc.
Moreover, OPELINK employs a professional foreign team in which most of members have more than 5 years experience in optical communication equipment.
