Split 240VAC off Grid Hybird Solar Power DC to AC Inverter Controller Charger with Remote Control Function for Puerto Rico Market
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
| Prod Model: |
HP series |
| Line Mode Efficiency: |
>95% |
| Short Circuit Protection: |
Yes( 1sec After Fault ) |
| Display: |
Status LEDs / Status LEDs+LCD |
| Delivery Time: |
5-7days |
Product Description
Pure Sine Wave Inverter Charger Hanker Power Star Series 1KW-12KW (1ph in/1ph out)

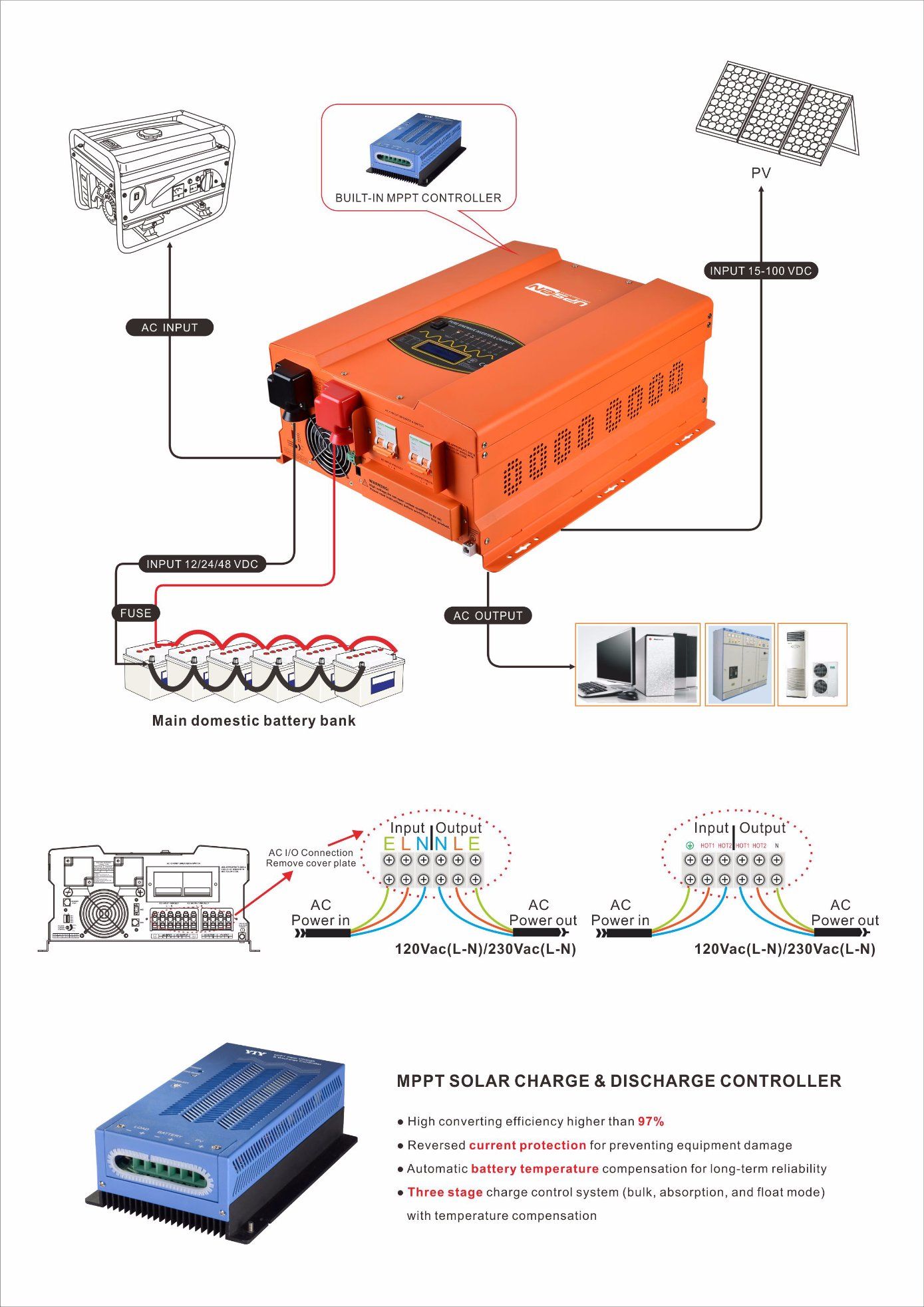

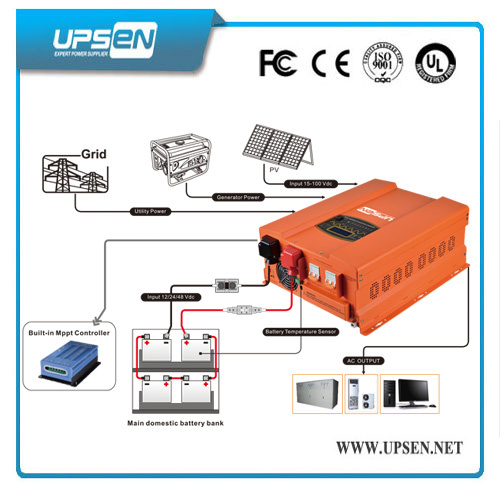

HP Series Pure Sine Wave Inverter is a combination of an inverter, charger, solar power and Auto-transfer switch into one complete system . It is packed with unique features and it is one of the most advanced inverter/chargers in the market today.
Key Features:

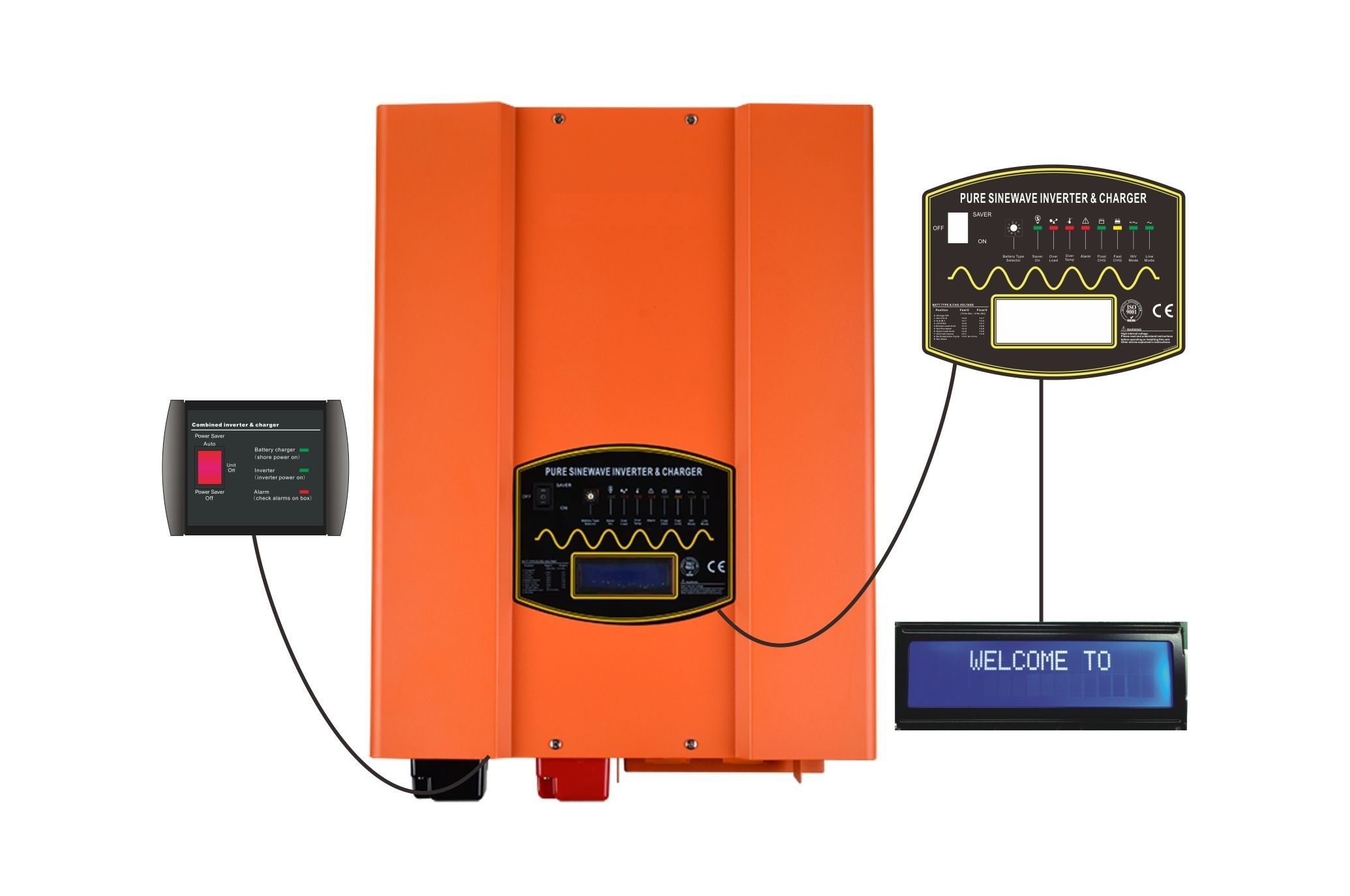

- Smart Remote Control (RMT).
- Battery Temperature Sensor (BTS).
- Automatic Generator Starting (AGS).
- Support Solar Panel with MPPT Function.
- Designed to Operate under Harsh Environment.
- DC Start & Automatic Self-Diagnostic Function.
- Compatible with Both Linear & Non-Linear Load.
- Easy to Install & Easy to Operate & Easy to Solve.
- Low DC Voltage Supports Home & Office Appliances.
- Powerful Charge Rate Up to 120Amp, Selectable From 0%-100%.
- High Efficiency Design & "Power Saving Mode" to Conserve Energy.
- Battery Priority Mode, Designates the Inverter-Preferred UPS Configuration.
- 13 Vdc Battery Recover Point, Dedicated for Renewable Energy Systems.
- 8 pre Set Battery Type Selector plus De-sulphation for Totally Flat Batteries.
- 4-step Intelligent Battery Charging, PFC (Power Factor Correction) for Charger.
- 8 ms Typical Transfer Time Between Utility & Battery, Guarantees Power Continuity.
- 15s Delay Before Transfer when AC Resumes, Protection for Load when Used with Generator.
Application
Home, office, Solar.
Technical Specification
| Model | HP1K | HP1.5K | HP2K | HP3K | HP4K | HP5K | HP6K | HP8K | HP10K | HP12K |
| Inverter Output | Continuous Output Power | 1.0KW | 1.5KW | 2.0KW | 3.0KW | 4.0KW | 5.0KW | 6.0KW | 8.0KW | 10.0KW | 12.0KW |
| Surge Rating(20s) | 3.0KW | 4.5KW | 6.0KW | 9.0KW | 12.0KW | 15.0KW | 18.0KW | 24.0KW | 30.0KW | 36.0KW |
| Output Waveform | Pure Sine wave/Same as input(Bypass Mode) |
| Nominal Efficiency | >88%(Peak) |
| Line Mode Efficiency | >95% |
| Power Factor | 0.9-1.0 |
| Nominal Output Voltage rms | 100-110-120Vac / 220-230-240Vac |
| Output Voltage Regulation | ±10% RMS |
| Output Frequency | 50Hz ± 0.3Hz/60Hz ± 0.3Hz |
| Short Circuit Protection | Yes( 1sec after fault ) |
| Typical transfer Time | 10ms(Max) |
| THD | < 10% |
| DC Input | Nominal Input Voltage | 12.0Vdc( *2 for 24Vdc, *4 for 48Vdc) |
| Minimum Start Voltage | 10.0Vdc |
| Low Battery Alarm | 10.5Vdc / 11.0Vdc |
| Low Battery Trip | 10.0Vdc / 10.5Vdc |
| High Voltage Alarm | 16.0Vdc |
| Low Battery voltage recover | 15.5Vdc |
| Idle Consumption-Search Mode | < 25 W when Power Saver On |
| Charger | Output Voltage | Depends on battery type |
| Charger Breaker Rating | 10A | 15A | 20A | 20A | 20A | 30A | 30A | 40A | 40A | 40A |
| Max Charge Power Rate | 1/3 Rating Power |
| Battery Initial Voltage | 10-15.7V for 12V( *2 for 24V, *4 for 48V) |
| for Start Up |
Over Charge Protection Shutdown | 15.7V for 12V (*2 for 24V, *4 for 48V) |
| Remote Control | Yes(Optional) |
| Bypass & Protection | Input Voltage Waveform | Sine wave (Grid or Generator) |
| Nominal Voltage | 110Vac | 120Vac | 220Vac | 230Vac |
| Max Input AC Voltage | 150VAC For 120Vac LV Mode;300VAC For 230Vac HV Mode; |
| Nominal Input Frequency | 50Hz or 60Hz (Auto detect) |
| Low Freq Trip | 47±0.3Hz for 50Hz, 57±0.3Hz for 60Hz |
| High Freq Trip | 55±0.3Hz for 50Hz, 65±0.3Hz for 60Hz |
Overload protection
(SMPS load) | Circuit breaker |
| Output Short circuit protection | Circuit breaker |
| Bypass breaker rating | 10A | 15A | 20A | 30A | 40A | 40A | 40A | 50A | 63A | 63A |
| Transfer switch rating | 30amp for UL & TUV | 40amp for UL | 80amp for UL |
Bypass without battery connected | Yes (Optional) |
| Max bypass current | 30amp | 40amp | 80amp |
| Solar Charger (Optional) | Rated Voltage | 12Vdc / 24Vdc / 48Vdc |
| Solar Input Voltage Range | 15-30Vdc / 30-55Vdc / 55-100Vdc |
| Rated Charge Current | 40 ~ 60A |
| Rated Output Current | 15A |
| Self Consumption | < 10mA |
| Bulk Charge | 14.5V(default) | (*2 for 24Vdc, *4 for 48Vdc) |
| Floating Charge | 13.5V(default) |
| Equalization Charge | 14.0V(default) |
| Over Charge Disconnection | 14.8V |
| Over Charge Recovery | 13.6V |
| Over DischargeDisconnection | 10.8 V(default) |
| Over DischargeReconnection | 12.3V |
| Temperature Compensation | -13.2mV/ºC |
| Ambient Temperature | 0 ~ 40ºC(Full load) 40 ~ 60ºC(Derating) |
| Mechanical Spec | Mounting | Wall Mount |
Inverter Dimensions
(L*W*H) | 388*415*200mm | 488*415*200mm | 588*415*200mm |
Inverter Weight
(Solar Chg)KG | 21+2.5 | 22+2.5 | 23+2.5 | 27+2.5 | 38+2.5 | 48+2.5 | 49+2.5 | 60+2.5 | 66+2.5 | 70+2.5 |
Shipping Dimensions
(L*W*H) | 550*520*310mm | 650*520*310mm | 750*520*310mm |
Shipping Weight
(Solar Chg)KG | 23+2.5 | 24+2.5 | 25+2.5 | 29+2.5 | 40+2.5 | 50+2.5 | 51+2.5 | 62+2.5 | 68+2.5 | 72+2.5 |
| Display | Status LEDs / Status LEDs+LCD |
| Standard Warranty | 3 Years (Optional) |
*Specifications change without further notice |
