Split Core AC Current Transformer Sct-0750

Name: Split Core AC Current Transformer Sct-0750
Brand: all-electronics-online.com
SKU: 719532555
Availability: InStock
Rating: 4.6 (31 reviews)

Price:	US $ 2.5-39/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	XH-SCT-0750
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	Split Core Current Transformer Xh-Sct-0750
Output:	0.33V or Ma
Certificates:	UL,CE,RoHS
Application:	Lighting
Phase:	Single
Type:	Split Core Current Transformer

Product Description

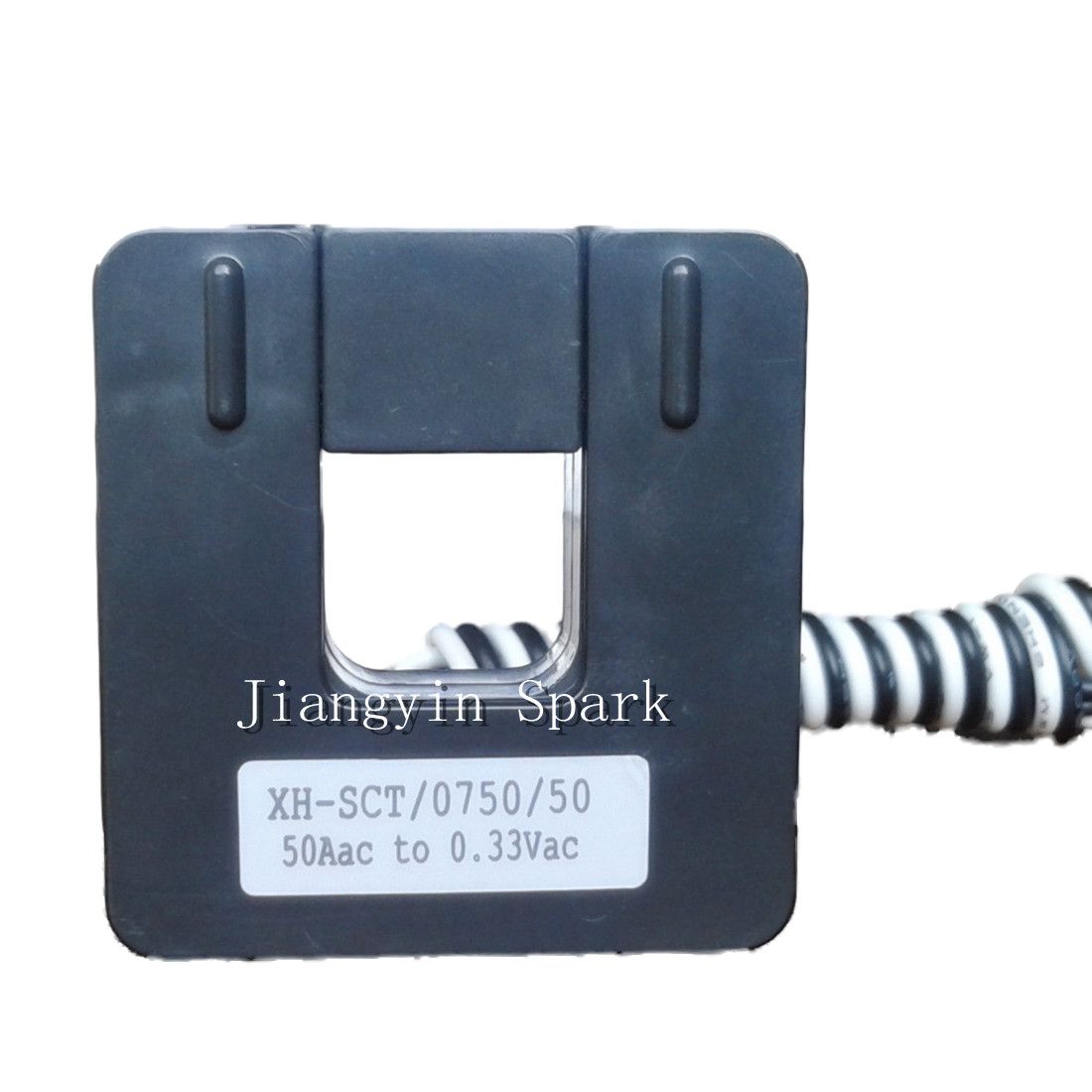

Split-Core AC Current Transformer SCT-0750
0.75" Opening measures from 5 to 200 AMPS

Description:
Jiangyin Spark SCT-0750 Series split-core current transformer"sense" AC current up to 200 AMPS passing through the center conductor. Split core CTs are designed for fast and easy installation. It permits non-contact current measurements through magnetic field induction without requiring that the primary wire be taken offline and disconnected for CT installation. This method permits a safer, easy and portable current measurement. An internal precision burden resistor across the secondary winding of the CT provides a safe low voltage output and permits safe opening of the secondary
Features:
Rated input: 5 AMP to 200 AMP
Output: 0.333 Volt at rated current
Phase angle: Less than 2 degrees at 50% of rated current
Frequency Range: 50 Hz to 400 Hz
Accuracy: ± 1% from 5% to 120% of rated current
Operating Temperature: -15º C to 60º C.
Insulation Voltage: 600VAC
Leads: 4Foot(105cm), UL 1015, Twisted Pair, 0.34 mm2(22AWG)
Maximum Primary Voltage: 5000VAC(Insulated Conductor)
UL recognized, CE and RoHS compliant
Output and leads can be customized

Application:
Measures AC current flow to electric motors, lighting, air conditioning equipment, etc. Compatible with HVAC temperature control, power management, building automation systems.

Model	Input(A)	Max currnet(A)	Output
XH-SCT-0750	50-200AAC	200	mA/0.333VAC/0-3 VAC

Dimensions:

Welcome to JIANGYIN SPARK

Jiangyin Spark Electronic Technology Co., Ltd. is a professional manufacturer in China devoted in research, design, and production of electromagnetic products. We commonly provide split core current transformer sensor, mini current transformer, and mini voltage transformer, but also develop and design all kinds of energy saving modules and instruments. The well trained production and QC staff can assure all the current transformers perfect performance.

Since the company is founded in 1995, we have registered many Invention and practical Utility Model patents. We have passed the ISO9001: 2008 quality management certification system and UL and CE certification. In 2010, our company was awarded the second prize of Jiangsu Province Engineering Industry Improvement Award, and won the title of Wuxi City High and New Technology Enterprise. Located near the Port of Shanghai, the domestic logistics cost can be effectively saved.

For all of our products, samples are provided for free, but the purchaser has to endure the freight. The delivery cycle is generally 1 or 2 weeks depending on the product models. We can design products according to your requirements. OEM is also available.

In the principle of unity, efficiency, development, and mutual benefit, we are striving to provide you with better services.
