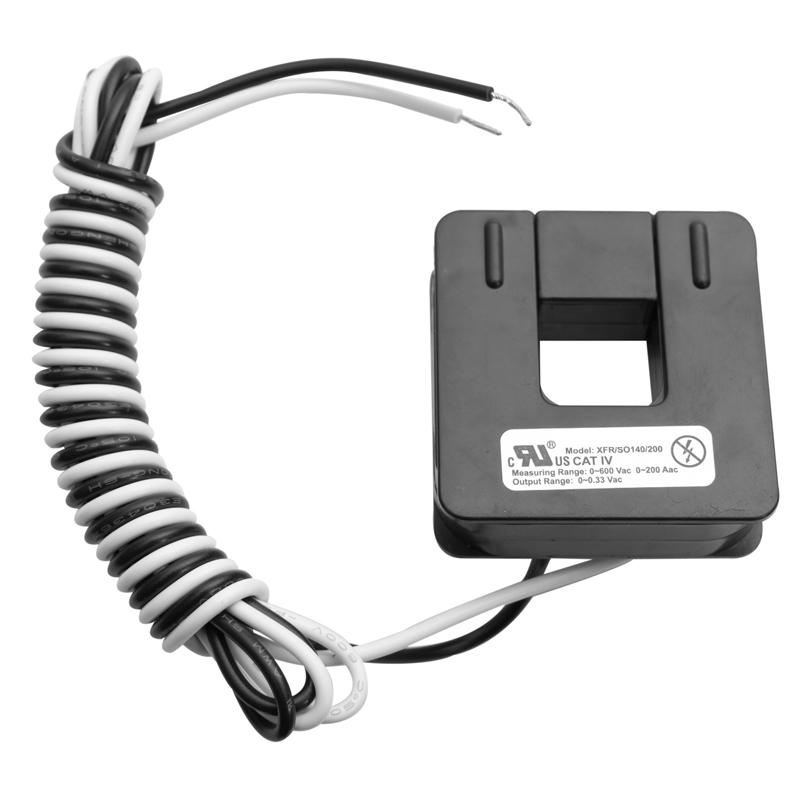

Split Core Clamp on Current Sensor

Name: Split Core Clamp on Current Sensor
Brand: all-electronics-online.com
SKU: 685626515
Availability: InStock
Rating: 4.6 (44 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	XH-SCT-0750
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Green
Installation:	DIN-Rail
Size:	12.699112.5
Galvanic Isolation:	2000VAC
Operation:	Hart-Protocol
Usage:	Test Temperature
Control Type:	with Hart Protocol
Material:	Plastic
Type:	Temperature Sensor
Display Type:	Without Display

Product Description

Split core Clamp on Current Sensor:
Features
Low cost
Split core design; Safer, easier installation, portable.

Specifications
Rated Current 5A to 3000A loads.
Rated output: 0.333VAC
Accuracy: ± 1% from 5% to 120% of rated current
Phase Angle: Less than 2 degrees at 50% of rated current
Insulation Voltage: 600VAC
Maximum Primary Voltage: 5000VAC(Insulated Conductor)
Operating Temperature: -15Cto 60C.
Frequency Range: 50-400Hz
Leads: 4Foot(105cm), UL 1015, Twisted Pair,
0.34 mm2(22AWG)
UL&CE recognized. RoHS Compliant
Output and leads can be customized

Application:
Measures AC current flow to electric motors, lighting, air conditioning equipment, etc. Compatible with HVAC temperature control, power management, building automation systems.

Model	I. D.	Rated Amps	Output	Accuracy	SIZE( mm )
Model	I. D.	Rated Amps	Output	Accuracy	A	B	C	D	E
XH-SCT-0750	0.75" (19.1mm)	5, 15, 30, 50, 70, 100, 150, 200	0.333V	1.0	51.6	54.1	16.6	19.1	18
XH-SCT-1250	1.25" (31.8mm)	70, 100, 150, 200, 250, 300, 400, 600		1.0	82.3	85.3	26.4	32	32.3
XH-SCT-2000	2.00" (50.8mm)	400, 600, 800, 1000, 1200, 1500		1.0	120	125	29.6	52.5	52
XH-SCT-3000	3.00" x 5.00" (76.2mm x127mm)	1000, 1200, 1500, 2000.3000		1.0	145	199	30.5	76	130

Welcome to JIANGYIN SPARK

Jiangyin Spark Electronic Technology Co., Ltd. is a professional manufacturer in China devoted in research, design, and production of electromagnetic products. We commonly provide split core current transformer sensor, mini current transformer, and mini voltage transformer, but also develop and design all kinds of energy saving modules and instruments. The well trained production and QC staff can assure all the current transformers perfect performance.

Since the company is founded in 1995, we have registered many Invention and practical Utility Model patents. We have passed the ISO9001: 2008 quality management certification system and UL and CE certification. In 2010, our company was awarded the second prize of Jiangsu Province Engineering Industry Improvement Award, and won the title of Wuxi City High and New Technology Enterprise. Located near the Port of Shanghai, the domestic logistics cost can be effectively saved.

For all of our products, samples are provided for free, but the purchaser has to endure the freight. The delivery cycle is generally 1 or 2 weeks depending on the product models. We can design products according to your requirements. OEM is also available.

In the principle of unity, efficiency, development, and mutual benefit, we are striving to provide you with better services.
