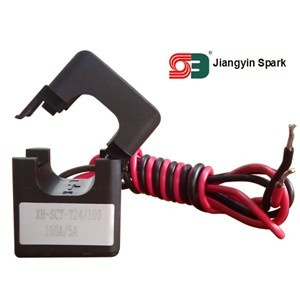

Split Core (clamp on) Current Transformer 1A or 5A Output 24mm Hole

Name: Split Core (clamp on) Current Transformer 1A or 5A Output 24mm Hole
Brand: all-electronics-online.com
SKU: 710362835
Availability: InStock
Rating: 5 (30 reviews)

Price:	US $ 5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	XH-SCT-T24B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Mode;:	Xh-Sct-T24b
Output:	1A ,5A
Accuracy:	0.5,1.0
Customers Requirements:	Available
Application:	Lighting
Type:	Current Transformer
Phase:	Single

Product Description

Indoor Split Core Current Transformer
Specification:
Maximum continuous primary current 100A to 300AAC
Output:1A or 5A at rated current
Accuracy: ± 1% 2VA
Indoor or Outdoor use,Outdoor type with rubber cover
Insulation Voltage: 600VAC
Maximum Primary Voltage: 5000VAC(Insulated Conductor)
Phase angle: Less than 2 degrees at 50% of rated current
Frequency Range: 50 Hz to 400 Hz
Operating Temperature: -15C to 60C.
Leads: 1.0 m cable
CE recognized, and RoHS compliant
Output and leads can be customized

Model	Input(A)	Output(A)	Overload current(A)	Accuracy(5%-120%)
Model	Input(A)	Output(A)	Overload current(A)	F(I)%	δ(I)°
XH-SCT-24B-100A/5A	100	5	160	≤1.5%	≤1.5°
XH-SCT-24B-150A/5A	150	5	240	≤1%	≤1°
XH-SCT-24B-200A/5A	200	5	320	≤1%	≤0.5°
XH-SCT-24B-250A/5A	250	5	420	≤1%	≤0.5°

Welcome to JIANGYIN SPARK

Jiangyin Spark Electronic Technology Co., Ltd. is a professional manufacturer in China devoted in research, design, and production of electromagnetic products. We commonly provide split core current transformer sensor, mini current transformer, and mini voltage transformer, but also develop and design all kinds of energy saving modules and instruments. The well trained production and QC staff can assure all the current transformers perfect performance.

Since the company is founded in 1995, we have registered many Invention and practical Utility Model patents. We have passed the ISO9001: 2008 quality management certification system and UL and CE certification. In 2010, our company was awarded the second prize of Jiangsu Province Engineering Industry Improvement Award, and won the title of Wuxi City High and New Technology Enterprise. Located near the Port of Shanghai, the domestic logistics cost can be effectively saved.

For all of our products, samples are provided for free, but the purchaser has to endure the freight. The delivery cycle is generally 1 or 2 weeks depending on the product models. We can design products according to your requirements. OEM is also available.

In the principle of unity, efficiency, development, and mutual benefit, we are striving to provide you with better services.
